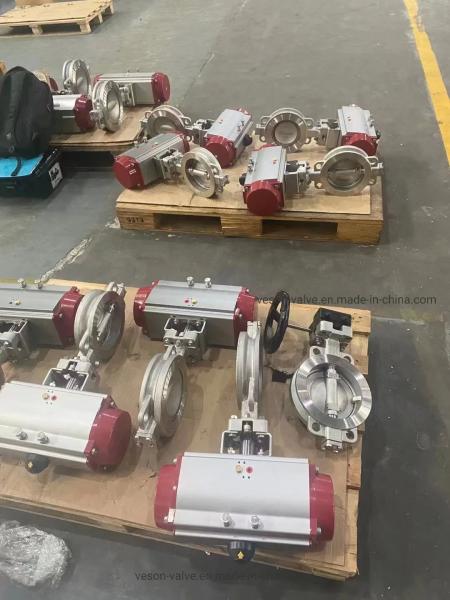

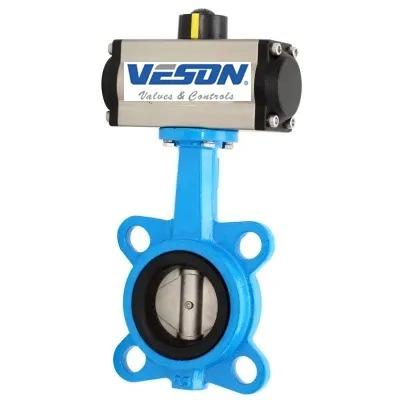

HP Series Stainless Steel Pneumatic Butterfly Valve 2-24 Inch

Specifications

MOQ :

Connection Form :

Lug Support

Structure :

Centre Sealing

Seal Form :

EPDM

Work Pressure :

Mid-Pressure (2.5mpa< Pn <6.4mpa)

Working Temperature :

Normal Temperature (-40°C

Seal Surface Material :

Soft Sealed

Valve Body :

Casting

Valve Size :

2 inch-24 inch

Pressure Class :

ANSI Class 125~150(PN10-PN16)

Temperature Range :

-196ºC~ 540ºC

Body Materials :

Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel

Disc Materials :

Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel, Al-Bronze

Seat Materials :

EPDM, NBR, VITON

End Connection :

Wafer, Lug, Double Flange

Design Standard :

API 609, BS 5155, EN593, DIN 3354

Description

_{Pneumatic Operated Wafer Lug High Performance Butterfly Valve are designed for critical applications in chemical, hydrocarbon processing, pulp & paper, water/wastewater and HVAC industries. They provide exceptionally long and trouble-free service life, reducing total cost of ownership. AEA BHP valves are rigorously tested to meet demanding industry performance requirements. High Performance Butterfly Valves are designed for shutoff and throttling control of liquids and gas. The dynamic PTFE seat provides bubble-tight shutoff in both directions. The single offset disc design provides lower torque and longer cycle life. NACE trim is available.
Product Range
-Valve size:
2" ~ 24" (DN50-DN1500)
-Pressure:
ANSI Class 125~150(PN10-PN16)
-Temperature:
320°F to 1000°F / -196ºC~ 540ºC
-Body Materials:
Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
-Disc Materials:
Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel, Al-Bronze
-Seat:
EPDM ,NBR,VITON
End connection: Wafer, Lug, Double Flange

Technical Specifications
-Design: API 609, BS 5155, EN593, DIN 3354
-Face to Face: ASME B16.34
-End Flange: ASME B16.5
-BW End: ASME B16.25
-Screwed End: ASME B1.20.1
-Test: ASME B16.34, API 598, DIN 3230
-Marking: MSS SP25
-Special: NACE MR-01-75

Design Features
-Lug, Wafer or Flange end
-Concentric design
-Bi-directional service
-Zero leakage
-Low torque
-Self cleaning
-Blowout-proof stem
-ISO 5211 top flange
-Optional extended stem design}
