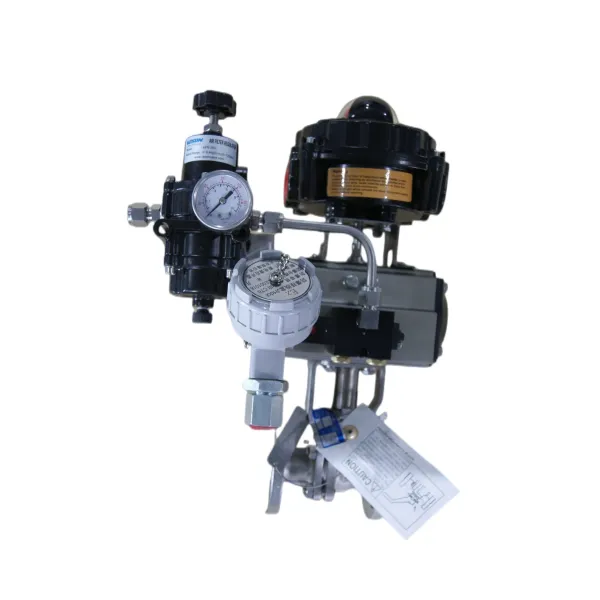

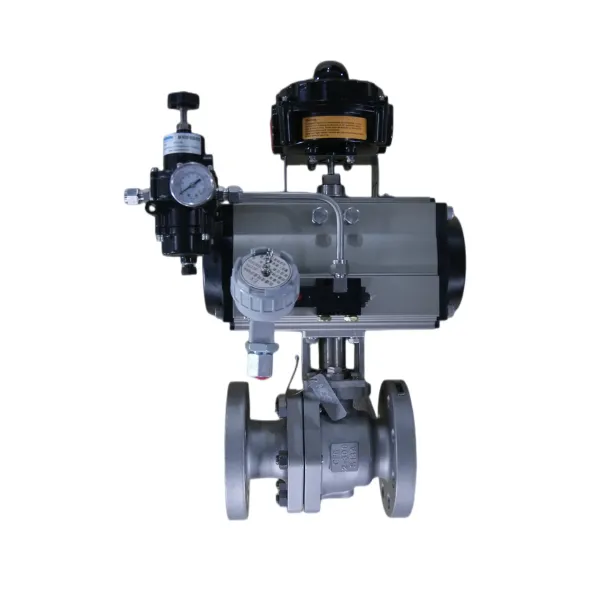

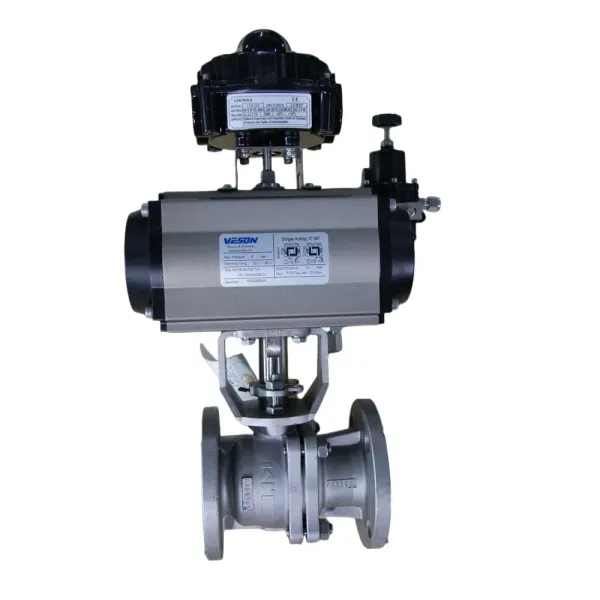

ANSI CLASS 150-900 316 Stainless Steel Full Port Pneumatic Flanged Ball Valve with ISO5211 Mounting

Specifications

Connection Form :

Flange

Driving Mode :

Pneumatic

Nominal Pressure :

ANSI CLASS 150-900

Channel :

Straight Through Type

Structure :

Floating Ball Valve

Type :

Floating Ball Valve

Function :

Blow-Down Valve, Relief Valve, Bypass-Valve

Temperature :

Normal Temperature

Application :

Industrial Usage

End Flange Dimension :

ASME B16.5

Test :

ASME B16.34

Transport Package :

Plywood Package

Specification :

1 inch-12 inch

Trademark :

VESON or Cusomer"s

Origin :

China

HS Code :

8481804090

Production Capacity :

50000PC / Y

MOQ :

Description

Veson air actuated ANSI 150# stainless steel flanged ball valves are designed for general chemical and industrial applications. Full port 2-piece designed investment cast valve direct mounts to the actuator with standard ISO5211 mounting pad. Double acting actuators use an air pressure signal (80-120 PSI) to open and close the valve. High temperature valve mounting kit available for extended temperature range or wall mounting applications. Ball valve can be mounted in any orientation. All valves are tested per API 598.

Ball Valve Standard Features

Full port for unrestricted flow

316 stainless steel body, ball and stem

Blow out proof stem

RTFE ball seats extend cycle life

Triple RTFE/Viton stem seal design, live loaded and adjustable

ISO5211 direct mounting

Anti-Static Design

Pneumatic Actuator Standard Features

Extended cycle life (1 million cycles)

Quarter turn rack & pinion design

Highly visible valve position indicator

Dry or lubricated pilot air

Factory lubricated for normal life

Anodized aluminum body with epoxy-polyester coated end covers

Namur & ISO mounting

Options (see Accessories tab)
