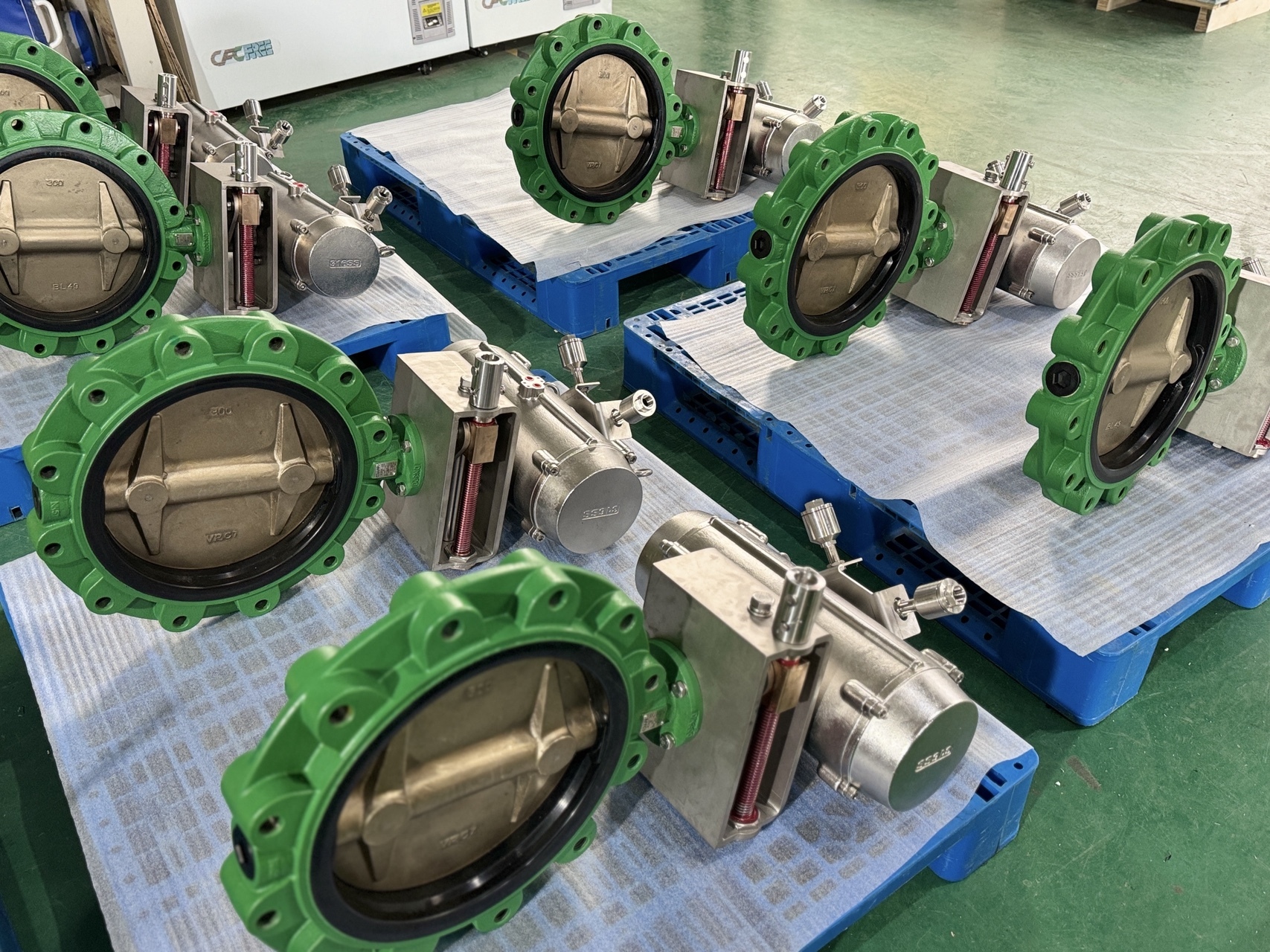

Double-Flanged ANSI 150lb Butterfly Valve Expertly Designed with PTFE Seat Remote Gear Transmission System
Double-Flanged ANSI 150lb Butterfly Valve Expertly Designed with PTFE Seat Remote Gear Transmission System
Double-Flanged ANSI 150lb Butterfly Valve Expertly Designed with PTFE Seat Remote Gear Transmission System
Double-Flanged ANSI 150lb Butterfly Valve Expertly Designed with PTFE Seat Remote Gear Transmission System
Double-Flanged ANSI 150lb Butterfly Valve Expertly Designed with PTFE Seat Remote Gear Transmission System
Double-Flanged ANSI 150lb Butterfly Valve Expertly Designed with PTFE Seat Remote Gear Transmission System
Specifications
Certification :
ISO 9001:2015 SGS
Size Range :
DN50 to DN500 (2" to 20")
Brand Name :
VESON
Packaging Details :
VESON branded plywood case with shock-proof foam insert, export-grade packaging
Operation :
Remote Gear Transmission with Floor Stand
Place of Origin :
Shanghai, China
Body Material :
Ductile Iron Epoxy Coated / SS316
Application :
Chemical Processing, Acid Handling, Corrosive Media
Payment Terms :
T/T,L/C,PayPal,Western Union
Disc Material :
PFA-Lined Ductile Iron / SS316 / Hastelloy
Certificate :
ISO 9001:2015, SGS
Seat Material :
PTFE / RTFE
Price :
USD 150-3500 / Piece
Delivery Time :
3-5 working days for stock, 15-25 days for production
Pressure Rating :
ANSI 150lb (PN16)
Supply Ability :
3000 Pieces per Month
Flange Standard :
ANSI B16.5 Class 150, Flanged Ends
Valve Type :
Double-Flanged Butterfly Valve
MOQ :
1 Piece
Description

Double-Flanged ANSI 150lb Butterfly Valve with PTFE Seat for Chemical Service

The VESON Double-Flanged ANSI 150lb Butterfly Valve with PTFE seat is purpose-built for chemical processing applications requiring full corrosion resistance. The double-flanged body design enables easy installation and removal from the pipeline, while the PTFE seat and PFA-lined disc provide universal chemical compatibility for aggressive acids, solvents, and corrosive media.

Key Features

  • Double-Flanged Design: Flanged ends on both sides for secure bolted installation with full gasket sealing, ideal for critical chemical lines
  • PTFE Seat: Universal chemical resistance with wide pH range (0-14) and temperature stability to +180°C
  • PFA-Lined Disc: Fully encapsulated disc eliminates metal-to-media contact for maximum corrosion protection
  • Remote Gear Transmission: Floor-stand mounted gear operator with extended spindle for safe operation away from chemical exposure zones
  • Blowout-Proof Stem: Anti-blowout stem design meets API 609 requirements for enhanced personnel safety

Technical Specifications

ParameterSpecification
Valve TypeDouble-Flanged Butterfly Valve
Size RangeDN50 to DN500 (2" to 20")
Pressure RatingANSI 150lb (PN16)
Body MaterialDuctile Iron Epoxy Coated / SS316
Disc MaterialPFA-Lined Ductile Iron / SS316 / Hastelloy
Seat MaterialPTFE / RTFE
Stem MaterialSS316 / Hastelloy C276
OperationRemote Gear Transmission with Floor Stand
Flange StandardANSI B16.5 Class 150
Operating Temperature-40°C to +180°C
CertificateISO 9001:2015, SGS

Target Applications

  • Sulfuric acid dilution and transfer
  • Hydrochloric acid handling systems
  • Solvent and monomer transfer lines
  • Chemical tank farm isolation
  • Chlor-alkali process piping

Each valve undergoes full factory hydrostatic and pneumatic seat testing. Complete chemical compatibility data and material certificates available upon request.
