Specifications
Brand Name :
SHAKO, AIRWOLF or OEM
Model Number :
TSV86522M, TSV86522S, TSV98322M, TSV98322S
Place of Origin :
Taiwan, China, China
MOQ :
1 piece
Price :
5-7USD
Payment Terms :
T/T,Western Union,Paypal
Supply Ability :
1000 pcs per week
Delivery Time :
1-7 work days
Packaging Details :
Boxes, Cartons, Pallets, Plastic bags
Item Code :
TSV86522M, TSV86522S, TSV98322M, TSV98322S
Operating Pressure :
0~0.8MPa
Working Temperature Range :
0~60℃
Port Size :
1/4"
Position :
3/2 way, 5/2 way
Function :
Directional Control
Description

TSV86522M SHAKO Series Hand-Pull Valve TSV86522S TSV98322M TSV98322S 5/2way, 3/2 way 1/4"

Features:

High strength and hardness.
Corrosion resistance and good flexibility.
Fittings connected securely and high voltage capability high, tightness and repetition is good.
Easy to install and maintain.
Durable in use.
Used for boiler and pressure vessel, petroleum, chemical, shipbuilding, pharmaceutical, metallurgy, machinery, food and other industries.
AS Series Anti corrosion anti reflux stop non return one way high pressure pneumatic control check valve for air compressor.

Order Codes:

Item Code Port size Position Type
TSV86522M 1/4" 5/2 way Mechanical Lock type
TSV86522S 1/4" 5/2 way Spring Reset type
TSV98322M 1/4" 3/2 way Mechanical Lock type
TSV98322S 1/4" 3/2 way Spring Reset type

Specification:

Model TSV86522M TSV86522S TSV98322M TSV98322S
Working Medium 40 Micron Filtered Air
Motion Pattern Direct Drive Type
Effective Sectional Area 18mm² (CV=1.00)
Joint Pipe Bore G1/4"
Working-pressure Range 0~0.8MPa
Operating Temperature 0~60℃

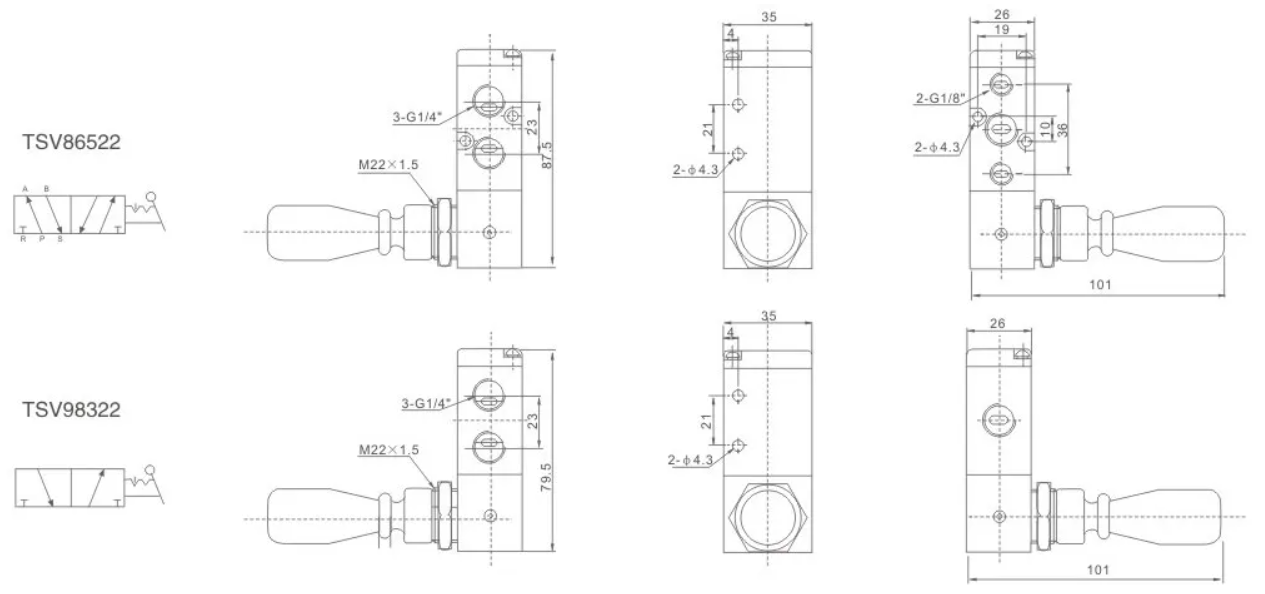

Dimensions:
TSV86522M SHAKO Series Hand-Pull Valve TSV86522S TSV98322M TSV98322S 5/2way, 3/2 way 1/4
Quality Standards:

The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount , but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance , according to the original quality standards , during warranty with product problems , need confirmation testing by the manufacturer , the supplier to be solved , the demand side due to storage , use, poor maintenance caused by lower-quality product , and not raise objections.

Samples:

You can send a sample to customize the products, we have many engineers can help it; If you want a product of mine, but you are not sure if it's what you want, so you can ask for a sample from me, it will be free.

After-sale service:

We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.

Competitive Advantage:
Our product features: Our Services Guarantee:
1) Competitive price 1) Prompt respond (Reply with 24 hours)
2) Good quality 2) Free Samples (Customer pay for the delivery cost)
3) Professional Packaging 3) 1 year warranty
4) Produce according to Customers’ instruction 4) Photos/videos are available during production.
5) None delay shipment 5) Loading inspection, and send loading photos before shipment.
