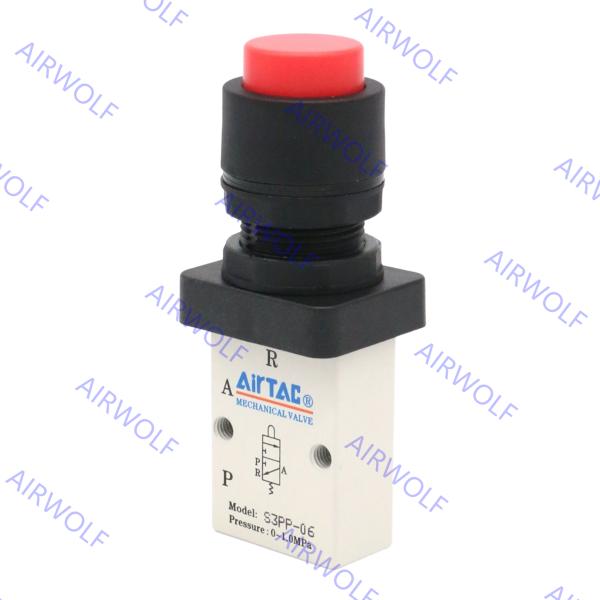

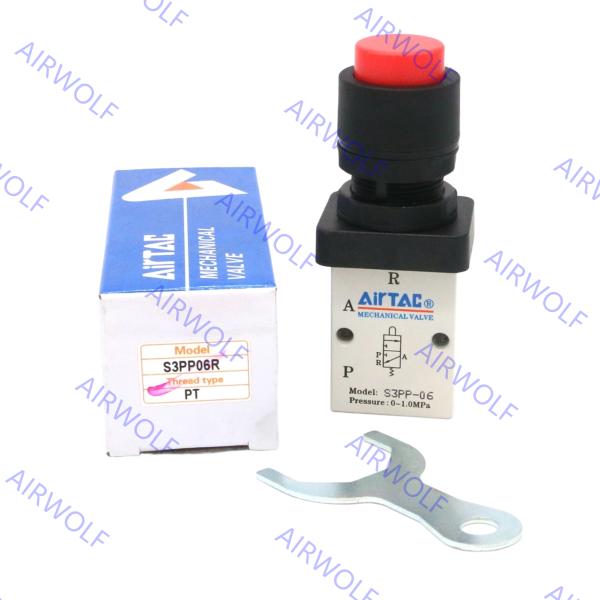

3/2 way S3PP-M5, S3PP-06, S3PP-08 AIRTAC S3 Series Control Valve M5 1/8 1/4
3/2 way S3PP-M5, S3PP-06, S3PP-08 AIRTAC S3 Series Control Valve M5 1/8 1/4
3/2 way S3PP-M5, S3PP-06, S3PP-08 AIRTAC S3 Series Control Valve M5 1/8 1/4
3/2 way S3PP-M5, S3PP-06, S3PP-08 AIRTAC S3 Series Control Valve M5 1/8 1/4
3/2 way S3PP-M5, S3PP-06, S3PP-08 AIRTAC S3 Series Control Valve M5 1/8 1/4
3/2 way S3PP-M5, S3PP-06, S3PP-08 AIRTAC S3 Series Control Valve M5 1/8 1/4
3/2 way S3PP-M5, S3PP-06, S3PP-08 AIRTAC S3 Series Control Valve M5 1/8 1/4
3/2 way S3PP-M5, S3PP-06, S3PP-08 AIRTAC S3 Series Control Valve M5 1/8 1/4
Specifications
Brand Name :
AIRTAC, AIRWOLF or OEM
Model Number :
S3PP-M5, S3PP-06, S3PP-08
Certification :
CE
Place of Origin :
Taiwan, China, China
MOQ :
1 piece
Price :
3-4USD
Payment Terms :
T/T,Western Union,Paypal
Supply Ability :
1000 pcs per week
Delivery Time :
1-7 work days
Packaging Details :
Boxes, Cartons, Pallets, Plastic bags
Item Code :
S3PP-M5, S3PP-06, S3PP-08
Type :
PP: Protruding Type
Body Material :
Aluminum Alloy
Working Temperature Range :
–20~+70℃
Function :
Directional Control
Working Medium :
Dry compressed air filtered by 40μm
Description

3/2 way S3PP-M5, S3PP-06, S3PP-08 AIRTAC S3 Series Control Valve M5 1/8" 1/4"

S3 Series can be used in tube-filling machines, packaging equipment, and assembly lines to control single-acting cylinders, serve as limit switches or for position verification in automated systems. Suitable for applications requiring simple on/off control, such as in automotive, food processing, and manufacturing industries.

Ordering code:

Type Port Size Positions
S3PP-M5 M5 3/2 way
S3PP-06 1/8" 3/2 way
S3PP-08 1/4" 3/2 way

Symbol:

3/2 way S3PP-M5, S3PP-06, S3PP-08 AIRTAC S3 Series Control Valve M5 1/8

Specification:

Model S3PP
Fluid Air (to be filtered by 40 µm filter element)
Operating External control direct acting type
Port size [Note1] M5:M5, 06:1/8", 08:1/4"
Orifice size 05:2.5 mm² (Cv=0.14), 06:8.0mm² (Cv=0.45), 08:12.0mm² (Cv=0.67)
Valve type 3/2 Way
Lubrication [Note2] Not required
Pressure range 0~1.0MPa(0~145psi)
Proof pressure 1.5MPa(215psi)
Temperature °C -20~70
Material of body Aluminum alloy

[Note1] PT thread, G thread and NPT thread are available.

[Note2] Once lubricated air is used, continue with same medium to optimise valve life span.
It is suggested to use ISO VG32 lubricant or the oil with the same grade.

Structure:

3/2 way S3PP-M5, S3PP-06, S3PP-08 AIRTAC S3 Series Control Valve M5 1/8

Dimension:

3/2 way S3PP-M5, S3PP-06, S3PP-08 AIRTAC S3 Series Control Valve M5 1/8

Quality Standards:

The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount , but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance , according to the original quality standards , during warranty with product problems , need confirmation testing by the manufacturer , the supplier to be solved , the demand side due to storage , use, poor maintenance caused by lower-quality product , and not raise objections.

Samples:

You can send a sample to customize the products, we have many engineers can help it; If you want a product of mine, but you are not sure if it's what you want, so you can ask for a sample from me, it will be free.

After-sale service:

We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.

Competitive Advantage:

Our product features: Our Services Guarantee:
1) Competitive price 1) Prompt respond (Reply with 24 hours)
2) Good quality 2) Free Samples (Customer pay for the delivery cost)
3) Professional Packaging 3) 1 year warranty
4) Produce according to Customers’ instruction 4) Photos/videos are available during production.
5) None delay shipment

5) Loading inspection, and send loading photos before shipment.
