XQ Series Aluminum Pneumatic Manual Valve with 1/8 Port Size NBR Seal for Directional Control
XQ Series Aluminum Pneumatic Manual Valve with 1/8 Port Size NBR Seal for Directional Control
XQ Series Aluminum Pneumatic Manual Valve with 1/8 Port Size NBR Seal for Directional Control
XQ Series Aluminum Pneumatic Manual Valve with 1/8 Port Size NBR Seal for Directional Control
XQ Series Aluminum Pneumatic Manual Valve with 1/8 Port Size NBR Seal for Directional Control
XQ Series Aluminum Pneumatic Manual Valve with 1/8 Port Size NBR Seal for Directional Control
XQ Series Aluminum Pneumatic Manual Valve with 1/8 Port Size NBR Seal for Directional Control
XQ Series Aluminum Pneumatic Manual Valve with 1/8 Port Size NBR Seal for Directional Control
XQ Series Aluminum Pneumatic Manual Valve with 1/8 Port Size NBR Seal for Directional Control
XQ Series Aluminum Pneumatic Manual Valve with 1/8 Port Size NBR Seal for Directional Control
XQ Series Aluminum Pneumatic Manual Valve with 1/8 Port Size NBR Seal for Directional Control
XQ Series Aluminum Pneumatic Manual Valve with 1/8 Port Size NBR Seal for Directional Control
Specifications
Brand Name :
SXPC AIRWOLF or OEM
Model Number :
XQ230421 XQ230621 XQ250421 XQ250621
Place of Origin :
CHINA
MOQ :
1 piece
Price :
5-10USD
Payment Terms :
T/T, Paypal, Western Union, Alibaba
Supply Ability :
1000 pcs per week
Delivery Time :
1-3 work days
Packaging Details :
plastic bags, carton, pallet
Body Material :
Aluminum
Seal Material :
NBR
Operating Pressure :
0-1.0MPa
Working Temperature Range :
-10~+60 ℃
Port Size :
1/8", 1/4"
Function :
Directional Control
Position :
3/2way, 5/2way
Working Medium :
Dry compressed air filtered by 40μm
Description

XQ Series Aluminum XQ230421 XQ250421 5/2 way, 3/2 way Pneumatic Manual Valves 1/4" 1/8"

Order Code:

Item Code Port Size Positions
XQ230421 1/8" 3/2 way
XQ250421 1/8" 5/2 way

The valves are manual direction control valves.They can be used to directly control cylinders or used as the signal valves of some pneumatic components.
There are many control types of the valves: push button, toggle lever, push-pull, foot pedal, hand control and hand rotary. Especially the emergency stop valve is used as the emergency stopper of pneumatic equipment due to its short switching stroke.

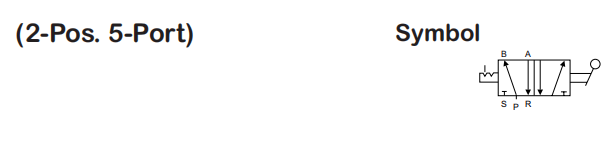

2-Pos. 3-Port, 2-Pos. 5-Port, 3-Pos. 4-Port, . The P and R ports can be exchanged so as to make the valve normally closed or open.

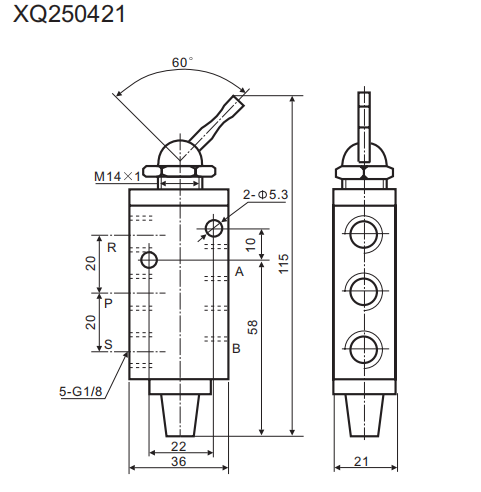

Dimensions:
XQ Series Aluminum Pneumatic Manual Valve with 1/8
XQ Series Aluminum Pneumatic Manual Valve with 1/8
XQ Series Aluminum Pneumatic Manual Valve with 1/8
XQ Series Aluminum Pneumatic Manual Valve with 1/8
