061B000066 061B000166 061B000266 DANFOSS Pressure Switch MBC5000/5100
061B000066 061B000166 061B000266 DANFOSS Pressure Switch MBC5000/5100
Specifications
Brand Name :
DANFOSS, AIRWOLF or OEM
Model Number :
061B000066, 061B000166, 061B000266
Place of Origin :
Poland, China
MOQ :
1 piece
Price :
130-190USD
Payment Terms :
Western Union,T/T,Paypal
Supply Ability :
1000 pcs per week
Delivery Time :
1-7 work days
Packaging Details :
Boxes, Cartons, Pallets, Plastic bags
Order Codes :
061B000066, 061B000166, 061B000266
Housing Material :
Stainless steel
Diaphragm Material :
FKM
Working Temperature Range :
-40~+85℃
Description
061B000066 061B000166 061B000266 DANFOSS Pressure Switch MBC5000/5100

MBC pressure switches are used in industrial and marine applications where space and reliability are the most important features. MBCs are compact pressure switches, designed according to our block design to survive in the harsh conditions known from machine rooms onboard ships. MBCs have high vibration resistance and MBC 5100 features all common marine approvals. The fixed, but low differential guarantees accurate monitoring of critical pressures. MBV test valves can be delivered as standard option for MBC.

Order Codes:

Item Code Type
061B000066 MBC 5100
061B000166 MBC 5100
061B000266 MBC 5100

Specification:

Performance
Repeatability Bellows versions ±0.2% FS (typ.)
±0.5% FS (max.)
Diaphragm versions ±0.5% FS (typ.)
±1.0% FS (max.)
Piston versions ±1.0% FS (typ.)
±1.0% FS (max.)
Max. switch frequency 10/min (0.16 Hz)
Differential See Figure: Customized types
Permissible operating pressure See Figure: Customized types
Burst pressure See Figure: Customized types
Lifetime Mechanical for diaphragm and bellows Mechanical for piston type Electrical at max. contact load >400,000 cycles
>1 million cycles
>100,000 cycles
Electrical specifications
Switch Utilization category SPDT
Contact load AC 15 0.5 A, 250 V
DC 13 12 W, 125 V
Mechanical characteristics
Pressure connection Standard G 1/4 female (ISO 228-1) or flange
Option See specification form Figure: Customized types
Electrical connection Plug DIN 43650, Pg 9 / Pg 11 / M20
Wetted parts material Housing Anodized AlMgSi1, AW-6082T6
Stainless steel 1.4306 (18/8), acc. to EN10088-3
Bellows Stainless steel 1.4306 (18/8), acc. to EN10088-2
Diaphragm FKM
Piston Stainless steel 1.4028 (3H13), acc. to EN10088-2
O-ring NBR
Hole plug (flange version) Nickel plated brass or zinc plated steel
Seal (piston version) Turcon T05
Enclosure material Housing Anodized AlMgSi1, AW-6082T6
Plug fixture Glass filled polyamid, PA 6.6
Contact system Silver (AG) micro profile
Net weight 0.25 kg

Environmental conditions:

Temperature Operation Bellows versions -40 – 85 °C
Diaphragm versions -10 – 85 °C
Piston versions -40 – 85 °C
Transport Bellows versions -50 – 85 °C
Diaphragm versions -50 – 85 °C
Piston versions -40 – 85 °C
Enclosure IP65, EN 60529
Vibration stability Sinusoidal 20 g, 25 – 2 kHz EN 60068-2-6
Piston type 4.4 g, 25 – 200 Hz IEC 60068-2-27

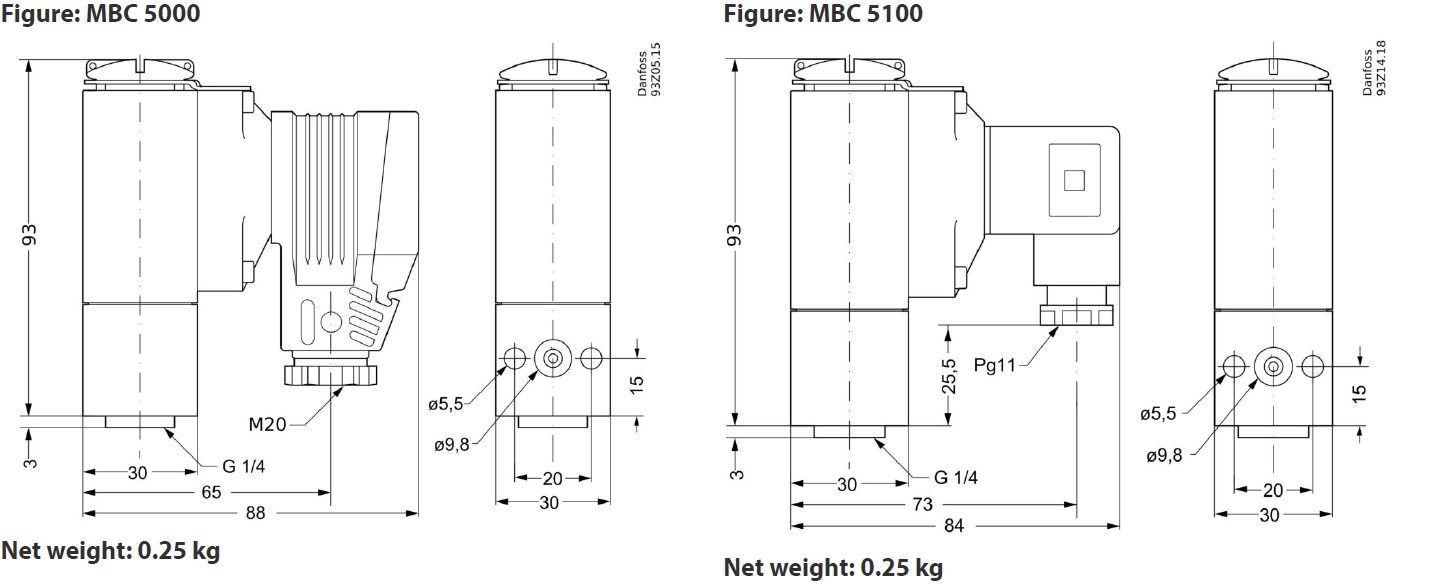

Dimensions:

061B000066 061B000166 061B000266 DANFOSS Pressure Switch MBC5000/5100


Our Company:
Airwolf Automation is a world-renowned supply chain management company. A complete supply chain with 500,000 industrial parts can be supplied to 160 countries.

More than a thousand cooperative brands, super supply chain management ability, to ensure the fastest speed to meet your procurement needs.

Delivery:
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNT will be normal ways. If you require use of a courier, we can do it.

Q&A:
1. Q: Do you provide warranty for the goods?
A: Yes, we provide warranty for all the goods from us.
2. Q: Could seek best provide technology support?
A: We're in this field more than 10 years. If there's any problem, please contact with us,we'll provide suggestion from our engineer to help you solve problem.
3. Q: Does seek best keeps goods in stock or only trading?
A: We have large warehouse for goods. Keep lots of goods in warehouse, so could promise fast delivery.
4. Q:How about the terms of payment?
A:Generally through T/T and Paypal,Western Union also accept.
