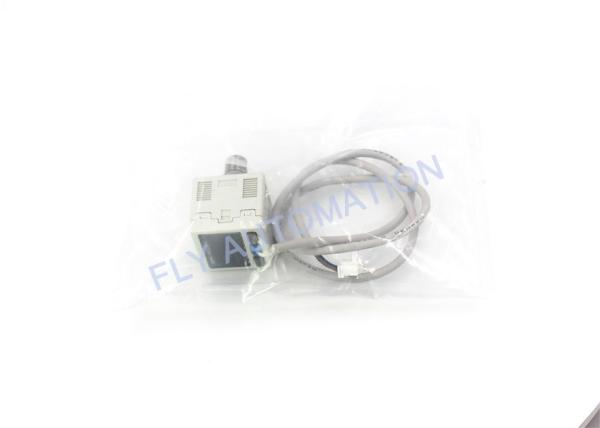

2 Color Display SMC Digital Pressure Switch ISE30A-01-N High Precision
2 Color Display SMC Digital Pressure Switch ISE30A-01-N High Precision
2 Color Display SMC Digital Pressure Switch ISE30A-01-N High Precision
2 Color Display SMC Digital Pressure Switch ISE30A-01-N High Precision
2 Color Display SMC Digital Pressure Switch ISE30A-01-N High Precision
2 Color Display SMC Digital Pressure Switch ISE30A-01-N High Precision
2 Color Display SMC Digital Pressure Switch ISE30A-01-N High Precision
2 Color Display SMC Digital Pressure Switch ISE30A-01-N High Precision
2 Color Display SMC Digital Pressure Switch ISE30A-01-N High Precision
2 Color Display SMC Digital Pressure Switch ISE30A-01-N High Precision
2 Color Display SMC Digital Pressure Switch ISE30A-01-N High Precision
2 Color Display SMC Digital Pressure Switch ISE30A-01-N High Precision
Specifications
Brand Name :
SMC
Model Number :
ISE30A-01-N
Certification :
ISO Standand
Place of Origin :
Japan
MOQ :
1 PC
Price :
USD25 Per Each
Payment Terms :
T/T, Western Union, MoneyGram Paypal
Supply Ability :
50 PCS Per Week
Delivery Time :
7-10 working Days
Packaging Details :
Box, Carton 13.5*6*3.5 CM
Maximum load current :
80 mA
Maximum applied voltage :
28 V (at NPN output)
Residual voltage :
1 V or less (with load current of 80 mA)
Short circuit protection :
Yes
Repeatability :
±0.2% F.S. ±1 digit
Display :
4-digit, 7-segment, 2-color LCD (Red/Green)
Display accuracy :
±2% F.S. ±1 digit (Ambient temperature of 25 ±3°C)
Indicator light :
Lights up when switch output is turned ON. OUT1: Green, OUT2: Red
Temperature :
±2% F.S. (25°C reference)
Standards :
CE, UL/CSA (E216656), RoHS
Description

SMC 2 Color Display High Precision Digital Pressure Switch ISE30A-01-N

Specifications
Model ZSE30A (Vacuum pressure) ZSE30AF (Compound pressure) ISE30A (Positive pressure)
Rated pressure range 0.0 to –101.0 kPa –100.0 to 100.0 kPa –0.100 to 1.000 MPa
Display/Set pressure range 10.0 to –105.0 kPa –105.0 to 105.0 kPa –0.105 to 1.050 MPa
Withstand pressure 500 kPa 500 kPa 1.5 MPa
Display/Minimum unit setting 0.1 kPa 0.1 kPa 0.001 MPa
Applicable fluid Air, Non-corrosive gas, Non-flammable gas
Power supply voltage 12 to 24 VDC ±10%, Ripple (p-p) 10% or less (with power supply polarity protection)
Current consumption 40 mA or less
Switch output NPN or PNP open collector 1 output, NPN or PNP open collector 2 outputs
Maximum load current 80 mA
Maximum applied voltage 28 V (at NPN output)
Residual voltage 1 V or less (with load current of 80 mA)
Response time 2.5 ms or less (with anti-chattering function: 20, 100, 500, 1000, 2000 ms)
Short circuit protection Yes
Repeatability ±0.2% F.S. ±1 digit
Hystere- sis Hysteresis mode Variable (0 or above) Note 1)
Window comparator mode
Analog output Note 2) Voltage output Output voltage (Rated pressure range) 1 to 5V ±2.5% F.S. 0.6 to 5 V ±2.5% F.S.
Linearity ±1% F.S.
Output impedance Approx. 1 kΩ
Note 3) Current output Output current (Rated pressure range) 4 to 20 mA ±2.5% F.S. 2.4 to 20 mA ±2.5% F.S.
Linearity ±1% F.S.
Load impedance Maximum load impedance: Power supply voltage 12 V: 300 Ω, Power supply voltage 24 V: 600 Ω
Minimum load impedance: 50 Ω
Display 4-digit, 7-segment, 2-color LCD (Red/Green)
Display accuracy ±2% F.S. ±1 digit (Ambient temperature of 25 ±3°C)
Indicator light Lights up when switch output is turned ON. OUT1: Green, OUT2: Red
Environ- ment Enclosure IP40
Operating temperature range Operating: 0 to 50°C, Stored: –10 to 60°C (No freezing or condensation)
Operating humidity range Operating/Stored: 35 to 85% RH (No condensation)
Withstand voltage 1000 VAC for 1 minute between terminals and housing
Insulation resistance 50 MΩ or more (500 VDC measured via megohmmeter) between terminals and housing
Temperature characteristics ±2% F.S. (25°C reference)
Lead wire with connector Oilproof heavy-duty vinyl cable, 3 cores ø3.5, 2 m
4 cores Conductor area: 0.15 mm2 (AWG26), Insulator O.D.: 1.0 mm
Standards CE, UL/CSA (E216656), RoHS
Part no. Option Note
ZS-38-A1 Bracket A Mounting screw (with 2 pcs. of M3 x 5L)
ZS-38-A2 Bracket B Mounting screw (with 2 pcs. of M3 x 5L)
ZS-38-A3 Bracket C Mounting screw (with 2 pcs. of M3 x 5L)
ZS-27-C Panel mount adapter Mounting screw (with 2 pcs. of M3 x 8L)
ZS-27-D Panel mount adapter + Front protection cover Mounting screw (with 2 pcs. of M3 x 8L)
ZS-27-01 Front protection cover
ZS-38-3L Lead wire with connector 3 cores, for 1 output, 2 m
ZS-38-4L Lead wire with connector 4 cores, for 2 outputs, 2 m
ZS-38-3G Lead wire with connector (with connector cover) 3 cores, for 1 output, 2 m
Part no. Option Note
ZS-38-4G Lead wire with connector (with connector cover) 4 cores, for 2 outputs, 2 m
ZS-38-5L Lead wire with a connector for copying 3 cores, copy function, 1 m
ZS-38-U Lead wire unit with a connector for copying Copy function (up to 10 slaves)
ZS-38-C4H One-touch fittings ø4 mm straight O-ring, one-touch clip included
ZS-38-C6H One-touch fittings ø6 mm straight O-ring, one-touch clip included
ZS-38-N7H One-touch fittings ø1/4 inch straight O-ring, one-touch clip included
ZS-38-C4L One-touch fittings ø4 mm elbow O-ring, one-touch clip included
ZS-38-C6L One-touch fittings ø6 mm elbow O-ring, one-touch clip included
ZS-38-N7L One-touch fittings ø1/4 inch elbow O-ring, one-touch clip included
Piping Specifications
Model 1 N01 C4H C6H N7H C4L C6L N7L
Port size R1/8
M5 x 0.8		 NPT1/8
M5 x 0.8		 — — — — — —
One-touch fitting, Straight type — — ø4 mm
ø5/32 inch		 ø6 mm ø1/4 inch — — —
One-touch fitting, Elbow type — — — — — ø4 mm
ø5/32 inch		 ø6 mm ø1/4 inch
Wetted parts material Sensor pressure receiving area Sensor pressure receiving area: Silicon
Piping port C3602 (electroless nickel plating) O-ring: HNBR PBT, POM, Stainless steel 304, C3604 (electroless nickel plating) O-ring: NBR
Weight Including lead wire with connector (3 cores, 2 m) 81 g 70 g 71 g 73 g 75 g 73 g 75 g
Including lead wire with connector (4 cores, 2 m) 85 g 74 g 75 g 77 g 79 g 77 g 79 g
Excluding lead wire with connector 43 g 32 g 33 g 35 g 37 g 35 g 37 g
