Specifications
Brand Name :
FESTO
Model Number :
NPQH-D-Q10-E-P10
Place of Origin :
China
MOQ :
1 PCS
Price :
EXW USD3-5
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
2000 pcs per week
Delivery Time :
7-10 working days
Packaging Details :
plastic bag, carton
Specifications :
NPQH-D-Q10-E-P10
Order no :
578326
Brand :
FESTO
Size :
Standard
Size of pack :
10
Product weight :
23 g
Description

Festo Connector NPQH-D-Q10-E-P10 578326 Pneumatic Tube Fittings

About product

All metal push-in fitting made of chemically nickel-plated brass

High corrosion resistance CRC3 and chemical resistance

For pneumatic applications with a temperature range up to 150 °C and a pressure range up to 20 bar.

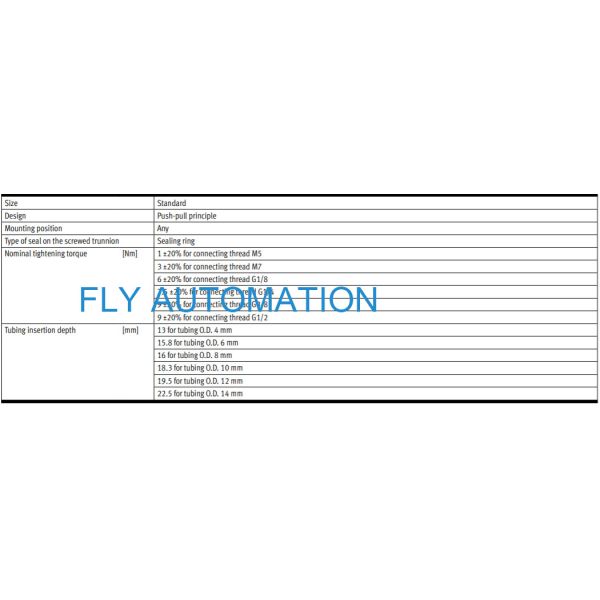

Product Technical Data

Size Standard
Nominal size 9 mm
Tubing insertion depth 18.3 mm
Design Straight design
Size of pack 10
Design Push-pull principle
Symbol 00997424
Corrosion resistance class CRC 3 - high corrosion stress
LABS (PWIS) conformity VDMA24364-B1/B2-L
Cleanroom class Class 4 according to ISO 14644-1
Ambient temperature 0°C-150°C
Product weight 22.8 g
Pneumatic connection, port 1 For tubing outer diameter of 10 mm
Pneumatic connection, port 2 For tubing outside diameter of 10 mm
Note on materials RoHS-compliant
Material housing Brass, chemically nickel-plated
Guard ring material PEI
Material release ring Brass, chemically nickel-plated
Material tubing seal FPM
Material tubing clamp component High-alloy stainless steel
Thrust ring material PEI

General technical data

Festo Connector NPQH-D-Q10-E-P10 Pneumatic Tube Fittings 578326
