G1/8 529424 Festo Pressure Regulator MS4-LR-1/8-D6-AS-Z GTIN4052568085124
G1/8 529424 Festo Pressure Regulator MS4-LR-1/8-D6-AS-Z GTIN4052568085124
G1/8 529424 Festo Pressure Regulator MS4-LR-1/8-D6-AS-Z GTIN4052568085124
G1/8 529424 Festo Pressure Regulator MS4-LR-1/8-D6-AS-Z GTIN4052568085124
G1/8 529424 Festo Pressure Regulator MS4-LR-1/8-D6-AS-Z GTIN4052568085124
G1/8 529424 Festo Pressure Regulator MS4-LR-1/8-D6-AS-Z GTIN4052568085124
G1/8 529424 Festo Pressure Regulator MS4-LR-1/8-D6-AS-Z GTIN4052568085124
G1/8 529424 Festo Pressure Regulator MS4-LR-1/8-D6-AS-Z GTIN4052568085124
Specifications
Brand Name :
FESTO
Model Number :
MS4-LR-1/8-D6-AS-Z
Place of Origin :
China
MOQ :
1pc
Price :
EXW USD50-60
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
500 pcs per month
Delivery Time :
7-10working days
Packaging Details :
Plastic bag, Carton
Part no :
529424
Type :
MS4-LR-1/8-D6-AS-Z
Brand :
FESTO
Weight :
225g
Pneumatic connection, port 1 :
G1/8
Pneumatic connection, port 2 :
G1/8
Description

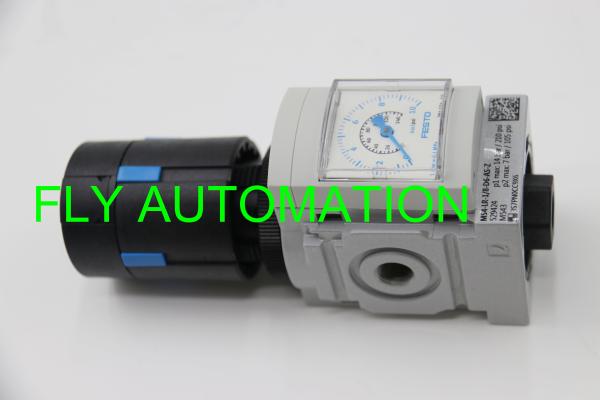

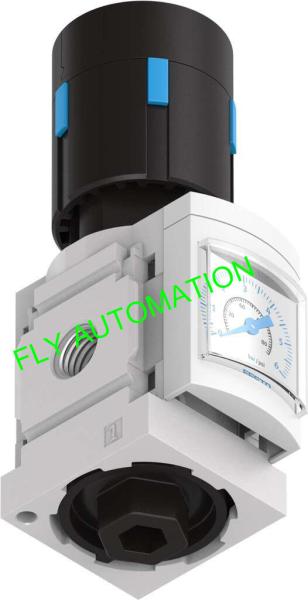

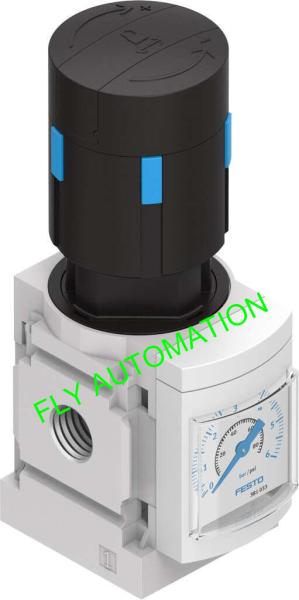

FESTO Pressure regulator MS4-LR-1/8-D6-AS-Z 529424 GTIN4052568085124

About product

Grid dimension 40mm

High flow rate performance with minimal pressure drop

Good control characteristics with minimal pressure hysteresis and primary pressure compensation

Technical Data

Size 4
Series MS
Actuator lock Rotary knob with detent can be closed with accessories
Mounting position optional
Design Directly actuated diaphragm regulator
Symbol 00991558
Operating pressure 0.8 bar ... 14 bar
Pressure regulation range 0.3 bar ... 7 bar
Max. pressure hysteresis 0.25 bar
Standard nominal flow rate 1150 l/min
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4] Inert gases
Corrosion resistance class CRC 2 - Moderate corrosion stress
LABS (PWIS) conformity VDMA24364-B1/B2-L
Storage temperature -10°C-60°C
Media temperature -10°C-60°C
Ambient temperature -10°C-60°C
Product weight 225 g
Pneumatic connection, port 1 G1/8
Pneumatic connection, port 2 G1/8
Note on materials RoHS-compliant
Material sub-base Die-cast aluminium
Material control panel PA POM
Material seals NBR
Material housing Die-cast aluminium
Material membrane NBR
