Specifications
Place of Origin :
Taiwan, China, China
Brand Name :
Sunrise, Nielsen, AIRWOLF or OEM
Model Number :
HV-02, HV-03, HV-04, HV400-02, HV400-03, HV400-04
MOQ :
1 piece
Price :
5-6USD
Packaging Details :
Boxes, Cartons, Pallets, Plastic bags
Delivery Time :
1-7 work days
Payment Terms :
T/T,Western Union,Paypal
Supply Ability :
1000 pcs per week
Item Code :
HV-02, HV-03, HV-04, HV400-02, HV400-03, HV400-04
Body Material :
Aluminum Alloy
Seals Material :
NBR
Operating Pressure :
0~1.0MPa
Working Temperature Range :
–20~+70℃
Port Size :
1/4", 3/8", 1/2"
Position :
4/3 way
Function :
Directional Control
Description
HV-02, HV-03, HV-04, HV400-02, HV400-03, HV400-04 Sunrise Nielsen HV Series 4/3 way Hand Rotary Valve 1/4", 3/8", 1/2"
The HV Series, including models HV-02, HV-03, HV-04, HV400-02, HV400-03, and HV400-04, are 4/3-way (four-port, three-position) manual pneumatic directional control valves. These valves are operated by rotating a handle to switch the flow path of compressed air, making them ideal for controlling double-acting actuators like pneumatic cylinders. Key specifications across the series include a standard operating pressure range of 0 to 0.8 MPa (with some models rated up to 1.0 MPa) and a temperature range of -5°C to 60°C. The model number typically indicates the port size; for example, HV-02 and HV400-02 feature G1/4" ports, HV-03 and HV400-03 feature G3/8" ports, while HV-04 and HV400-04 are equipped with larger G1/2" ports, corresponding to increased flow capacities.
Order Codes:
Type Port Size Positions
HV-02 1/4" 4/3 way
HV-03 3/8" 4/3 way
HV-04 1/2" 4/3 way
HV400-02 1/4" 4/3 way
HV400-03 3/8" 4/3 way
HV400-04 1/2" 4/3 way
Symbol:

HV-02, HV-03, HV-04, HV400-02, HV400-03, HV400-04 Sunrise Nielsen HV Series 4/3 way Hand Rotary Valve 1/4

Specification:
Model HV-02 HV-03 HV-04 HV400-02 HV400-03 HV400-04
Valve type 4/3 Way
Fluid Air (To be filtered by 40μm filter element)
Maximum operating pressure 1~8kgf/cm³
Maximum pressure 12kgf/cm³
Temperature -20~70℃

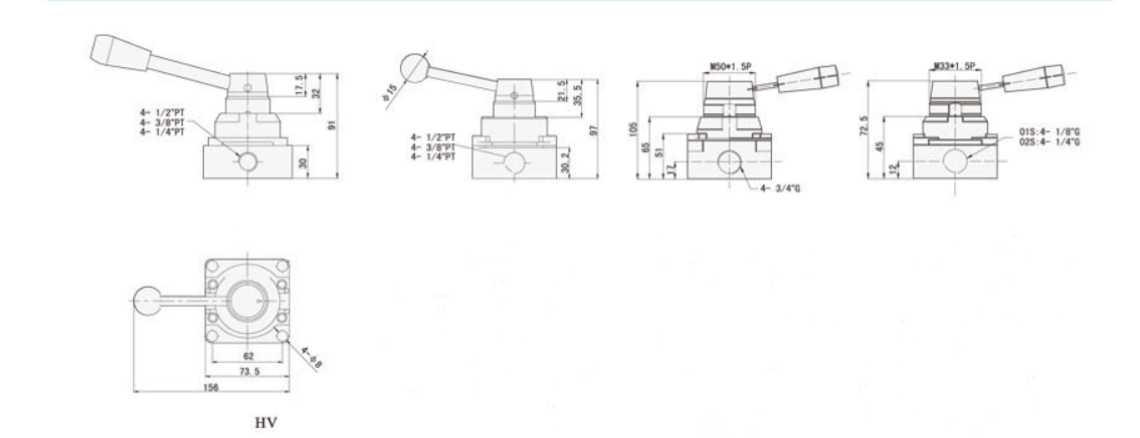

Dimensions:
HV-02, HV-03, HV-04, HV400-02, HV400-03, HV400-04 Sunrise Nielsen HV Series 4/3 way Hand Rotary Valve 1/4
Quality Standards:
The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount , but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance , according to the original quality standards , during warranty with product problems , need confirmation testing by the manufacturer , the supplier to be solved , the demand side due to storage , use, poor maintenance caused by lower-quality product , and not raise objections.
Samples:
You can send a sample to customize the products, we have many engineers can help it; If you want a product of mine, but you are not sure if it's what you want, so you can ask for a sample from me, it will be free.
After-sale service:
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
Competitive Advantage:
Our product features: Our Services Guarantee:
1) Competitive price 1) Prompt respond (Reply with 24 hours)
2) Good quality 2) Free Samples (Customer pay for the delivery cost)
3) Professional Packaging 3) 1 year warranty
4) Produce according to Customers’ instruction 4) Photos/videos are available during production.
5) None delay shipment 5) Loading inspection, and send loading photos before shipment.
