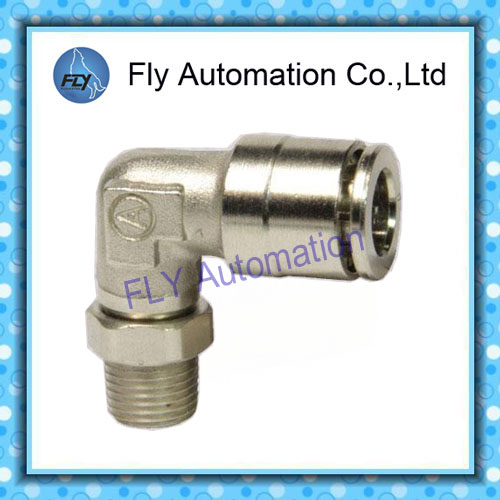

90 degree right angle can be rotated Pneumatic Tube Fittings PL series
90 degree right angle can be rotated Pneumatic Tube Fittings PL series
Specifications
Place of Origin :
China
Brand Name :
Fly
Certification :
CE
Model Number :
PL series
MOQ :
1 peice
Price :
USD2-5
Packaging Details :
Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement
Delivery Time :
within 1-30 working days after payment
Payment Terms :
T/T , paypal, Western Union,Credit card
Supply Ability :
1000pcs
Description

90 degree right angle can be rotated Pneumatic Tube Fittings PL series

1.Housing material:H 59 nickel plated copper

2.Max working pressure:230PSI

3.Working Ambient temperature:-20℃ to +120℃

4.Button structure:Camozzi type automatic machining cutting slotting structure

5.Working medium:Water,compressed air,oil,etc.

6.Weight:25g

Characteristics:

NBR seal material , material density no leakage and longer life. Release ring slotted structure , automatic processing, swap easier. Difficult to form a scratch on the tube surface. Toggle / right-angle bends and tees are 360 degree rotatable structure.High temperature, high pressure , corrosion-resistant , anti-UV , appearance.

Model
DN- screw thread(R) DB-screw thread(R) DN- screw thread(NPT)
PL 04-M5 PL 06-04 PL 12-02 PL1/8-01 PL5/16-02 PL1/8-N01 PL1/4-N04 PL1/2-N03
PL 04-M6 PL 08-01 PL 12-03 PL1/8-02 PL5/16-03 PL1/8-N02 PL5/16-N01 PL1/2-N04
PL 04-01 PL 08-02 PL 12-04 PL3/16-01 PL5/16-04 PL5/32-N01 PL5/16-N02 　
PL 04-02 PL 08-03 PL 16-03 PL3/16-02 PL3/8-01 PL5/32-N02 PL5/16-N03 　
PL 06-M5 PL 08-04 PL 16-04 PL3/16-03 PL3/8-02 PL3/16-N01 PL5/16-N04 　
PL 06-M6 PL 10-01 　 PL1/4-01 PL3/8-03 PL3/16-N02 PL3/8-N01 　
PL 06-01 PL 10-02 　 PL1/4-02 PL3/8-04 PL3/16-N03 PL3/8-N02 　
PL 06-02 PL 10-03 　 PL1/4-03 PL1/2-02 PL1/4-N01 PL3/8-N03 　
PL 06-03 PL 10-04 　 PL1/4-04 PL1/2-03 PL1/4-N02 PL3/8-N04 　
　 　 　 PL5/16-01 PL1/2-04 PL1/4-N03 PL1/2-N02

　
