Specifications
Brand Name :
AIRTAC AIRWOLF or OEM
Model Number :
4L110-06, 4L210-06, 4L210-08, 4L310-08, 4L310-10
Certification :
CE , ISO9001
Place of Origin :
Taiwan, China, China
MOQ :
1 piece
Price :
2-4USD
Payment Terms :
T/T,Western Union,Paypal
Supply Ability :
1000 pcs per week
Delivery Time :
1-7 work days
Packaging Details :
Boxes, Cartons, Pallets, Plastic bags
Item Code :
4L110-06, 4L210-06, 4L210-08, 4L310-08, 4L310-10
Body Material :
Aluminum Alloy
Operating Pressure :
0~1.0MPa
Working Temperature Range :
-20~+70°C
Port Size :
1/8", 1/4", 3/8"
Position :
5/2 way
Fuction :
Directional Control
Working Medium :
Dry compressed air filtered by 40μm
Description

4L110-06, 4L210-06/08, 4L310-08/10 AIRTAC 4L Series 5/2 way Manual Push-pull Valve 1/8", 1/4", 3/8"

Order Codes:
Type Port Size Positions
4L110-06 1/8" 5/2 way
4L210-06 1/8" 5/2 way
4L210-08 1/4" 5/2 way
4L310-08 1/4" 5/2 way
4L310-10 3/8" 5/2 way
Specification:
Model 4L110-06 4L210-06 4L210-08 4L310-08 4L310-10
Fluid Air (to be filtered by 40 μm filter element)
Operating Manual control direct acting type)
Port size[Note1] 1/8" 1/4" 3/8"
Orifice size(Cv)
[Note3]		 10.2mm²
(Cv=0.6)		 4L210-08:17.0mm²
(Cv=1.0)		 4L310-10:28.0mm²
(Cv=1.65)
Valve type 5/2 Way
Lubrication [Note2] Not required
Pressure range 0~1.0MPa(0~145psi)
Proof pressure 1.5MPa(215psi)
Temperature -20~70℃
Material of body Aluminum alloy

[Note1] PT thread, G thread and NPT thread are available;

[Note2] Once lubricated air is used, continue with same medium to optimise valve life spanIt is suggested to use ISo VG32 lubricant or the oil with the same grade.

[Note3] Eguivalent orifice S and Cv are all calculated from the flow rate data.

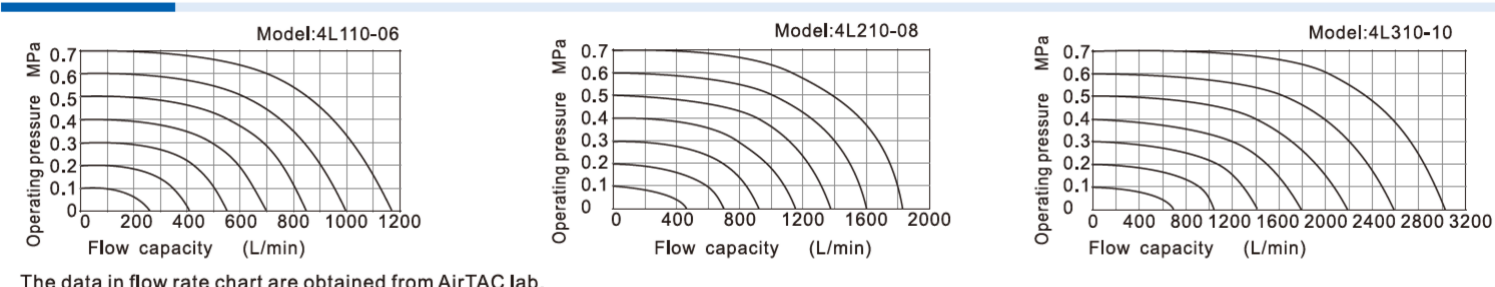

Flow Chart:

4L110-06, 4L210-06/08, 4L310-08/10 AIRTAC 4L Series 5/2 way Manual Push-pull Valve 1/8

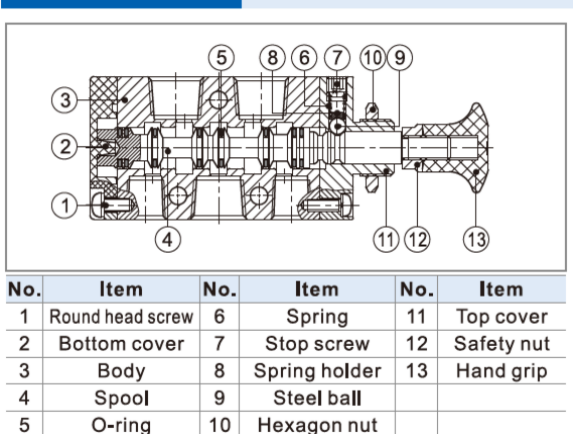

Structure:

4L110-06, 4L210-06/08, 4L310-08/10 AIRTAC 4L Series 5/2 way Manual Push-pull Valve 1/8

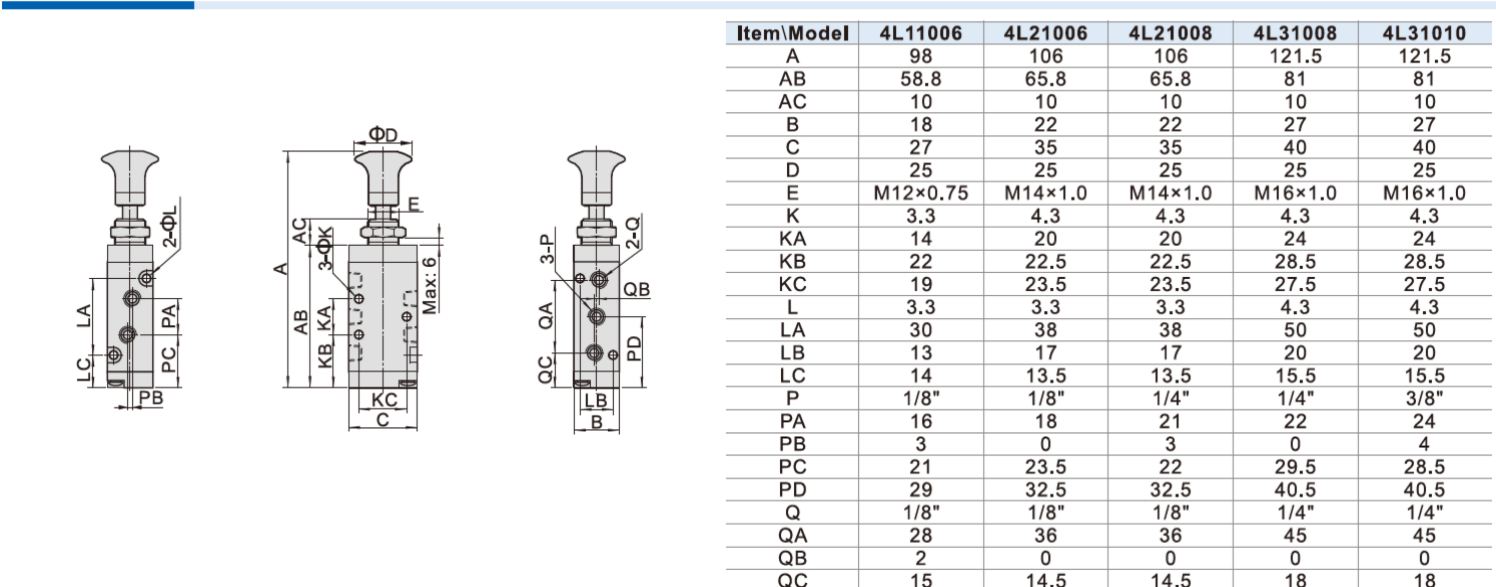

Dimensions:

4L110-06, 4L210-06/08, 4L310-08/10 AIRTAC 4L Series 5/2 way Manual Push-pull Valve 1/8

Quality Standards:

The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount , but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance , according to the original quality standards , during warranty with product problems , need confirmation testing by the manufacturer , the supplier to be solved , the demand side due to storage , use, poor maintenance caused by lower-quality product , and not raise objections.

Samples:

You can send a sample to customize the products, we have many engineers can help it; If you want a product of mine, but you are not sure if it's what you want, so you can ask for a sample from me, it will be free.

After-sale service:

We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.

Competitive Advantage:
Our product features: Our Services Guarantee:
1) Competitive price 1) Prompt respond (Reply with 24 hours)
2) Good quality 2) Free Samples (Customer pay for the delivery cost)
3) Professional Packaging 3) 1 year warranty
4) Produce according to Customers’ instruction 4) Photos/videos are available during production.
5) None delay shipment 5) Loading inspection, and send loading photos before shipment.
