Specifications
Brand Name :
Techno
Model Number :
MOV-01, MOV-02, MOV-03, MOV-03A
Certification :
CE
Place of Origin :
Taiwan, China, China
MOQ :
1 piece
Price :
2-3USD
Payment Terms :
T/T,Western Union,Paypal
Supply Ability :
1000 pcs per week
Delivery Time :
1-7 work days
Packaging Details :
Boxes, Cartons, Pallets, Plastic bags
Item code :
MOV-01, MOV-02, MOV-03, MOV-03A
Body Material :
Aluminum alloy
Seal Material :
NBR
Fluid temperature :
0~70℃
Position :
3/2 way
Function :
Directional Control
Description

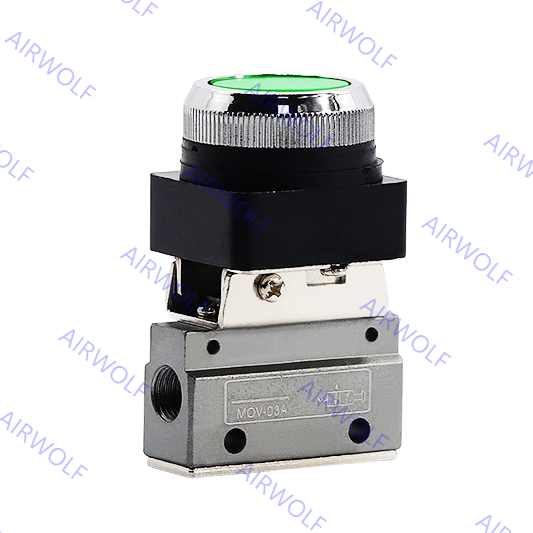

MOV-01, MOV-02, MOV-03, MOV-03A Sunrise 3/2 way MOV Series Mechanical Valves

The MOV series stands out for its diversity of actuator options and robust construction, making it suitable for direct human or machine interaction. Key models like the MOV-01 (selector button), MOV-02 (roller lever), and MOV-03 (locking button) provide flexibility for different operational needs, all while sharing common port sizes like G1/8". These valves act as fundamental input components in pneumatic control systems, prized for their simple structure, stable performance, and long service life. They are engineered for precise direction control, often processed by CNC machines, and are applicable in a wide range of fields from factory automation to agricultural irrigation systems due to their large flow capacity and high working frequency.

Order Codes:
Item Code Port Size Positions Button Type
MOV-01 1/8" 3/2 way Selective Knob
MOV-02 1/8" 3/2 way Roller Type
MOV-03 1/8" 3/2 way With Lock Button
MOV-03A 1/8" 3/2 way Plat Round Button
Specifications:
Model MOV-01 MOV-02 MOV-03 MOV-03A
Working Medium 40 Micron Filtered Air
Position and Way NO. Two-position Three-way
Joint Pipe Bore G1/8"
Working-pressure Range 0~0.8MPa
Operating Temperature 0~70℃


Dimensions:

MOV-01, MOV-02, MOV-03, MOV-03A Sunrise 3/2 way MOV Series Mechanical Valves


Quality Standards:

The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount , but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance , according to the original quality standards , during warranty with product problems , need confirmation testing by the manufacturer , the supplier to be solved , the demand side due to storage , use, poor maintenance caused by lower-quality product , and not raise objections.

Samples:

You can send a sample to customize the products, we have many engineers can help it; If you want a product of mine, but you are not sure if it's what you want, so you can ask for a sample from me, it will be free.

After-sale service:

We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.

Competitive Advantage:
Our product features: Our Services Guarantee:
1) Competitive price 1) Prompt respond (Reply with 24 hours)
2) Good quality 2) Free Samples (Customer pay for the delivery cost)
3) Professional Packaging 3) 1 year warranty
4) Produce according to Customers’ instruction 4) Photos/videos are available during production.
5) None delay shipment 5) Loading inspection, and send loading photos before shipment.
