ZJQH-1.5×30B Juling Man Ridding Winch with Emergency Stop Device
ZJQH-1.5×30B Juling Man Ridding Winch with Emergency Stop Device
ZJQH-1.5×30B Juling Man Ridding Winch with Emergency Stop Device
ZJQH-1.5×30B Juling Man Ridding Winch with Emergency Stop Device
ZJQH-1.5×30B Juling Man Ridding Winch with Emergency Stop Device
ZJQH-1.5×30B Juling Man Ridding Winch with Emergency Stop Device
Specifications
Brand Name :
Juling
Model Number :
As Specified in the data
Certification :
API,ISO
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
T/T
Delivery Time :
Stock
Packaging Details :
Wooden Box
Certifications :
CE, ISO
Control Method :
Remote Control
Frequency :
50Hz
Usage :
Lifting in Oilfield
Material :
Steel
Color :
Yellow Orange or other Colors
Safety Features :
Emergency Stop Button, Overload Protection
Warranty :
12 Months
Description

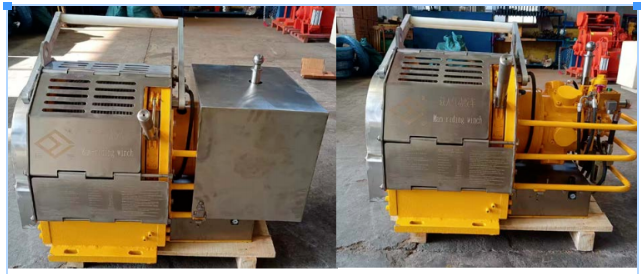

ZJQH-1.5×30B Juling Man Ridding Winch with Emergency Stop Device

Product Description:

The Manriding Winch is a specialized lifting device designed for safe personnel transport in oil drilling and production facilities. It is primarily used to lift workers to and from elevated structures such as derricks, platforms, and offshore rigs.

Designed with redundancy and safety as top priorities, the Manriding Winch ensures secure vertical transport of personnel in hazardous environments. Unlike cargo winches, it undergoes strict load testing and requires regular certification to guarantee worker protection at height.

Technical Specifications:

  • 额定提升力 Rated lifting force 1.5KN;

    提升速度 Lifting speed    		 0~30m/min;
    钢丝绳直径(mm)
    Steel rope diameter(mm)    		 φ 10mm
    容绳量 Wire capacity (D=10mm) 150m
    外形尺寸(长×宽×高) mm
    Overall dimensions(Length ×Width ×Height) mm    		 750×800×700
    气动马达
    Pneumatic Motor    		 功率 Rated power(kW) 2.6kW
    工作进气压力
    Pressure of compress air(MPa)    		 0.25-0.8MPa
    最大耗气量 ax. air consumption ≤5m3/min
    制动形式 Break type 内置全盘式断气制动+手动带式辅助制动
    Built-in entire disc CAAB + Band hand break
    重量 weight(kg) 350
    安全措施
    Security measures    		 1. 急停止装置 Ergency stop device；
     2．断气制动装置 Barely able to brake.
     3. 限位装置Limit Switches;
     4. 紧急释放Mergency Lowering；
     5. 过载保护装置 Over load protection device；
     6. 松绳保护装置Slack Line Detector；
