Man Riding Winch With Overload Protection Model ZJQH-1.5×30B
Man Riding Winch With Overload Protection Model ZJQH-1.5×30B
Man Riding Winch With Overload Protection Model ZJQH-1.5×30B
Man Riding Winch With Overload Protection Model ZJQH-1.5×30B
Man Riding Winch With Overload Protection Model ZJQH-1.5×30B
Man Riding Winch With Overload Protection Model ZJQH-1.5×30B
Specifications
Brand Name :
Juling
Model Number :
As Specified in the data
Certification :
API,ISO
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
T/T
Delivery Time :
Stock
Packaging Details :
Wooden Box
Certifications :
CE, ISO
Control Method :
Remote Control
Frequency :
50Hz
Usage :
Lifting in Oilfield
Material :
Steel
Color :
Yellow Orange or other Colors
Safety Features :
Emergency Stop Button, Overload Protection
Warranty :
12 Months
Description

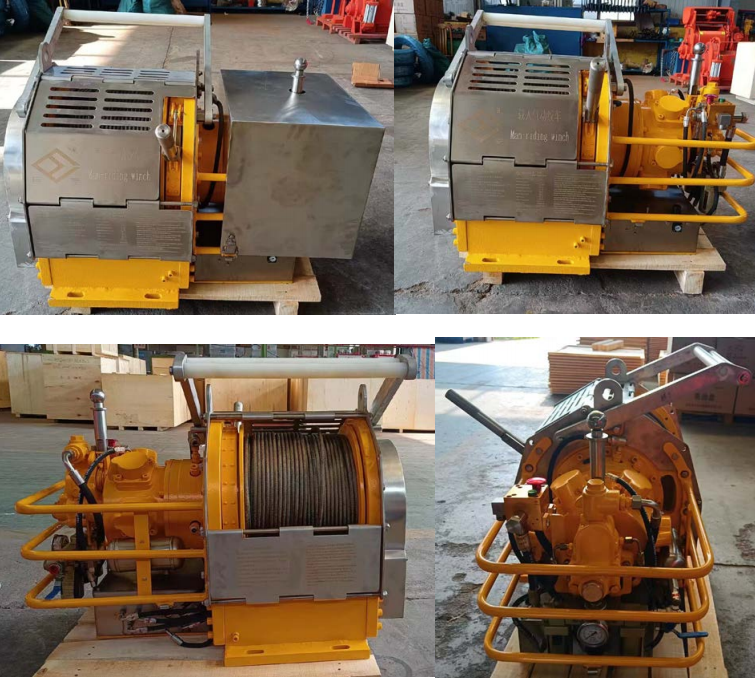

Man Riding Winch With Overload Protection Model ZJQH-1.5×30B

Product Description:

This product is a winch driven by compressed air, with a piston motor. Winches are only used for
carrying people rather than for any other purposes. The design life of the winch depends on the
environment and usage. Within the specified maintenance interval, the winch shall be fully inspected by
technicians trained by Taian Juling to determine the remaining service life

Features:

  • 额定提升力 Rated lifting force 1.5KN;

    提升速度 Lifting speed    		 0~30m/min;
    钢丝绳直径(mm)
    Steel rope diameter(mm)    		 φ 10mm
    容绳量 Wire capacity (D=10mm) 150m
    外形尺寸(长×宽×高) mm
    Overall dimensions(Length ×Width ×Height) mm    		 750×800×700
    气动马达
    Pneumatic Motor    		 功率 Rated power(kW) 2.6kW
    工作进气压力
    Pressure of compress air(MPa)    		 0.25-0.8MPa
    最大耗气量 ax. air consumption ≤5m3/min
    制动形式 Break type 内置全盘式断气制动+手动带式辅助制动
    Built-in entire disc CAAB + Band hand break
    重量 weight(kg) 350
    安全措施
    Security measures    		 1. 急停止装置 Ergency stop device；
     2．断气制动装置 Barely able to brake.
     3. 限位装置Limit Switches;
     4. 紧急释放Mergency Lowering；
     5. 过载保护装置 Over load protection device；
     6. 松绳保护装置Slack Line Detector；


  • Man Riding Winch With Overload Protection Model ZJQH-1.5×30B
