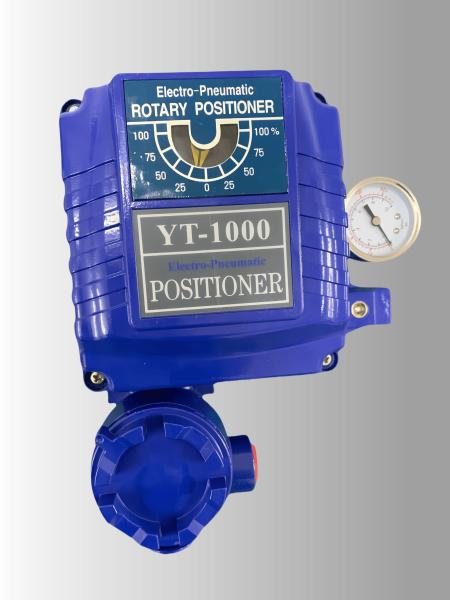

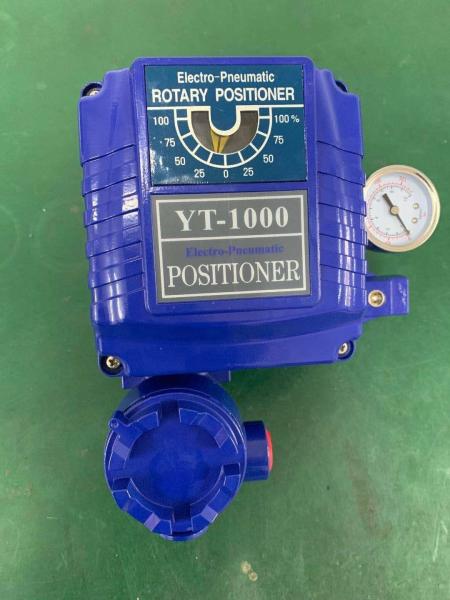

Electro Pneumatic Valve Positioner YT1000 For Pneumatic Valve
Electro Pneumatic Valve Positioner YT1000 For Pneumatic Valve
Electro Pneumatic Valve Positioner YT1000 For Pneumatic Valve
Electro Pneumatic Valve Positioner YT1000 For Pneumatic Valve
Electro Pneumatic Valve Positioner YT1000 For Pneumatic Valve
Electro Pneumatic Valve Positioner YT1000 For Pneumatic Valve
Electro Pneumatic Valve Positioner YT1000 For Pneumatic Valve
Electro Pneumatic Valve Positioner YT1000 For Pneumatic Valve
Specifications
Brand Name :
OEM
Model Number :
YT1000
Certification :
CE,ATEX,ISO9001
Place of Origin :
China
MOQ :
1pcs
Payment Terms :
T/T
Supply Ability :
1000pcs per day
Delivery Time :
3-7 days
Packaging Details :
carton box
Product name :
Electro Pneumatic Valve Positioner YT1000 For Pneumatic Valve
Type :
Rotary Type or Linear Type
Input :
4-20mA DC
Model :
YT1000
Standard stroke :
10-150mm
Pneumatic connections :
NPT 1/4
Price :
10-2000
Description

Electro Pneumatic Valve Positioner YT1000 For Pneumatic Valve


E/P positioner description:


  • Achieve CE Certificate
  • Pass explosion proof ( ExIa BT6,Exdm BT6,Exdm CT6)authentication
  • Pass Ip66 authentication
  • High anti-vibration (none effective in 5 to 200 Hz)
  • The linking of alr duct is perforated form, convenient for the linking in all direction
  • Convenient for the transform of positive action and counteraction
  • 1/2spllt range available by simple adjustments without changing parts
  • Easy maintenance
  • SImpie structure for feed back connection
  • Economical energy saving


​YT-1000R series can have options of position transmitter (PTM), which outputs 4-20mA, and/or limit switch (L/S).

  1. - It is designed for high durability and performance in high vibration environment.
  2. - Durability has proven after testing of 1 million times minimum.
  3. - Response time is very short and accurate.
  4. - Simple part change can set 1/2 Split Range.
  5. - It is economical due to less air-consumption.
  6. - Direct/Reverse action can be set easily.
  7. - Zero & Span adjustment process is simply.
  8. - Feedback Connection is easy.
