Specifications
Brand Name :
OEM
Model Number :
APL210
Certification :
CE,ATEX,ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
10-2000
Payment Terms :
T/T
Supply Ability :
1000pcs per day
Delivery Time :
3-7 days
Packaging Details :
Foam+Carton Box+Wooden Case
Material :
Aluminum Alloy
Surface :
Polyester Powder Coating
Application :
Pneumatic Valve Position Indicator
Travel type :
Angle Travel, Rotary
Mounting Bracket :
Adjustable
Bracket Material :
Carbon Steel or Stainless Steel
Switches :
2 X Spdt
Protection :
IP67 Enclosure
Description

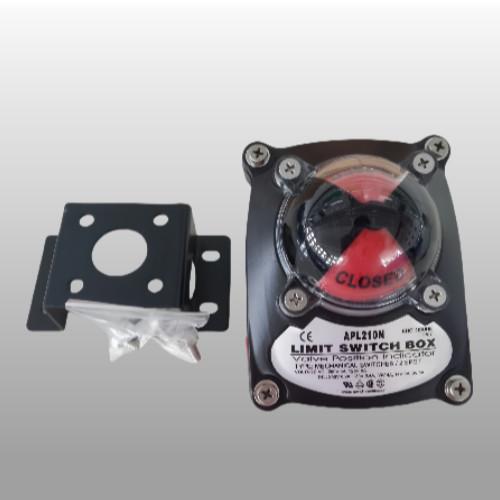

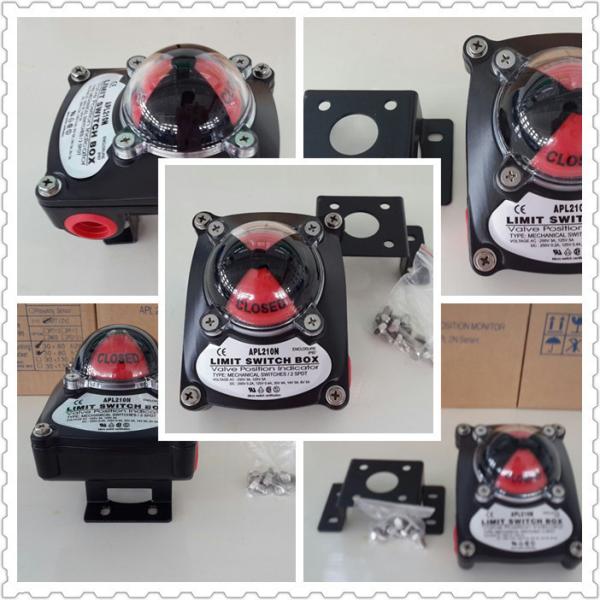

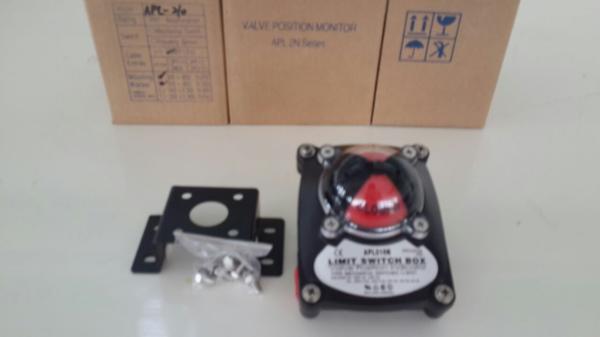

Mechanical Limit Switch Box APL210N For Pneumatic Actuator Drive Valve Position Monitor Indicator

The valve limit switch box is a kind of feld instrument used to detect the valve status in the automatic control system. it isused to output the open or closed position of the valve as a switching signal. The remote controler receives or samples thecomputer. After confirmation, the next step is performed. The product can also be used as an important valve interlockprotection and remote alarm indication in the automatic control system.
1. Limit switch box can long-distance transmission valve opening and closing position signal.
2. The visual position indicatorcan quickly adjust the CAM position.
3. lt is not required separate installation and can be installed directly on the actuator.
4. Switch position can be clearly identified by indicator.

Limit switch box operation
Output shaft from the pneumatic actuator rotates 90º turning the input shaft of the monitor and moving the visual indicator from closed to open (reverses to close). In addition, limit switches provide a dry contact output signal in both the open and closed position. This signal is used to remotely confirm the valve position.
APL 210 Position Monitoring Switchbox is a rotary type position indicator; designed to integrate a valve and pneumatic actuator with a variety of internal switches or sensors. Suitable for small size pneumatic actuators the APL switchbox offers mechanical, low cost single pole, double throw plated contact switching with an operating life of 100,000 cycles. The APL-210 is an IP67 Aluminium bodied standard switchbox with 2 x V3 SPDT limit switches, Beacon indicator & Stainless steel Namur bracket.

Mechanical Limit Switch Box For Pneumatic Actuator Drive Valve Position Monitor Indicator
