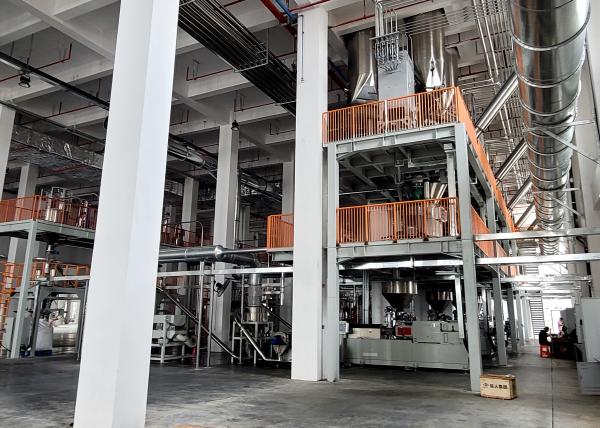

Cable Production Pneumatic Conveying System With Automatic Additive Dosing
Cable Production Pneumatic Conveying System With Automatic Additive Dosing
Cable Production Pneumatic Conveying System With Automatic Additive Dosing
Cable Production Pneumatic Conveying System With Automatic Additive Dosing
Cable Production Pneumatic Conveying System With Automatic Additive Dosing
Cable Production Pneumatic Conveying System With Automatic Additive Dosing
Cable Production Pneumatic Conveying System With Automatic Additive Dosing
Cable Production Pneumatic Conveying System With Automatic Additive Dosing
Cable Production Pneumatic Conveying System With Automatic Additive Dosing
Cable Production Pneumatic Conveying System With Automatic Additive Dosing
Cable Production Pneumatic Conveying System With Automatic Additive Dosing
Cable Production Pneumatic Conveying System With Automatic Additive Dosing
Specifications
Place of Origin :
China
Brand Name :
MACHTECH
Capacity :
Depends on the specific system and customer needs
Control System :
PLC
Installation :
On-site installation by professional technicians
Safety Features :
Emergency Stop Button, Safety Interlock System
Material :
Stainless Steel
Operation Mode :
Automatic
Power Source :
Electricity
Product Type :
Industrial Equipment
Loading Method :
Pneumatic or mechanical
Maintenance :
Regular maintenance required for optimal performance
Unloading Method :
Gravity or pneumatic
Application :
Unloading raw materials from trucks or containers
Conveying Distance :
Customizable
Conveying Speed :
Adjustable
Dust Collection System :
Included
Installation Method :
Fixed on Ground
Unloading Mode :
Automatic
Power Supply :
380V/50Hz
Conveying Method :
Pneumatic
Description
Engineered for High-Performance Cable Production

Our integrated system combines closed-loop pneumatic conveying with ultra-precise additive dosing (±0.1% accuracy) specifically for XLPE, EPR, and HVDC cable compounds. The solution ensures contamination-free processing of sensitive materials like cross-linking agents, voltage stabilizers, and nano-fillers while meeting 500kV+ cable production standards.

System Highlights
1. Clean Material Conveying
  • Dedicated Lines for:
    Base resins (LDPE/XLPE)
    Carbon black masterbatch
    Voltage stabilizers (e.g., Dicumyl Peroxide)
  • Gentle Transport Modes:
    Dense phase: <0.01% additive degradation
    Anti-static design: Prevents carbon black agglomeration
2. Pharmaceutical-Grade Dosing
  • Micro-Dosing Modules:
    0.1-50kg/hr with ±0.1% accuracy
    Loss-in-weight feeders for critical additives
  • Contamination Prevention:
    Stainless steel contact surfaces
    Nitrogen purging for oxygen-sensitive compounds
Technical Specifications
Parameter Performance
Throughput 2-15 T/H
Conveying Distance Up to 150m horizontal
Dosing Resolution 0.1g (micro), 10g (macro)
Control System Siemens PCS7 with SCADA
Critical Certifications:
  • IEC 60502-2 (HV cable standards)
  • ATEX Zone 22 (carbon black handling)
  • Cleanroom Class 100,000 (optional)
Operational Advantages
  • Eliminates Manual Handling of hazardous additives
  • Prevents Cross-Linking Prematurity with temp-controlled lines
  • Auto-Purge System between material changes
  • Full Traceability with batch-wise RFID tagging
Applications:
110kV-1000kV cable insulation DC submarine cable compounds Superclean EPR formulations
