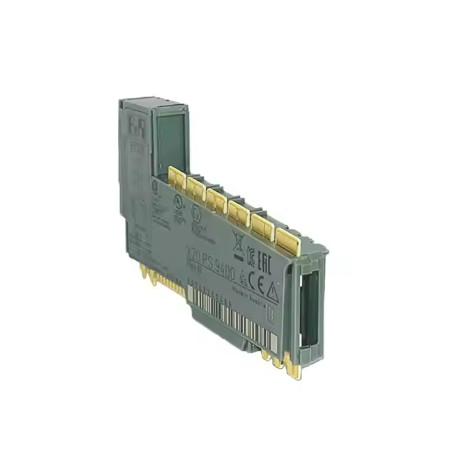

B&R X20PS9400: Premium 24V DC Power Supply Module with 20A Output, High - Efficiency Conversion & Comprehensive Protection for Industrial Automation
B&R X20PS9400: Premium 24V DC Power Supply Module with 20A Output, High - Efficiency Conversion & Comprehensive Protection for Industrial Automation
B&R X20PS9400: Premium 24V DC Power Supply Module with 20A Output, High - Efficiency Conversion & Comprehensive Protection for Industrial Automation
B&R X20PS9400: Premium 24V DC Power Supply Module with 20A Output, High - Efficiency Conversion & Comprehensive Protection for Industrial Automation
B&R X20PS9400: Premium 24V DC Power Supply Module with 20A Output, High - Efficiency Conversion & Comprehensive Protection for Industrial Automation
B&R X20PS9400: Premium 24V DC Power Supply Module with 20A Output, High - Efficiency Conversion & Comprehensive Protection for Industrial Automation
Specifications
Brand Name :
B&R
Model Number :
X20PS9400
Certification :
3C
Place of Origin :
GERMANY
MOQ :
1
Price :
99$/piece
Payment Terms :
T/T
Supply Ability :
1piece in stock
Delivery Time :
3 day
Packaging Details :
160*110*60mm
Description

1. Supply Functionality

The X20PS9400, identified by the material number X20PS9400, is a supply module designed to work in conjunction with an X20 bus controller. It provides power for multiple critical components, including the bus controller, the X2X Link, and the internal I/O supply. This all - in - one power provision ensures the smooth operation of the overall system, as these components rely on a stable power source for proper functioning.

2. Electrical Isolation and Redundancy

One of the key features of the X20PS9400 is the electrical isolation between the feed and the bus controller/X2X Link supply. This isolation enhances the safety and reliability of the system by preventing electrical interference. Moreover, it offers redundancy capabilities. By operating multiple supply modules simultaneously, it can ensure continuous power supply to the bus controller and X2X Link, reducing the risk of system downtime.

3. Service Interface

The X20PS9400 is also equipped with a service interface (RS232). This interface provides a means for system administrators to access and manage the supply module. It allows for tasks such as monitoring the power supply status, performing diagnostic checks, and making configuration adjustments. This service interface adds an extra layer of convenience and functionality to the module.


Attribute Details
Product Model X20PS9400
Manufacturer B&R
B&R ID Code 0x3F69
Function Provide power for bus controller, X2X Link, and internal I/O
Isolation Electrical isolation between feed and bus controller/X2X Link supply
Redundancy Enable redundancy of bus controller/X2X Link supply by running multiple modules simultaneously
Service Interface RS232 for configuration and monitoring
Input Voltage 24V DC (-15%/+20%, i.e., 20.4 - 28.8V DC)
Output Voltage 24V DC
Output Current Bus controller/X2X Link: 2A; Internal I/O: 10A
Efficiency High - efficiency power conversion
Protection Over - current (auto - recovery), over - voltage, and short - circuit protection
Operating Temperature -25°C to 60°C
Storage Temperature -40°C to 85°C
Relative Humidity 5 - 95% (non - condensing)
Degree of Protection IP20
Cooling Convection cooling
Dimensions 125mm (W) x 100mm (H) x 110mm (D)
Weight Approx. 1.1kg
Status Indicators LEDs for power - on and fault indication
Certifications CE, UL, cUL, ATEX (Zone 2), DNV - GL, CCS, LR, KR, ABS, BV
Mounting DIN - rail mounting
