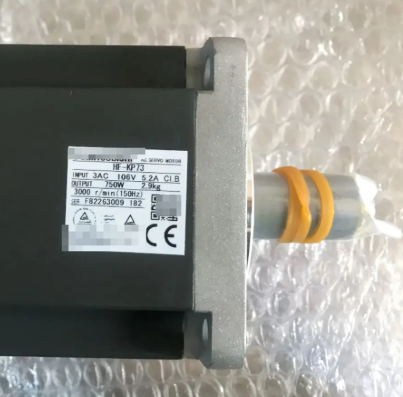

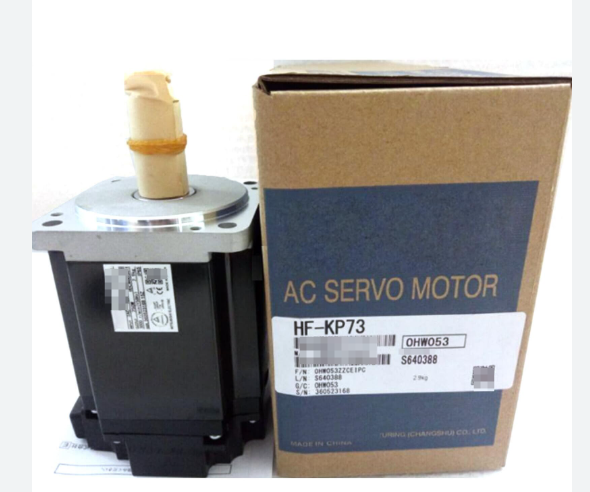

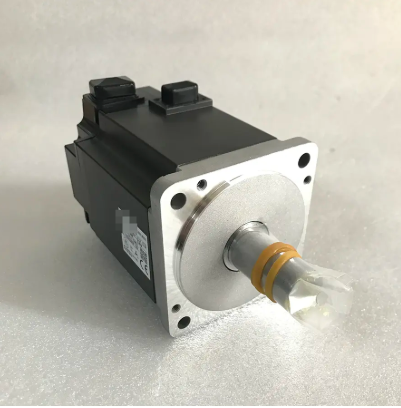

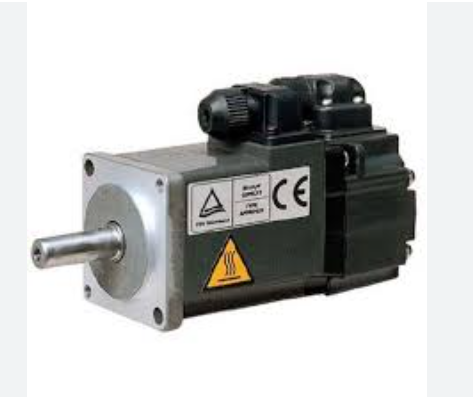

AC brushless rotary servo motor with straight shaft HF-KP73 Brand-New in Box Good Price and Quantity
AC brushless rotary servo motor with straight shaft HF-KP73 Brand-New in Box Good Price and Quantity
AC brushless rotary servo motor with straight shaft HF-KP73 Brand-New in Box Good Price and Quantity
AC brushless rotary servo motor with straight shaft HF-KP73 Brand-New in Box Good Price and Quantity
AC brushless rotary servo motor with straight shaft HF-KP73 Brand-New in Box Good Price and Quantity
AC brushless rotary servo motor with straight shaft HF-KP73 Brand-New in Box Good Price and Quantity
AC brushless rotary servo motor with straight shaft HF-KP73 Brand-New in Box Good Price and Quantity
AC brushless rotary servo motor with straight shaft HF-KP73 Brand-New in Box Good Price and Quantity
Specifications
Model Number :
HF-KP73
key words :
AC servo motor
Delivery Time :
3days
Package :
1 Piece
Port :
Shenzhen & Guangzhou /Selectable
Quality :
new
MOQ :
1
Shipping :
UPS/DHL/FEDEX
Price :
USD210-220/pcs
Part Number :
HF-KP73
Rated active power (kW) :
750W / 0.75kW
Payment Terms :
T/T, Western Union,paypal
Weight (kg) :
2.9
Place of Origin :
CHINA
Packaging Details :
Original packaging
Company Location :
Changsha City, China
Brand Name :
Mitsubishi
Rotational speed :
3000rpm 6000rpm (maximum)
Description

HF-KP73

AC brushless rotary servo motor with straight shaft + built-in absolute feedback encod. (18-bit) - Mitsubishi Electric (MELSERVO J3 - HF-KP series) - Rated output 750W / 0.75kW - 18-bit (equivalent to 260000ppr) feedback - Rated current 5.2A - Supply voltage 200Vac class - Rated torque 2.4Nm nominal - Rated rotational speed 3000rpm - 80x80mm flange mounting - IP65 - rated for 0...+40°C ambient - equivalent to HFKP73

Specifications

Primary brand
Mitsubishi Electric
Main function
AC servo motor
Product series / family name
Industrial automation > Drive products > Servo systems > AC Servo motors > MELSERVO J3 series
Sub-range name
MELSERVO J3 - HF-KP series
Functions
AC brushless rotary servo motor
Design
straight shaft
built-in absolute feedback encod. (18-bit)
low inertia / small power capacity
Supply voltage (AC)
200Vac class
Rated current
5.2A
15.6A (max. current)
Rated active power (kW)
750W / 0.75kW
Rotational speed
3000rpm
6000rpm (maximum)
Torque
2.4Nm nominal
Maximum torque
7.2Nm
Moment of inertia
0.000143kg.m2 (1.43kg.cm2)
Mounting mode
80x80mm flange mounting
Resolution
18-bit (equivalent to 260000ppr) feedback
Degree of protection
IP65
Dimensions
H96mm x W80mm x D153.8mm
Net Height (mm)
96 mm
Net Width (mm)
80 mm
Net Depth (mm)
153.8 mm
Ambient air temperature for operation
0...+40 °C
Ambient air temperature for storage
-15°C...+70 °C
Order code / Manufacturer SKU
HF-KP73
Manufacturer product status
Discontinued
Equivalent to
HFKP73
Manufacturer description
SRVMTR 750W
Benefits
taking advantage of the characteristics of a servo motor such as smallness and high-output
this motor serves as a compact and high-output spindle motor which is capable of high-speed rotation 6000rpm
