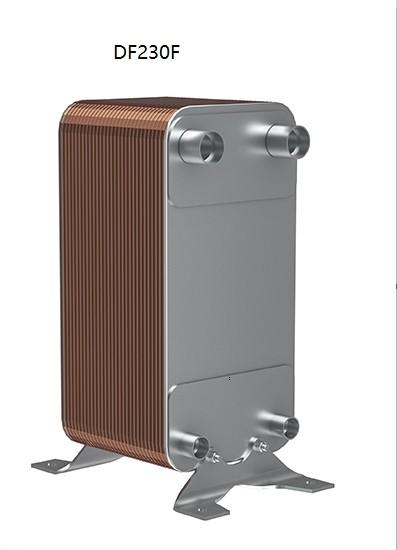

Central Air Conditioner Brazed Plate Heat Exchanger Refrigeration High Efficiency
Central Air Conditioner Brazed Plate Heat Exchanger Refrigeration High Efficiency
Central Air Conditioner Brazed Plate Heat Exchanger Refrigeration High Efficiency
Central Air Conditioner Brazed Plate Heat Exchanger Refrigeration High Efficiency
Central Air Conditioner Brazed Plate Heat Exchanger Refrigeration High Efficiency
Central Air Conditioner Brazed Plate Heat Exchanger Refrigeration High Efficiency
Specifications
Brand Name :
Tenkai
Model Number :
DF250/230F
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1pcs
Price :
Negotiate
Payment Terms :
L/C, T/T, D/P
Supply Ability :
500pcs/Day
Delivery Time :
Within one week
Packaging Details :
Wooden Box Package
Material :
Copper/Stainless Steel
Copper Design Temperature :
-196 ℃-225 ℃
Copper MAX Design Pressure :
4.5 Mpa
Stainless Steel Design Temperature :
-196 ℃-550 ℃
Stainless Steel Max Design Pressure :
2.5 Mpa
Connection Mode :
Male thread , Female thvead, Flange, SAE Flange, Soldering
Warranty Period :
One year
Structure :
Plate Heat Exchanger
Application :
central air-conditioning , water chilling unit
Heat Transfer Power :
Max 600KW
Description

USE FOR CENTRAL AIR CONDITIONER DIAGONAL FLOW BRAZED HEAT EXCHANGER FROM CHINA

Product Introduce :

Diagonal Flow Brazing Heat Exchanger is special for central air-conditioning , industrial chiller, large-scale heat pump system , etc ...

refrigerating fluid use in duplex compressor , its max heat transfer power can reach 600KW , especially optimization design refrigerating fluid type R410A in the structure .

Product Feature:

High Capacity , High Efficiency , Apply to Polytropic Refrigerant

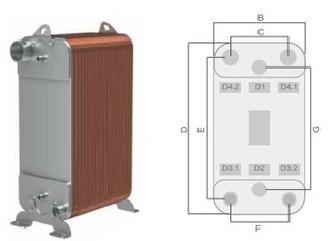

Sheet Data :

TYPE B(mm) C(mm D(mm) E(mm F(mm G(mm) THICKNESS(mm) WEIGHT(Kg) MAX FLOW(m3/h) DESIGN PRESSURE (Mpa)
ZL230F 249 161 497 414 172 369 13+2.1N 6.5+0.37N 42 3/4.5
ZL250 319 205.2 736 631.7 224.4 568 15+2.6N 13+0.82N 100 3/4.5

Workshop :

Central Air Conditioner Brazed Plate Heat Exchanger Refrigeration High Efficiency

Central Air Conditioner Brazed Plate Heat Exchanger Refrigeration High Efficiency
