4.5Mpa Industrial Chilled Water Plate Heat Exchanger For Central Air Conditioning
4.5Mpa Industrial Chilled Water Plate Heat Exchanger For Central Air Conditioning
Specifications
Brand Name :
Tenkai
Model Number :
UFP42A
Certification :
ISO9001-2015
Place of Origin :
CHINA
MOQ :
1 wooden package
Price :
Negotiate/Competitive
Payment Terms :
L/C, T/T, D/P at sight
Supply Ability :
370pcs/Day
Delivery Time :
Within 13 days
Packaging Details :
Wooden Box Package
Material :
Copper
Copper Design Temperature :
-196 ℃-225 ℃
Copper MAX Design Pressure :
4.5 Mpa
Connection Mode :
Male thread , Female thread, Flange, SAE Flange, Soldering
Warranty Period :
12 months
Structure :
Plate Heat Exchanger
Max Flow :
18m³/h
Max Pressure :
4.5Mpa
Weld :
Brazed
HS CODE :
8419500090
Application :
Central Air-Conditioning
Description

Central Air-Conditioning , Industrial Chiller Copper Brazed Plate Heat Exchanger

What is the copper brazed plate heat exchanger :

A copper plate heat exchanger is a type of heat exchanger that utilizes copper plates as the primary heat transfer surface. It consists of a series of parallel copper plates, typically arranged in alternating layers, with fluid channels in between. The copper plates are sealed together, and the fluid flows through the channels, allowing for efficient heat transfer between the fluids.

Copper Plates: The plates are made of copper due to its excellent thermal conductivity. Copper is chosen for its ability to facilitate efficient heat transfer between the fluids.

TYPE B(mm) C(mm) D(mm) E(mm) THICKNESS(mm) WEIGHT(Kg) MAX FLOW (m3/h) DESIGN PRESSURE(Mpa)
UFP 10 77 42 155 119 9+1.25N 0.28+0.027N 4 3/4.5
UFP 20A 93 40 323 269 9+1.5N 1+0.09N 8 3/4.5
UFP 42A 121 68 332 279 10+1.53N 2.05+0.11N 18 3/4.5
UFP 62FA 120 63 527 470 10+1.98N 2.379+0.18N 18 3/4.5
UFP 62FB 120 63 527 470 10+1.98N 2.379+0.18N 18 3/4.5
UFP 95FA 182 92 609 519 12+2.05N 15+0.36N 42 3/4.5
UFP 95FB 182 92 609 519 12+2.05N 15+0.36N 42 3/4.5

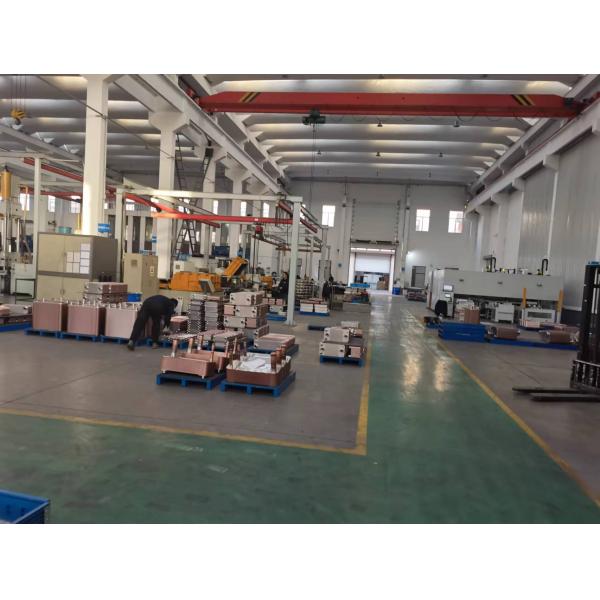

Workshop :

4.5Mpa Industrial Chilled Water Plate Heat Exchanger For Central Air Conditioning

Package Area :

4.5Mpa Industrial Chilled Water Plate Heat Exchanger For Central Air Conditioning
