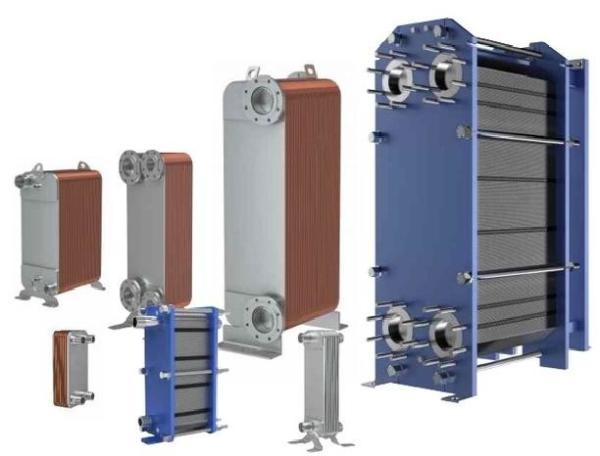

Superior Thermal Conductivity Brazed Plate Heat Exchanger For For Efficient Heat Transfer
Superior Thermal Conductivity Brazed Plate Heat Exchanger For For Efficient Heat Transfer
Superior Thermal Conductivity Brazed Plate Heat Exchanger For For Efficient Heat Transfer
Superior Thermal Conductivity Brazed Plate Heat Exchanger For For Efficient Heat Transfer
Specifications
Brand Name :
Tenkai
Model Number :
UFP42A
Certification :
ISO9001-2015
Place of Origin :
CHINA
MOQ :
one package
Price :
Negotiate/Competitive
Payment Terms :
L/C, T/T, D/P, Western Union
Supply Ability :
350pcs/Day
Delivery Time :
Within 11 days
Packaging Details :
Wooden Box Package
Material :
Copper
Copper Design Temperature :
-196 ℃-225 ℃
Copper MAX Design Pressure :
4.5 Mpa
Connection Mode :
Male thread , Female thread, Flange, SAE Flange, Soldering
Warranty Period :
12 months
Structure :
Plate Heat Exchanger
Max Flow :
18m³/h
Max Pressure :
4.5Mpa
Application :
HVAC (Heating, Ventilation, and Air Conditioning)
Weld :
Bazed
Description

Superior Thermal Conductivity Copper Brazed Plate Heat Exchanger For For Efficient Heat Transfer

Brazed Technology :

Brazing is a joining process used to bond two or more metal components together using a filler material called a brazing alloy. It is a method of joining metals that does not involve melting the base metals being joined, unlike welding. Instead, the filler material, which has a lower melting point than the base metals, is heated to its melting temperature and flows between the joint surfaces by capillary action.

Copper plate heat exchanger refers to a type of plate heat exchanger that utilizes copper plates as the primary heat transfer surface. Copper is a highly conductive material known for its excellent thermal conductivity, corrosion resistance, and durability. Copper plate heat exchangers are commonly used in various industries and applications where efficient heat transfer and resistance to corrosion are required.

TYPE B(mm) C(mm) D(mm) E(mm) THICKNESS(mm) WEIGHT(Kg) MAX FLOW (m3/h) DESIGN PRESSURE(Mpa)
UFP 10 77 42 155 119 9+1.25N 0.28+0.027N 4 3/4.5
UFP 20A 93 40 323 269 9+1.5N 1+0.09N 8 3/4.5
UFP 42A 121 68 332 279 10+1.53N 2.05+0.11N 18 3/4.5
UFP 62FA 120 63 527 470 10+1.98N 2.379+0.18N 18 3/4.5
UFP 62FB 120 63 527 470 10+1.98N 2.379+0.18N 18 3/4.5
UFP 95FA 182 92 609 519 12+2.05N 15+0.36N 42 3/4.5
UFP 95FB 182 92 609 519 12+2.05N 15+0.36N 42 3/4.5

Workshop :

Superior Thermal Conductivity Brazed Plate Heat Exchanger For For Efficient Heat Transfer

Factory Show :

Superior Thermal Conductivity Brazed Plate Heat Exchanger For For Efficient Heat Transfer
