Specifications
Model Number :
DH680
Forming Area :
440*660mm
Place of Origin :
China
Brand Name :
Wenzhou Beyond Machine
Certification :
CE
Forming Depth :
80mm
Description

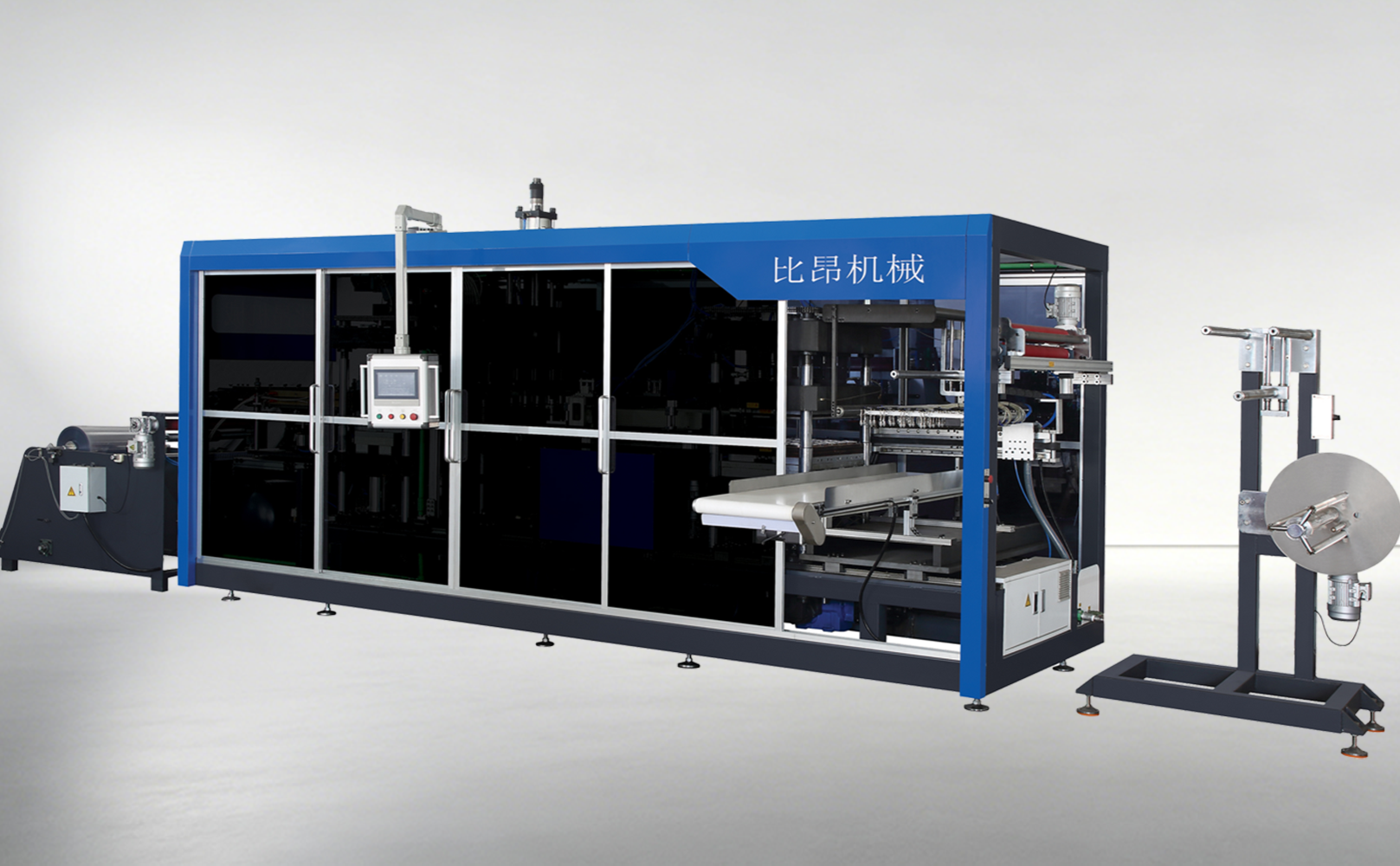

Full Servo Thermoforming Machine DH680

The DH680 fully automatic thermoforming machine is designed for manufacturers that require a larger forming area, high output, and stable continuous production. It integrates forming, hole punching, cutting, and stacking into one automatic process. The full servo control system, precise sheet feeding, and PLC control help maintain stable movement and consistent forming quality during production.

The maximum forming area is 660*440mm, making the DH680 suitable for larger plastic packaging products and high-output applications. It supports PET, PS, BOPS, PLA, and PVC sheets and is especially suitable for food containers, plastic trays, lids, clamshell packaging, and other thermoformed products. With a working speed of 15–25 cycles/min and average power consumption of about 10kW, it offers a practical balance between forming capacity, production efficiency, and operating cost.




Product Overview

Features:

  • Energy Consumption — 10 kWh per hour
  • Upper & Lower Servo Control at Each Station
  • High Output
  • Direct Connection from Cup Lid Production to Packaging Line

Scope of Application



High Speed Full Servo Thermoforming Machine DH680 High Speed Full Servo Thermoforming Machine DH680 High Speed Full Servo Thermoforming Machine DH680 High Speed Full Servo Thermoforming Machine DH680

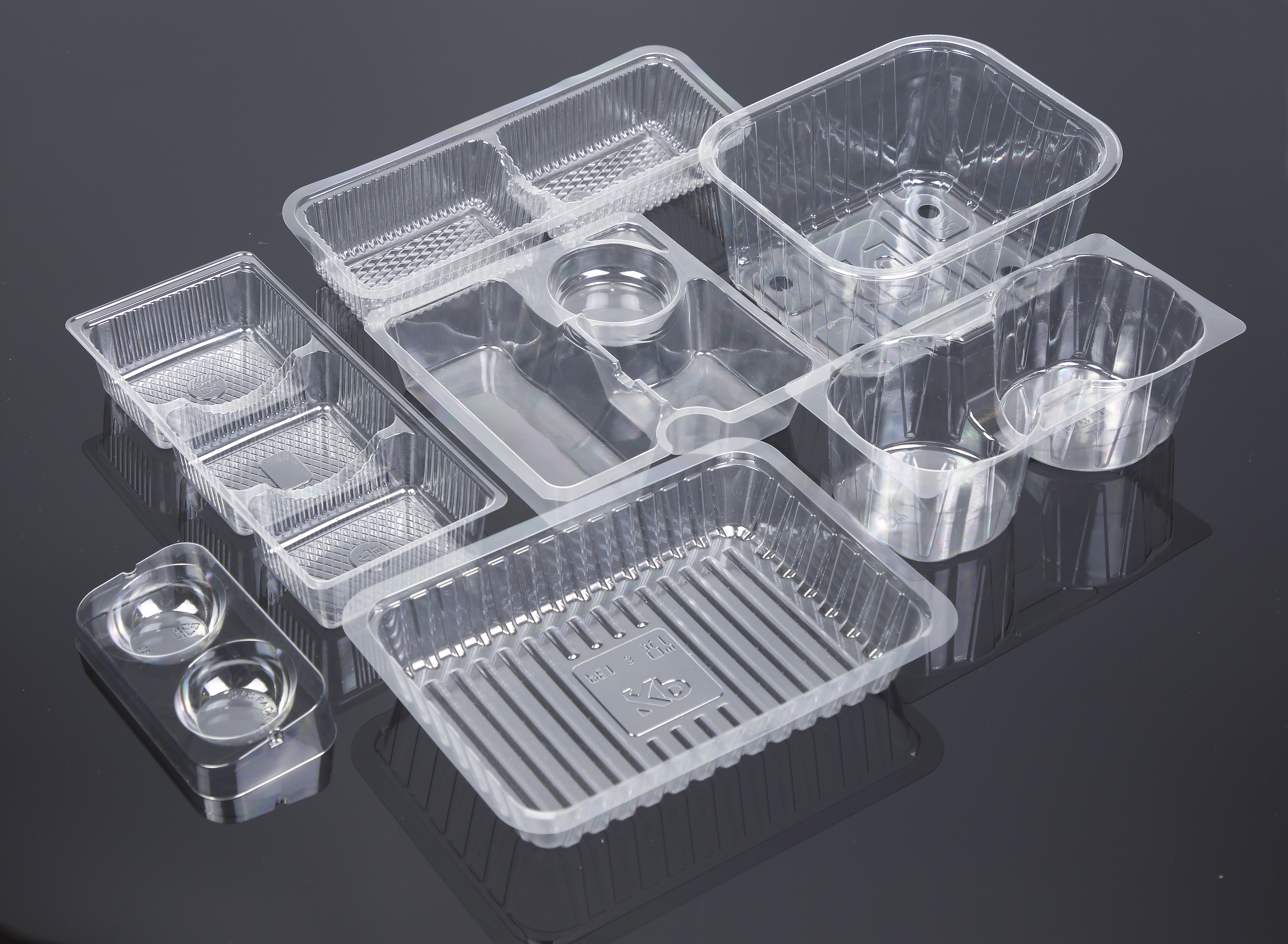

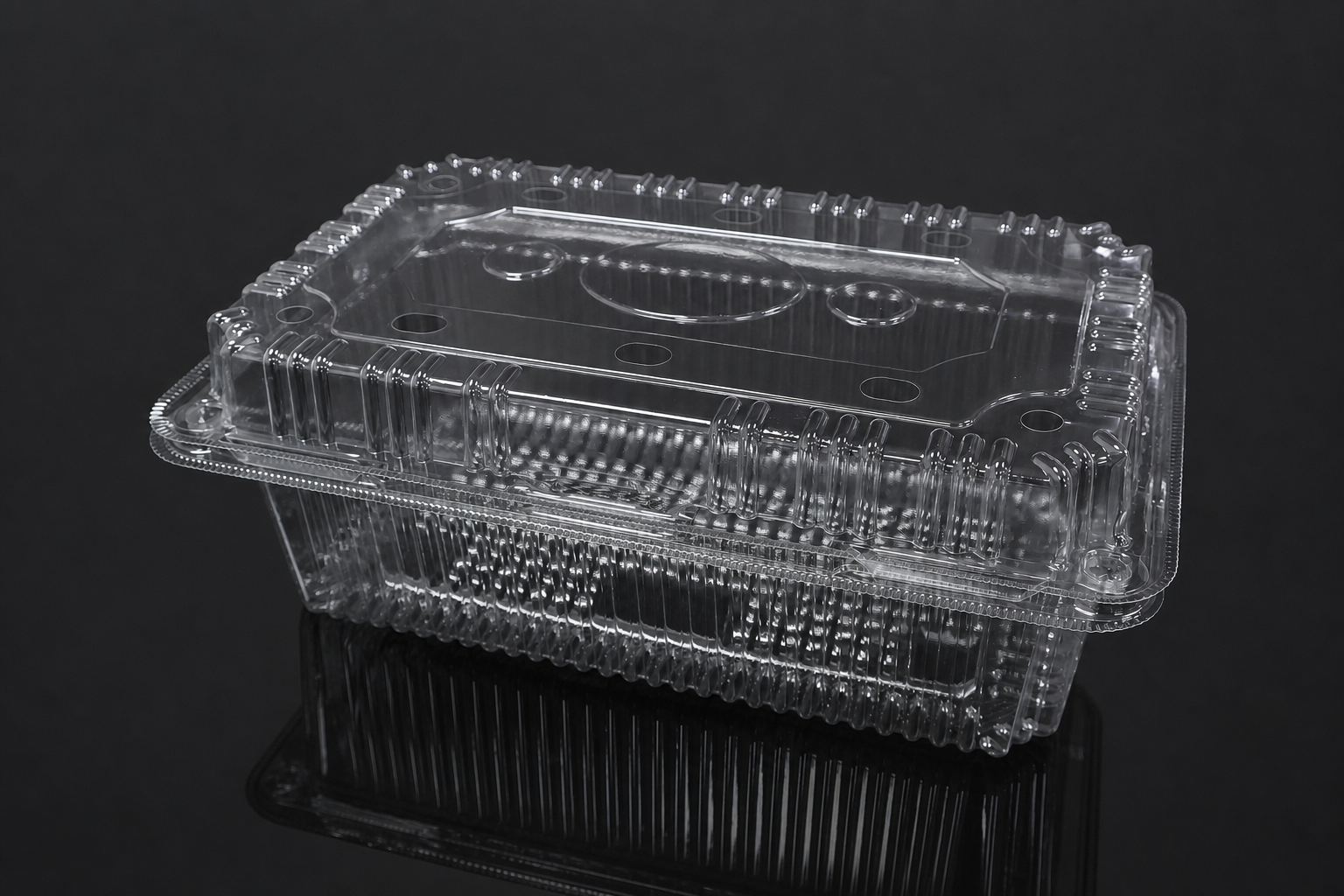

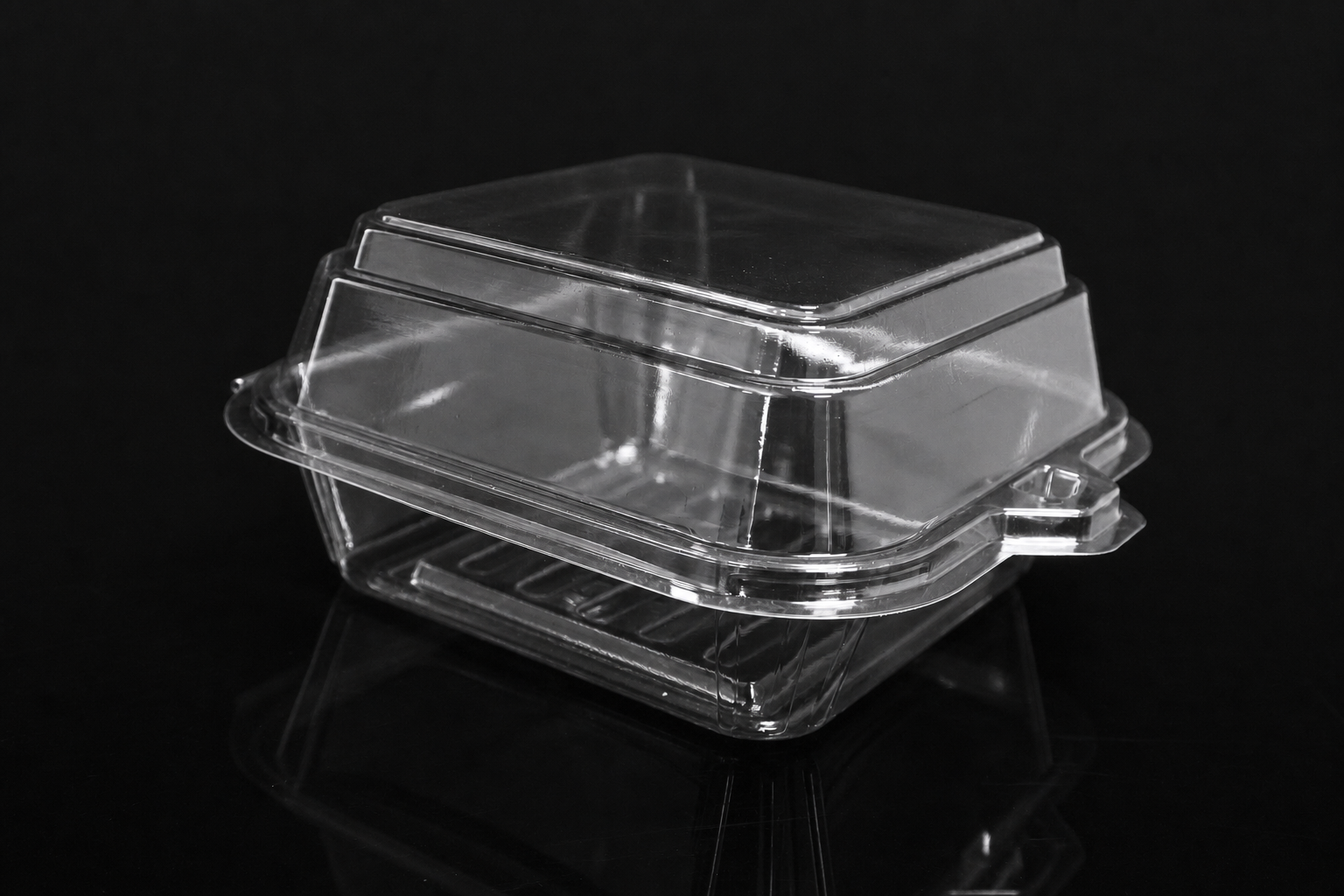

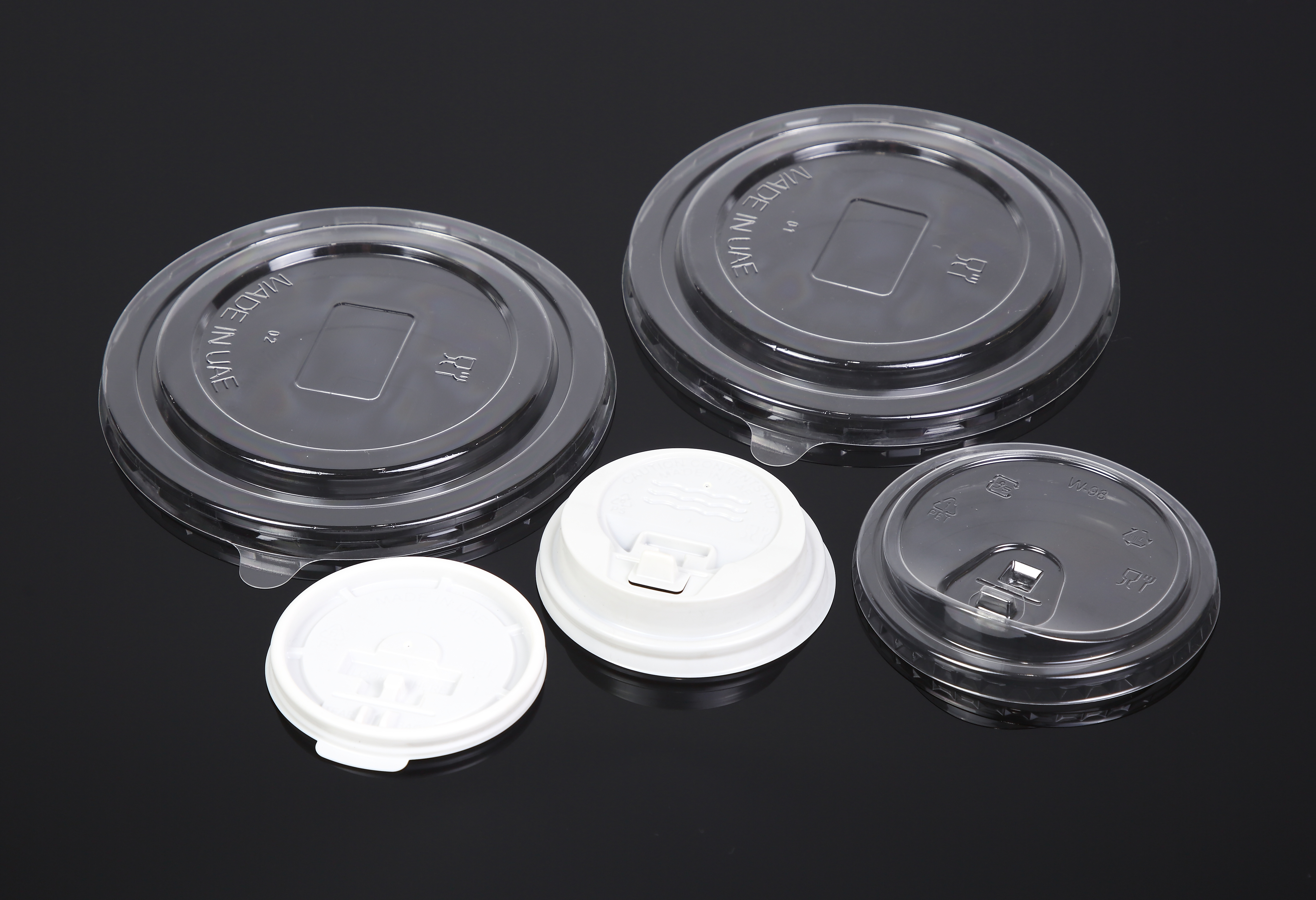

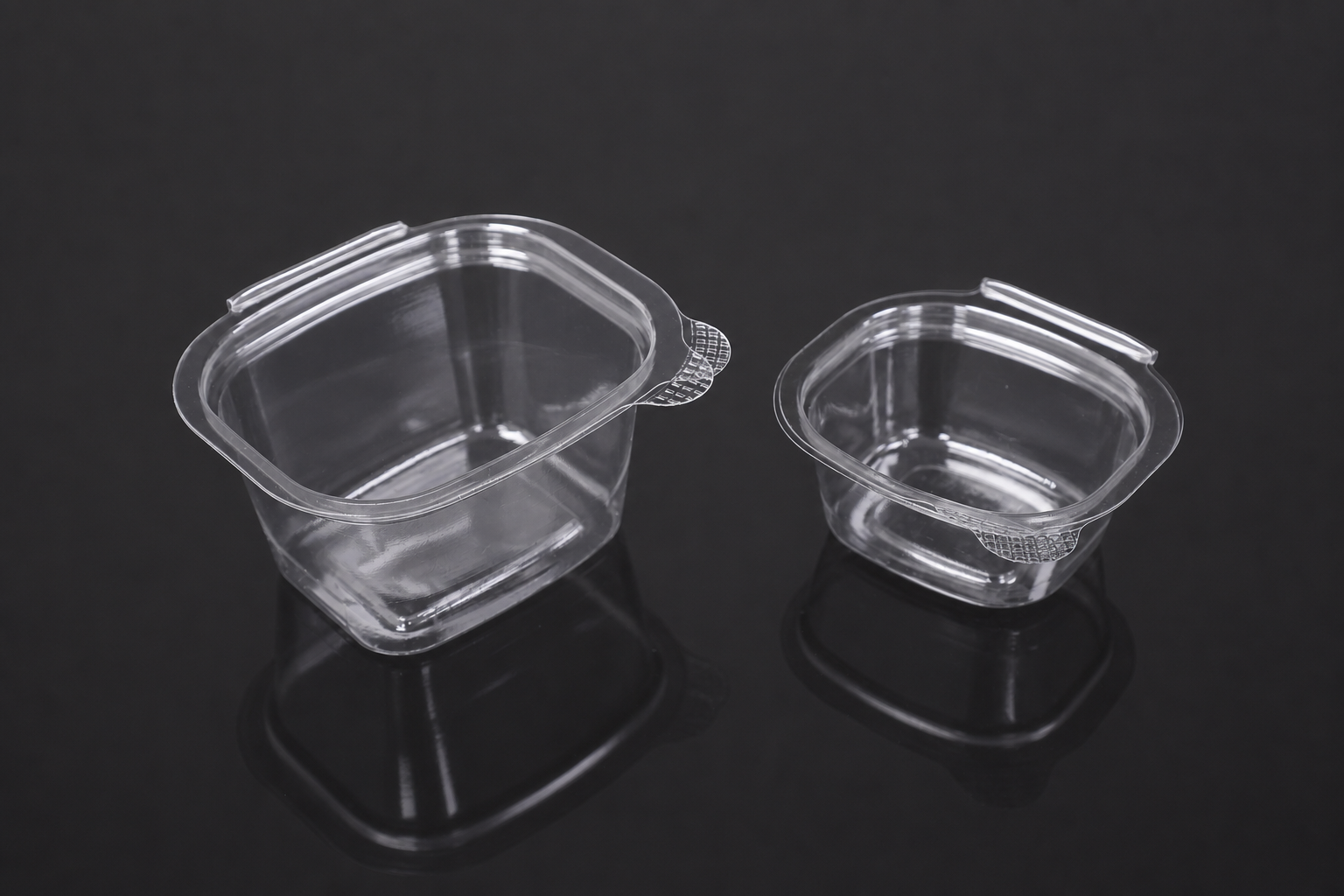

Food Packaging Box Plastic Cup Lid Sauce Cup Clamshell
High Speed Full Servo Thermoforming Machine DH680 High Speed Full Servo Thermoforming Machine DH680 High Speed Full Servo Thermoforming Machine DH680 High Speed Full Servo Thermoforming Machine DH680

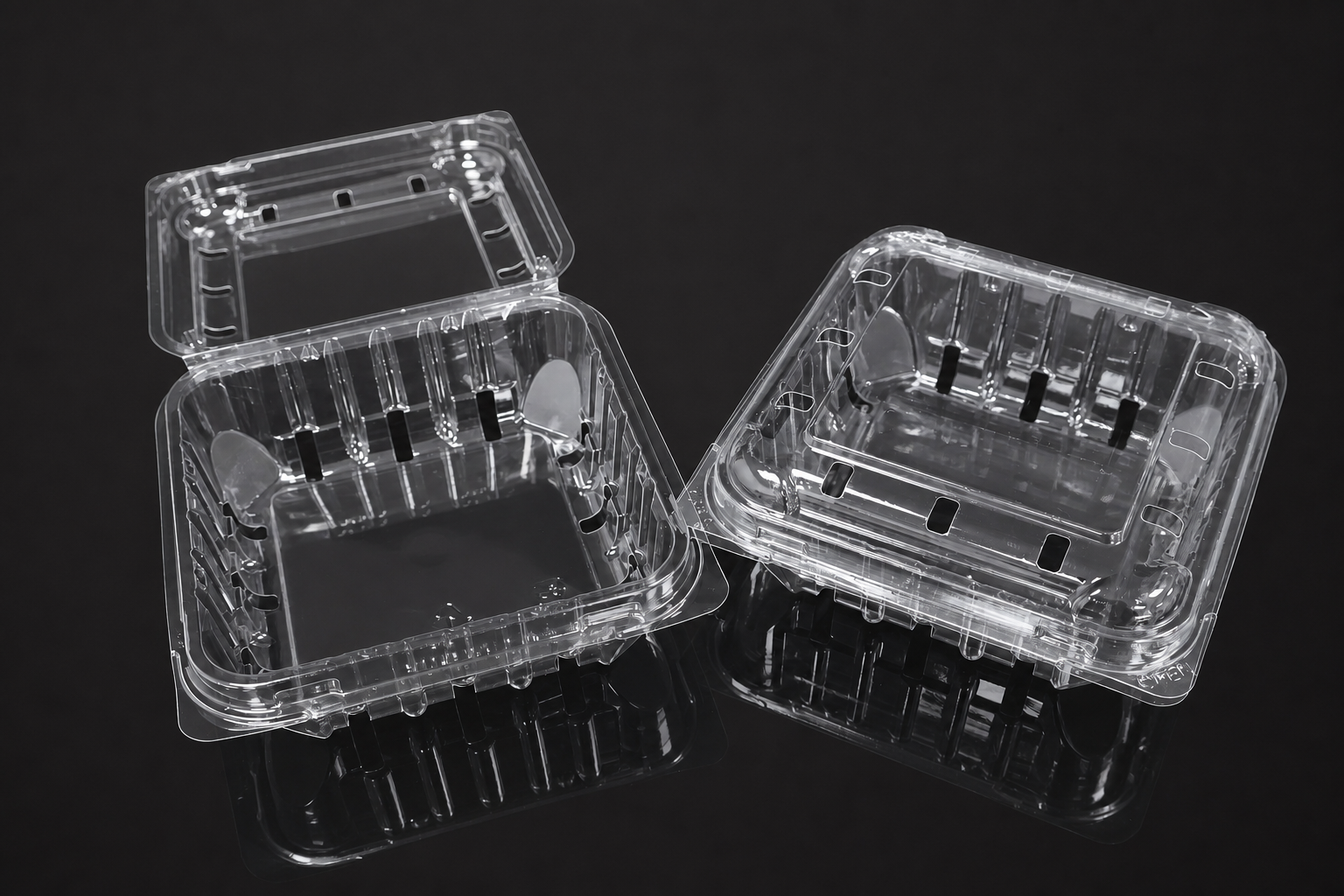

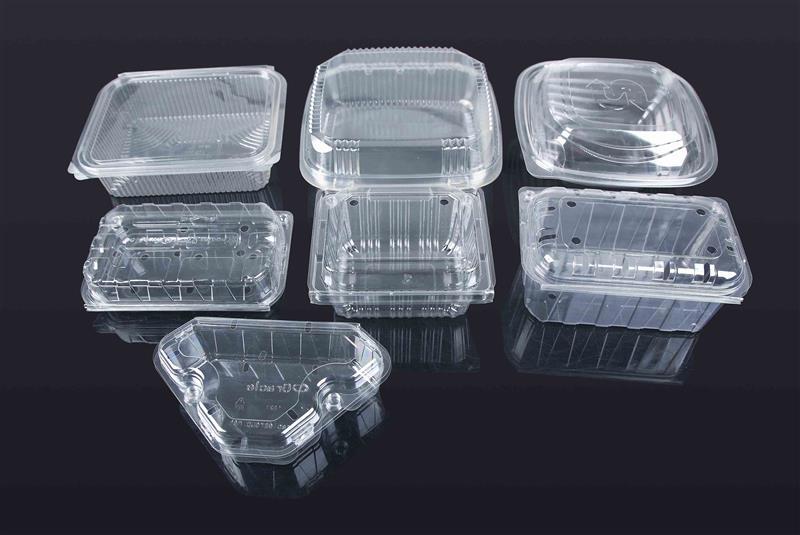

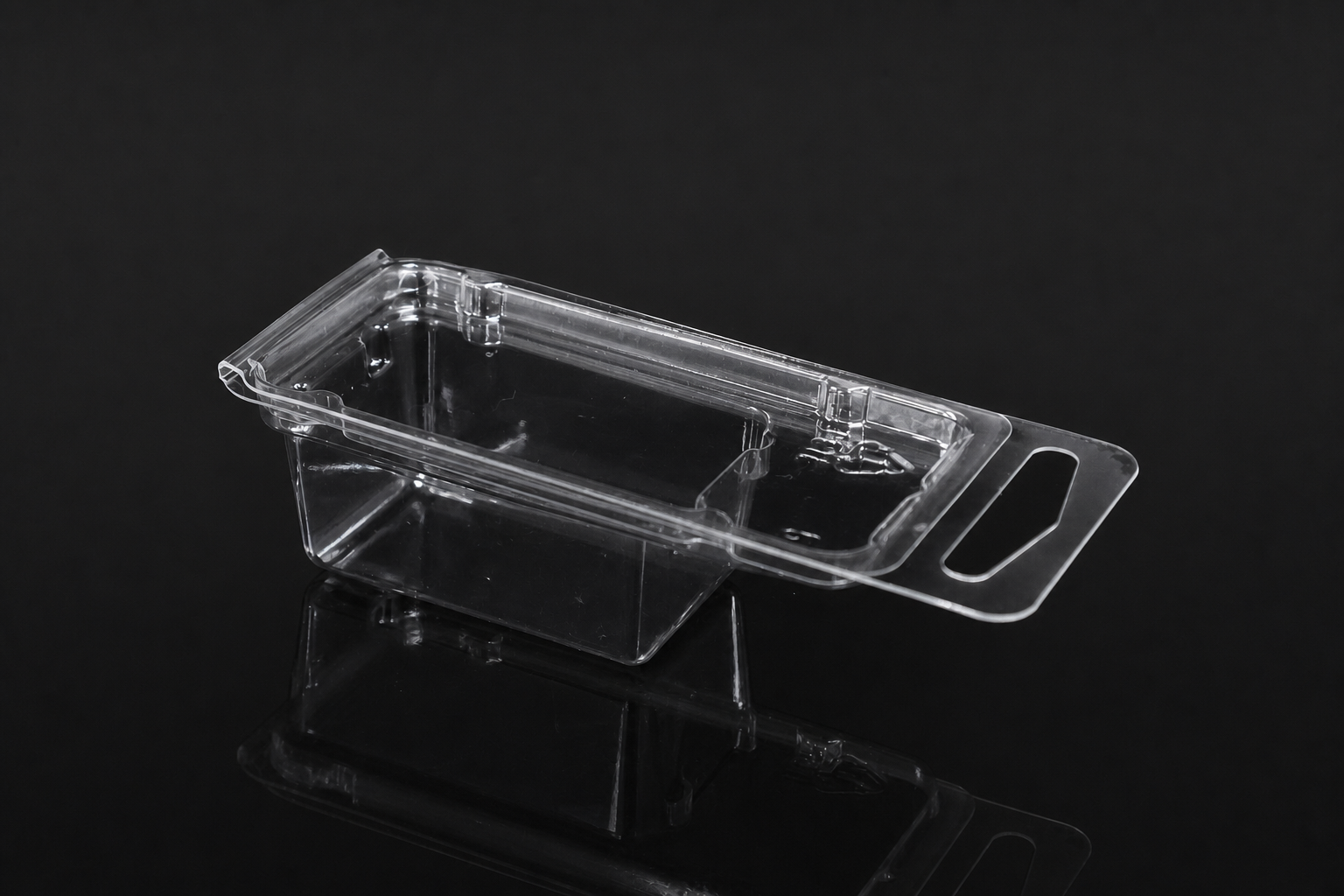

Food Container Blueberry Box Fruit Packaging Box Food Trays

Technical Specifications Of DH680 Thermoforming Machine


 DH680
Suitable Material PET, PS, BOPS, PLA, PVC
Max. Forming Area 660*440mm
Max. Forming Depth 65mm
Material Thickness 0.15-0.7mm
Working Speed 15-25 cycles/min
Max. Sheet Width 680mm
Max. Sheet Roll Dia. 1200mm
Max. Forming Force 400kN
Max. Cutting Force 450kN
Heating Power 36kW
Total Rated Power 40kW
Average Power Consumption ~10 kW
Air Pressure 0.4-0.9MPa
Air Consumption >1.5m³/min
Cooling Water Consumption 2m³/h
Dimension(L*W*H) 10*1.67*2.5m
Weight About 11000kg
Power Supply 380V, 3Ph, 50Hz
