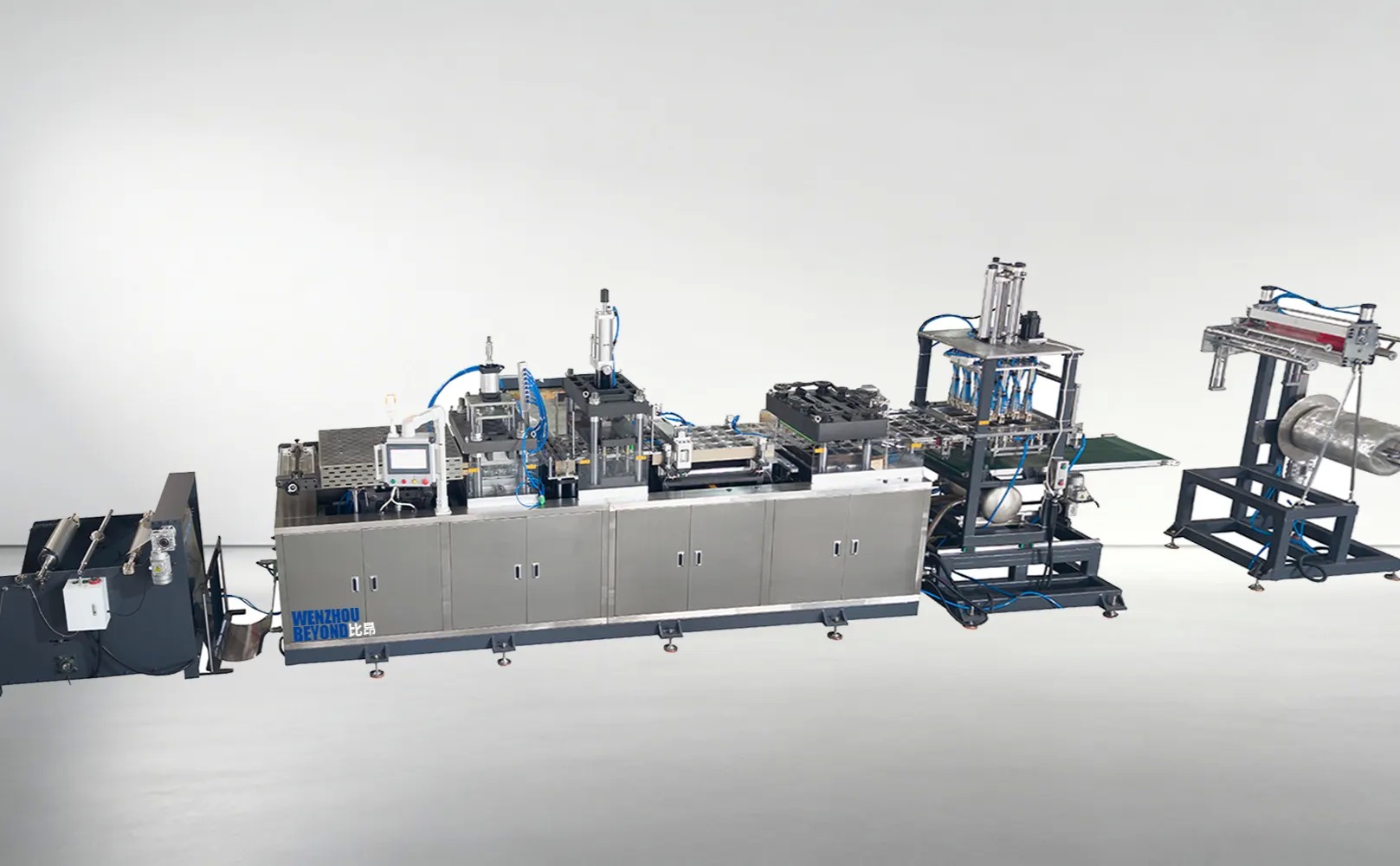

High Speed Full Servo Thermoforming Machine DH600-L
High Speed Full Servo Thermoforming Machine DH600-L
High Speed Full Servo Thermoforming Machine DH600-L
High Speed Full Servo Thermoforming Machine DH600-L
High Speed Full Servo Thermoforming Machine DH600-L
High Speed Full Servo Thermoforming Machine DH600-L
High Speed Full Servo Thermoforming Machine DH600-L
High Speed Full Servo Thermoforming Machine DH600-L
High Speed Full Servo Thermoforming Machine DH600-L
High Speed Full Servo Thermoforming Machine DH600-L
Specifications
Model Number :
DH600-L Thermoforming Machine
Forming Depth :
80-90mm
Certification :
CE Certification
Brand Name :
Wenzhou Beyond Machine Co., Ltd.
Forming Area :
600×500mm
Place of Origin :
CHINA
Description

High Speed Full Servo Thermoforming Machine DH600-L

Full Servo Thermoforming Machine DH600-L

Product Overview

Features:

  • Energy Consumption — 8-11 kWh per hour
  • Compact Design, High Output
  • 7-ton heavy-duty build for stable, reliable production.
  • Full Servo Control

Scope of Application

High Speed Full Servo Thermoforming Machine DH600-L High Speed Full Servo Thermoforming Machine DH600-L High Speed Full Servo Thermoforming Machine DH600-L High Speed Full Servo Thermoforming Machine DH600-L
Food Packaging Box Plastic Cup Lid Sauce Cup Clamshell
High Speed Full Servo Thermoforming Machine DH600-L High Speed Full Servo Thermoforming Machine DH600-L High Speed Full Servo Thermoforming Machine DH600-L High Speed Full Servo Thermoforming Machine DH600-L
Food Container Blueberry Box Fruit Packaging Box Food Trays


Define the packaging requirement


Product family Details to send before mold design
Food containers Length, width and depth; number of compartments; whether the container uses a separate lid or sealing film; how the empty containers should stack.
Trays Length, width and depth; what the tray will hold; any pockets or raised sections; rim requirements.
Clamshells Dimensions when open and closed; a sample showing the hinge and closure.
Cup or bowl lids A sample of the matching cup or bowl; lid diameter and height; flat or dome shape; any drinking or vent openings.

Send a product photo, sample or drawing, together with the sheet material, sheet thickness and required output. If you do not have a drawing, start with clear photos and basic measurements.

We first check the material, product depth and complete mold layout against the machine specifications. During a trial, use the intended sheet and check the finished shape, cut edges, lid fit or closure, and stacking. Record the running conditions and accepted output so the proposed configuration can be evaluated against your production needs.

Technical Specifications Of DH600 Thermoforming Machine


 DH600 DH600-L
Suitable Material
PET,PS,PLA,PVC
Max. Forming Area
600×500mm
Max. Forming Depth 80-90mm
Material Thickness 0.15-0.8mm
Working Speed 20-30 cycles/min 20-28 cycles/min
Max. Sheet Width 625mm
Max. Sheet Roll Dia. 1200mm
Max. Forming Force 300kN
Max. Cutting Force 400kN
Heating Power 36kW
Total Rated Power 40kW
Average Power Consumption 8-11 kW (speed-dependent)
Air Pressure 0.6-0.8Mpa
Air Consumption >2m³/min (at maximum operating speed)
Cooling Water Consumption 2m³/h 1.5m³/h
Dimension(L×W×H) 8.7×1.4×2.5m 9.5×1.4×2.5m
Weight 7000kg 7900kg
Power Supply 380V, 3Ph, 50Hz

Thermoforming Process

High Speed Full Servo Thermoforming Machine DH600-L High Speed Full Servo Thermoforming Machine DH600-L
High Speed Full Servo Thermoforming Machine DH600-L
HEATING FORMING PUNCHING
High Speed Full Servo Thermoforming Machine DH600-L High Speed Full Servo Thermoforming Machine DH600-L High Speed Full Servo Thermoforming Machine DH600-L

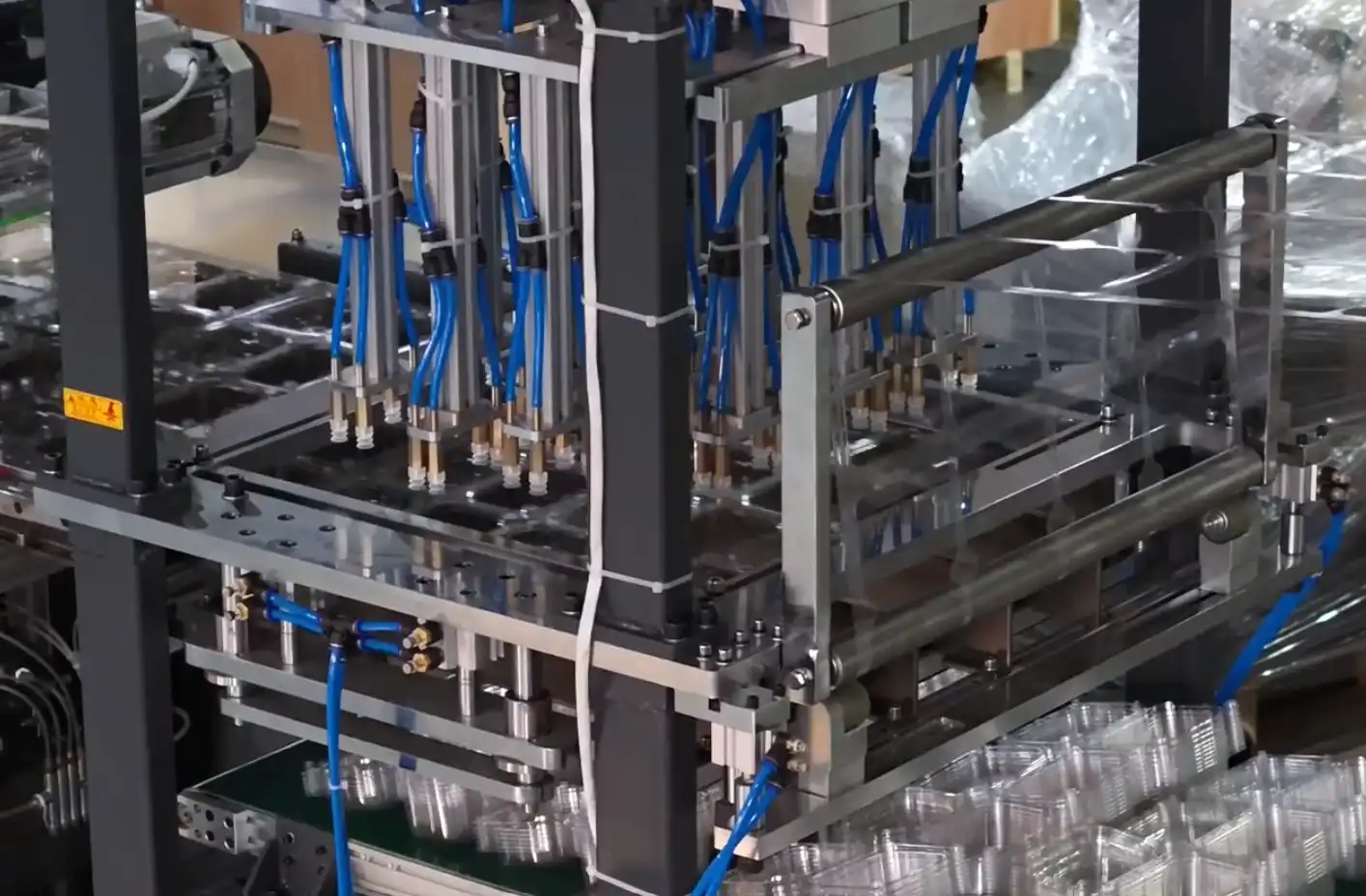

CUTTING STACKING WINDING

Prepare the installation review

Separate total rated power from average running consumption. The standard power supply is 380 V, 3 phase, 50 Hz. Compare the air and cooling figures above with your plant capacity, and add roll-loading, mold-handling access to the machine footprint.

Frequently asked questions


Should I choose DH600 or DH600-L?

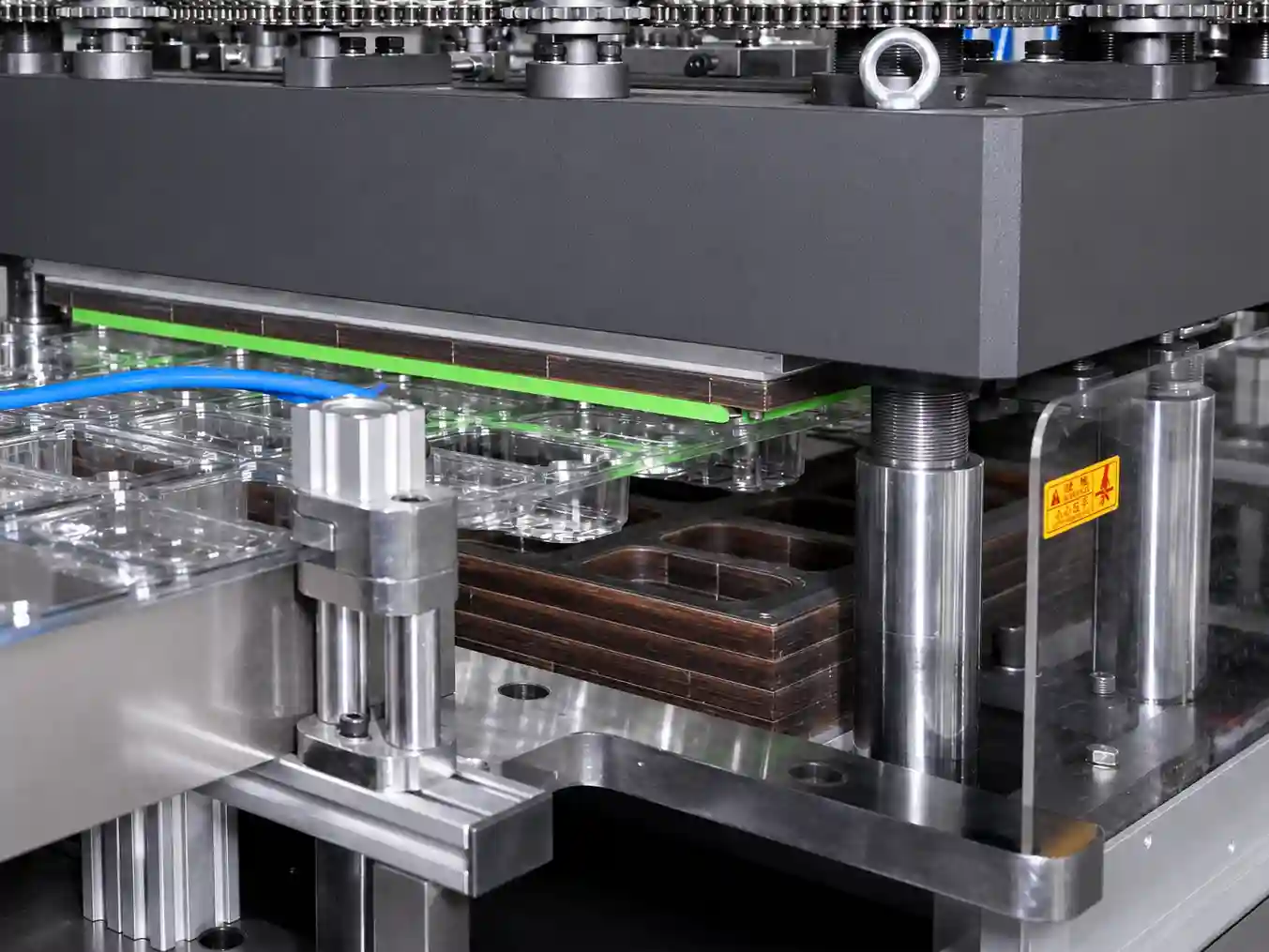

DH600 integrates cutting and stacking in one unit and uses a steel cutting die.
DH600-L separates cutting and stacking and uses a laser cutting die.
These are two different approaches with no inherent advantage or disadvantage — the right choice depends on your actual production conditions.

What product details are needed to select laser steel rule die cutting?

Send the product drawing with the rim, corners, holes and openings marked, together with the actual sheet and thickness. Review the cut line, part release and pickup arrangement.
