Plastic Vertical Injection Molding Machines Standard Type
Plastic Vertical Injection Molding Machines Standard Type
Specifications
Brand Name :
LIZHU
Model Number :
LZ-Standard
Certification :
CE, CSA
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
12 pcs/month
Delivery Time :
7 Days
Packaging Details :
Carton Packing
Name :
Injection Molding Machine For Plastic
Warranty :
One year
Machine Color :
Customized
Machine weight :
2.3tons
Clamping force :
30tons
Automatic :
Full Auto
Description

Vertical Injection Molding Machines Standard Type

Vertical Rubber Injection Machine Single Slide Cable Molding Machine

1. Description:

Vertical injection molding machines carry out the same tasks as traditional horizontal machines, despite being oriented to operate on the vertical axis. This kind of machine is offered in hydraulic, electric, and hybrid executions to suit a range of customer needs. Vertical injection molding machines occupy very little floor space as a result of their orientation. (Watch this video for a 360 view). Vertical injection molding machines are especially well suited for insert molding applications. Components can be easily loaded into the mold and held there by gravity prior to overmolding. Vertical injection molding machines frequently include a shuttle or rotary table to enable loading and demolding to take place during the cycle time of the machine (see images below).

2. Sepcifications:

Item Unit LZ-D
Injection Unit Screw Diameter mm Ø40 Ø45 Ø50
Injection Pressure Kg/cm2 2116 1548 1107
Theoretical Shot Volume cm3 215 262 318
Shot Weight(PS) g 153 232 226
oz 6.3 7.3 9.5
Injection Rate cm3/sec 162 216 247
Screw Stroke mm 143
Screw Rate rpm 0-250
Injection speed mm/s 142
Nozzle Stroke mm 385
Clamping Force Clamping Force tons 100
Opening Force tons 18
Sliding Plate Size mm 550*521
Plate Size mm 565*1170
Rotary Table Diameter mm 1100
Sliding Table Stroke mm -
Max Mold Size mm 570*360
Min Mold Thickness mm 300(50+50)
Opening Stroke mm 250
Max Opening Stroke mm 550(50+50)
Position tolerance mm ±0.03
Ejector Unit Ejector Stroke mm 50/110
Ejector Force Tons 6
Ejector Diameter mm 25
Ejector PCS. pcs 1
Hybrid Unit Oil Tank Volume liters 150
Cold Water Volume Liters/min 168
Servo Motor kw 25
Heating Volume kw 14
Total Wattage kw 35
Others Machine Weight tons 3.9
Machine Size m ---

3. Machine Features:

Our insert series is the ideal choice for insert molding. The machine's wide range of options and adaptable machine concept allow for customization to meet your particular needs. Special automation can be added with no problems. You make a targeted investment and acquire a cost-effective system.during the machine's cycle time, molding will take place.

4. Pictures:

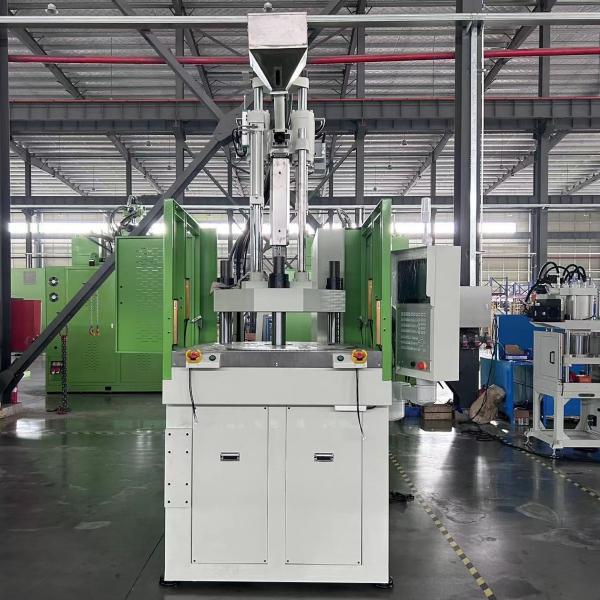

Plastic Vertical Injection Molding Machines Standard Type

5. FAQ:

1) Are you a manufacturer or a trading company?

We are professional vertical injection molding machine manufacturer in China.

2) Why Choose you?

We have high quality, professional team, good service, and competitive prices.

3) How can you guarantee quality?

Our professional team will give good suggestion and designing before start production, and always final Inspection before shipment.

4) Do you accept my own design?

We can provide OEM/ODM service.

5) When can I get my machine after I paid?

We will deliver the machines on time as the date we agreed.
