Automatic Vertical Injection Machine Customized Vertical Moulding machine
Automatic Vertical Injection Machine Customized Vertical Moulding machine
Specifications
Brand Name :
LIZHU
Model Number :
LZ-Standard
Certification :
CE, CSA
Place of Origin :
China
MOQ :
1 SET
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
12 pcs/month
Delivery Time :
7 Days
Packaging Details :
Carton Packing
Name :
Vertial Injection Moulding Machine
Warranty :
1 years after purchase
Machine Color :
Customized
Machine weight :
2.7tons
Clamping force :
35tons
Automatic :
Full Auto
Description

Automatic Vertical Injection molding Machine

Vertical injection molding machines perform the same tasks as traditional horizontal machines, despite being oriented to operate on the vertical axis. This kind of machine is offered in hydraulic, electric, and hybrid executions to satisfy a range of customer needs. Vertical injection molding machines occupy very little floor space as a result of their orientation. (Watch this video for a 360 view). Vertical injection molding machines are especially well suited for insert molding applications. Components can be easily loaded into the mold and held there by gravity prior to overmolding. To allow loading and demolding to happen during the machine's cycle time, vertical injection molding machines frequently have a shuttle or rotary table. (see images below).

2. Sepcifications:

Type Unit LZ-1600/LZ-1600D/LZ-1600-2R
Injection unit Screw dia. mm 50 55 60
Injection pressure kg/cm2 2150 1777 1493
Theoretical shot volume cm3 392 475 565
Shot weight g 350 420 500
oz 12.2 14.8 17.6
Injection rate cm3/sec 235 284 339
Screw stroke mm 200
Screw rate rpm 0-350
Injection speed mm/s 120
Temperature section(zone) - 5
Clamping unit Clamping force tons 160
Opening force tons 20
Fixed table Table size mm 1060*800
Tie bar mm 760*500
Single sliding table size mm 750*750
Rotary table Table size mm 1600
Max mold size mm 750*600
Min. mold thickness mm 350
Opening stroke mm 350
Opening daylight mm 700
Max. mold weight kg 1500
Electric unit Ejector force tons 6
Ejector stroke mm 50 100
Max. pressure kg/cm2 140
Pump output volume liters/min 180
Oil tank volume liters 480(Fixed table)/560(sliding.rotary)
Cooling water volume liters/hr 80
Servo Motor kw 37 48
Heater kw 16
Total wattage kw 53 53 64
Others Machine weight tons 7.9 8.5 11
Machine size m L2.9*W1.8*H4.8 L3.3*W1.8*H4.9 L3.4*W2.4*H4.9

3. Machine Features:

Our insert series represents your best option for molding inserts. The machine's extensive options and flexible machine concept enable you to tailor it to your unique needs. Sophisticated automation is easily added. You make wise financial decisions and purchase a reasonably priced system.During the cycle time of the machine, molding will take place.

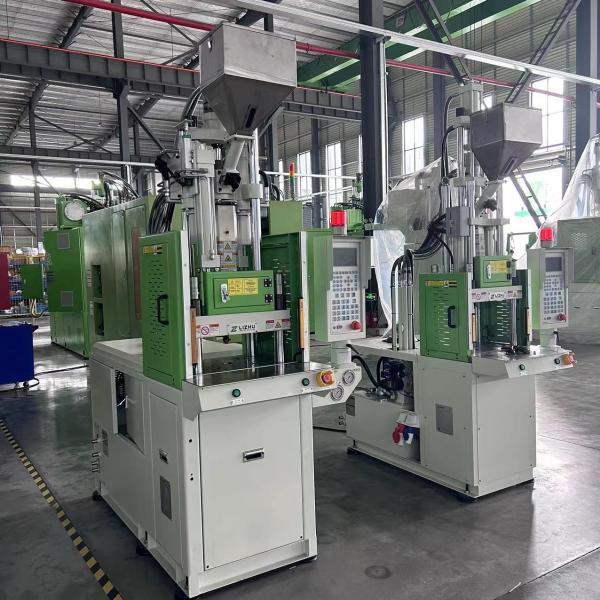

4. Pictures:

Automatic Vertical Injection Machine Customized Vertical Moulding machine

5. FAQ:

1) Are you a manufacturer or a trading company?

We are professional vertical injection molding machine manufacturer in China.

2) Why Choose you?

We have high quality, professional team, good service, and competitive prices.

3) How can you guarantee quality?

Our professional team will give good suggestion and designing before start production, and always final Inspection before shipment.

4) Do you accept my own design?

We can provide OEM/ODM service.

5) When can I get my machine after I paid?

We will deliver the machines on time as the date we agreed.
