Omron Temperature Controller and S Contactor 20mm PVC Double Pipe Extrusion Machine Line with High Capacity from Japan
Omron Temperature Controller and S Contactor 20mm PVC Double Pipe Extrusion Machine Line with High Capacity from Japan
Omron Temperature Controller and S Contactor 20mm PVC Double Pipe Extrusion Machine Line with High Capacity from Japan
Omron Temperature Controller and S Contactor 20mm PVC Double Pipe Extrusion Machine Line with High Capacity from Japan
Omron Temperature Controller and S Contactor 20mm PVC Double Pipe Extrusion Machine Line with High Capacity from Japan
Omron Temperature Controller and S Contactor 20mm PVC Double Pipe Extrusion Machine Line with High Capacity from Japan
Omron Temperature Controller and S Contactor 20mm PVC Double Pipe Extrusion Machine Line with High Capacity from Japan
Omron Temperature Controller and S Contactor 20mm PVC Double Pipe Extrusion Machine Line with High Capacity from Japan
Specifications
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Core Components :
Engine, Bearing, Gear, Pump
Type :
Pipe Production Line
Pipe Material :
PVC
Application :
Drain Pipe
Place of Origin :
Shandong, China
Brand Name :
Deerma
Voltage :
220/380/415/420/440V or customized
Power(w) :
80kw / 60kw
Dimension(L*W*H) :
26m*2m*2m
Weight :
8 kg
Warranty :
1 Year
Key Selling Points :
High Productivity
Machine name :
20mm PVC Double Pipe Extrusion Machine Line with high capacity
Extruder :
SJZ51/105
PVC Pipe Diameter :
16-40mm
Tractor speed :
0.8-10m/min
Capacity :
70kg/h - 120kg/h
Main Motor :
S BEIDE 37 kw
Contactor :
S
Inverter :
ABB/DELTA/S
Temperature Controller :
Omron FROM JAPAN
Guarantee period :
12 months
Price :
CN¥216,450.00/sets 1-1 sets
Description

20mm PVC Double Pipe Extrusion Machine Line with high capacity

Features of our machine PVC Pipe Making Machine:

PVC electrical conduit pipe extrusion line is used to produce pvc electric conduit pipe with diamater from 16 to 63mm, which are flexible, bendable in the aspect of electric wire protecting.

Capacity: Conical twin-screw extruder, suitable for process PVC powder with high capacity

Diameter: Friend machinery succeed in designing and producing the biggest conical twin-screw extruder in the world.

Auxiliary machine closely meet customer specifications. Nice apperance, automatic control and stable running performance.

1

SJSZ51/105 Conical Twin Srew Plastic Extruder

1set

2

 Mould

1set

3

Vacuum Calibration Tank

1set

4

Two s Hauling Machine –

1set

5

Pipe Cutting Machine

1set

6

Stacker

1set

Machine Picture

1.The extruder and haul-off adopt imported AC frequency control device, vacuum pump and haul-off motors adopt high-quality brand.

2.The haul-off methods are two-claw, three-claw, four-claw, six-claw, eight-claw etc.
3.You may choose saw cutting type or planetary cutting type. It is additionally attached with the length counter and intensifying device.
4.The equipment is with the reliable performance and high production efficiency.

1. SJSZ65/132 Twin screw extruder machine:

Omron Temperature Controller and S Contactor 20mm PVC Double Pipe Extrusion Machine Line with High Capacity from Japan

Screw and Barrel: Design for CPVC material, Screw and Barrel Material 38CrMoAlA,Nitriding, Surface Chrome plate, Nitriding Layer Thickness:0.5~0.7mm, Surface Rigidity:800~900HV.

2. Double Pipe Mould

Omron Temperature Controller and S Contactor 20mm PVC Double Pipe Extrusion Machine Line with High Capacity from Japan

Extrusion mold material: 40Cr. Calibration mold material: Wearable tin bronze ZQSn5-2-5.

3. Vacuum calibration tank

Omron Temperature Controller and S Contactor 20mm PVC Double Pipe Extrusion Machine Line with High Capacity from Japan

Calibration Tank Length: 6m, Adopt 3mm thickness stainless steel board, Adopt 0.75KW Gearbox Speed Reducer Motor, Adjusting Distance equal to 800mm

4. Haul off and cutting machine

Omron Temperature Controller and S Contactor 20mm PVC Double Pipe Extrusion Machine Line with High Capacity from Japan

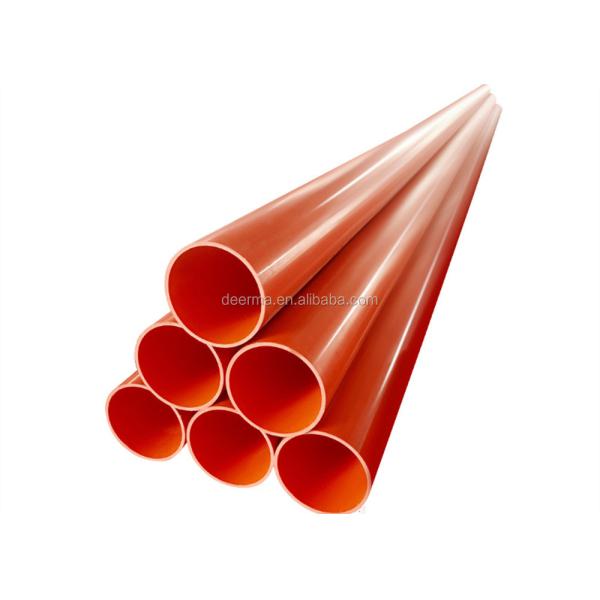

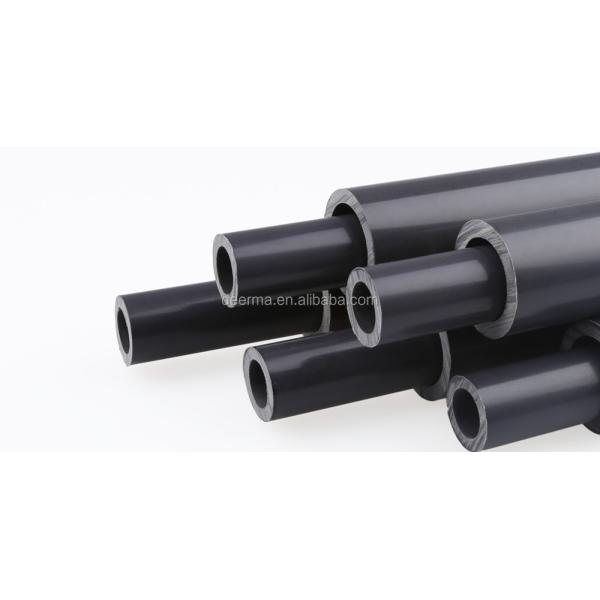

Finished Products

Omron Temperature Controller and S Contactor 20mm PVC Double Pipe Extrusion Machine Line with High Capacity from Japan

Omron Temperature Controller and S Contactor 20mm PVC Double Pipe Extrusion Machine Line with High Capacity from Japan

Packaging & Shipping

Omron Temperature Controller and S Contactor 20mm PVC Double Pipe Extrusion Machine Line with High Capacity from Japan

Certifications
