Specifications
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Core Components :
Engine, Bearing, Gear, Pump
Type :
Pipe Production Line
Pipe Material :
PVC
Application :
Drain Pipe
Place of Origin :
Shandong, China
Brand Name :
Deerma
Voltage :
220/380/415/420/440V or customized
Power(w) :
80kw / 60kw
Dimension(L*W*H) :
26m*2m*2m
Weight :
8 kg
Warranty :
1 Year
Key Selling Points :
High Productivity
Machine name :
pvc pipe extrusion machine / pvc pipe making machine
Extruder :
SJZ65/132
PVC Pipe Diameter :
20-110mm
Tractor speed :
0.8-10m/min
Capacity :
180kg/h - 250kg/h
Main Motor :
S BEIDE 37 kw
Contactor :
S
Inverter :
ABB/DELTA/S
Temperature Controller :
Omron FROM JAPAN
Guarantee period :
12 months
Price :
CN¥252,525.00/sets 1-1 sets
Description
Product Description

Production Process

1. (PVC Powder +CACO + additive ) → Mixing (300/600 Mixer Machine)
2. SJZ65/132 PVC Pipe Production Line (Extruder - Vacuum Calibration - Haul off - Printer -Cutter- Stacket - Belling)
3.Auxiliary Machines (Mixer , Crusher , Printer , Belling ....)

SPECIFICATIONS FOR PVC TWIN PIPE MACHINE (16-63MM)
PVC Pipe Diameter
16-40mm dual
20-63mm dual
Extruder mode
SJZ51/105
SJZ65/132
Extruder power
18.5kw AC
37kw AC
Line Speed
0.5-10 m/min
0.5-15 m/min
Max Capaity
120kg/h
250kg/h
SPECIFICATIONS FOR PVC PIPE MACHINE (16-630MM)
PVC Pipe Diameter
20-63mm
75-200mm
160-315mm
315-630mm
Extruder mode
SJZ51/105
SJZ65/132
SJZ80/156
SJZ92/188
Extruder power
18.5kw AC
37kw AC
55kw AC
110kw AC
Line Speed
0.5-10 m/min
0.5-8 m/min
0.5-6 m/min
0.5-4 m/min
Max capacity
120kg/h
250kg/h
350kg/h
600kg/h
Pvc Pipe Extrusion Machine Main Motor S BEIDE 37 kw Tractor Speed 0.8-10m/min for Production


SJZ-XX Twin Screw Extruder


1. Main Motor : S BEIDE

2. Gearbox & Distributor case : GUOMAO

3. Screw & Barrel : ZHOUSHAN

4. Temperature meter : OMRON

5. Inverter: ABB


Vacuum Calibration Unit


1. Adjust the positioning in X, Y and Z axis

2. Equipped with Vacuum bump & water pump

3. Material : Stainless Steel

4. Calibration (Diameter and thickness of Pvc pipe)

5. Famous Electric

Pvc Pipe Extrusion Machine Main Motor S BEIDE 37 kw Tractor Speed 0.8-10m/min for Production
Pvc Pipe Extrusion Machine Main Motor S BEIDE 37 kw Tractor Speed 0.8-10m/min for Production

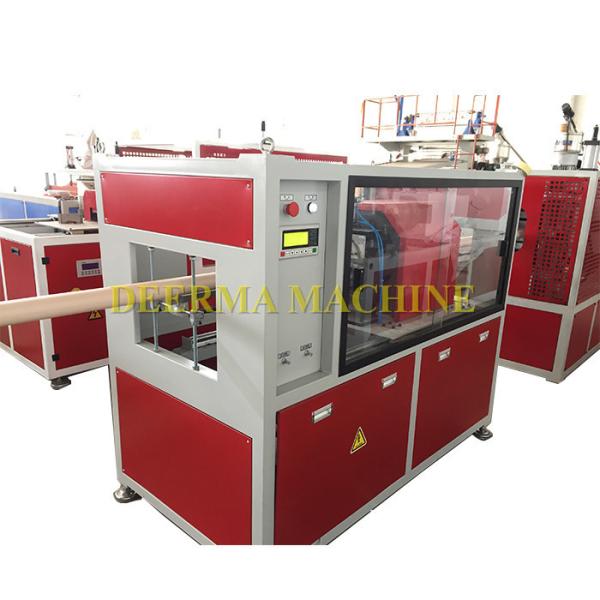

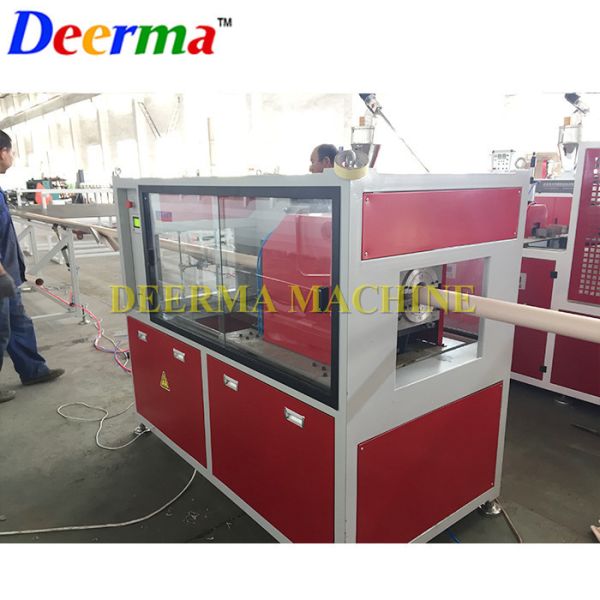

Haul- off unit & Cutter Unit


1.Tractor motor speed control:frequency control

2.Traction speed: 0.5-8m /min

3.Cutting way:Saw cutting

4.Clamping move:Manual operated



Stacker


1. Material : Stainless Steel

2. Air operator turn over

3.Automatically pushes the material, decides long cuts

Pvc Pipe Extrusion Machine Main Motor S BEIDE 37 kw Tractor Speed 0.8-10m/min for Production
Packing & Delivery
Packing Details
1.Mold package: Wooden package.
2.Outside package:Stretch film
3.Loading Qty : 2x40GP for one production line (PVC Foam Board Machine)
Delivery Details
30-45 days after received deposit
Pvc Pipe Extrusion Machine Main Motor S BEIDE 37 kw Tractor Speed 0.8-10m/min for Production
Pvc Pipe Extrusion Machine Main Motor S BEIDE 37 kw Tractor Speed 0.8-10m/min for Production
Pvc Pipe Extrusion Machine Main Motor S BEIDE 37 kw Tractor Speed 0.8-10m/min for Production
Pvc Pipe Extrusion Machine Main Motor S BEIDE 37 kw Tractor Speed 0.8-10m/min for Production
Pvc Pipe Extrusion Machine Main Motor S BEIDE 37 kw Tractor Speed 0.8-10m/min for Production
Pvc Pipe Extrusion Machine Main Motor S BEIDE 37 kw Tractor Speed 0.8-10m/min for Production
Pvc Pipe Extrusion Machine Main Motor S BEIDE 37 kw Tractor Speed 0.8-10m/min for Production
Pvc Pipe Extrusion Machine Main Motor S BEIDE 37 kw Tractor Speed 0.8-10m/min for Production
Certifications
Pvc Pipe Extrusion Machine Main Motor S BEIDE 37 kw Tractor Speed 0.8-10m/min for Production
Pvc Pipe Extrusion Machine Main Motor S BEIDE 37 kw Tractor Speed 0.8-10m/min for Production
Pvc Pipe Extrusion Machine Main Motor S BEIDE 37 kw Tractor Speed 0.8-10m/min for Production
Pvc Pipe Extrusion Machine Main Motor S BEIDE 37 kw Tractor Speed 0.8-10m/min for Production
Certification
Certified By
Certificate No.
ISO 9001:2008
Beijing Hangxie Certification Center Co., Ltd.,CNAS
03413Q21640R1M
CE
European Inspection and Certification Company S.A.
CN.CE.0680-10/10
TUV
TÜV Rheinland
7467484_P+T
SGS
SGS-CSTC Standards Technical Services Co.,Ltd
QIP-ASR155278
Main Product Lines Verification
TÜV Rheinland
7467487_P+T
Our Service

Pre-Sales Service

1.Inquiry and consulting support.
2.Sample testing support.
3.View our Factory

After-Sales Service

1.Training how to instal the machine, training how to use the machine.
2.Engineers available to service machinery overseas.
