S BEIDE 22 kw Main Motor 63mm PVC Plastic Pipe Twin Screw Extruder for Precise Manufacturing
S BEIDE 22 kw Main Motor 63mm PVC Plastic Pipe Twin Screw Extruder for Precise Manufacturing
S BEIDE 22 kw Main Motor 63mm PVC Plastic Pipe Twin Screw Extruder for Precise Manufacturing
S BEIDE 22 kw Main Motor 63mm PVC Plastic Pipe Twin Screw Extruder for Precise Manufacturing
S BEIDE 22 kw Main Motor 63mm PVC Plastic Pipe Twin Screw Extruder for Precise Manufacturing
S BEIDE 22 kw Main Motor 63mm PVC Plastic Pipe Twin Screw Extruder for Precise Manufacturing
S BEIDE 22 kw Main Motor 63mm PVC Plastic Pipe Twin Screw Extruder for Precise Manufacturing
S BEIDE 22 kw Main Motor 63mm PVC Plastic Pipe Twin Screw Extruder for Precise Manufacturing
S BEIDE 22 kw Main Motor 63mm PVC Plastic Pipe Twin Screw Extruder for Precise Manufacturing
S BEIDE 22 kw Main Motor 63mm PVC Plastic Pipe Twin Screw Extruder for Precise Manufacturing
Specifications
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Core Components :
Engine, Bearing, Gear, Pump
Type :
Pipe Production Line
Pipe Material :
PVC
Application :
Drain Pipe
Place of Origin :
Shandong, China
Brand Name :
Deerma
Voltage :
220/380/415/420/440V or customized
Power(w) :
80kw / 60kw
Dimension(L*W*H) :
26m*2m*2m
Weight :
8 kg
Warranty :
1 Year
Key Selling Points :
High Productivity
Machine name :
63mm PVC plastic pipe twin screw extruder
Extruder :
SJZ51
PVC Pipe Diameter :
16-63mm
Tractor speed :
0.8-10m/min
Capacity :
70kg/h - 120kg/h
Main Motor :
S BEIDE 22 kw
Contactor :
S
Inverter :
ABB/DELTA/S
Temperature Controller :
Omron FROM JAPAN
Guarantee period :
12 months
Price :
CN¥216,450.00/sets 1-1 sets
Description
Product Description

Production Process

Screw Loader for Mixer→ Mixer unit→ Screw Loader for Extruder→ Twin conical screw extruder → Mould → Vacuum Calibration Tank → Haul-off → Planetary Cutter → Belling machine/ Stacker → Final Product Inspecting &Packing.


1. (PVC Powder +CACO + additive ) → Mixing (300/600 Mixer Machine)
2. SJZ65/132 PVC Pipe Production Line (Extruder - Vacuum Calibration - Haul off - Printer -Cutter- Stacket - Belling)
3.Auxiliary Machines (Mixer , Crusher , Printer , Belling ....)

SPECIFICATIONS FOR PVC TWIN PIPE MACHINE (16-63MM)
PVC Pipe Diameter
16-40mm dual
20-63mm dual
Extruder mode
SJZ51/105
SJZ65/132
Extruder power
18.5kw AC
37kw AC
Line Speed
0.5-10 m/min
0.5-15 m/min
Max Capaity
120kg/h
250kg/h
SPECIFICATIONS FOR PVC PIPE MACHINE (16-630MM)
PVC Pipe Diameter
20-63mm
75-200mm
160-315mm
315-630mm
Extruder mode
SJZ51/105
SJZ65/132
SJZ80/156
SJZ92/188
Extruder power
18.5kw AC
37kw AC
55kw AC
110kw AC
Line Speed
0.5-10 m/min
0.5-8 m/min
0.5-6 m/min
0.5-4 m/min
Max capacity
120kg/h
250kg/h
350kg/h
600kg/h

Application for PVC Pipe

1).Water supply, drainage pipelines in building;
2).Rainwater drainage pipelines in building;
3).Electrical wiring pipe in building;
4).Air conditioning condensate water systems.
S BEIDE 22 kw Main Motor 63mm PVC Plastic Pipe Twin Screw Extruder for Precise Manufacturing

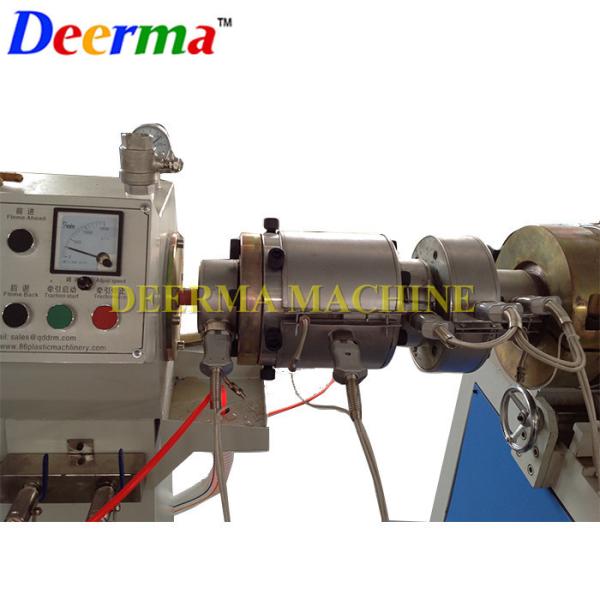

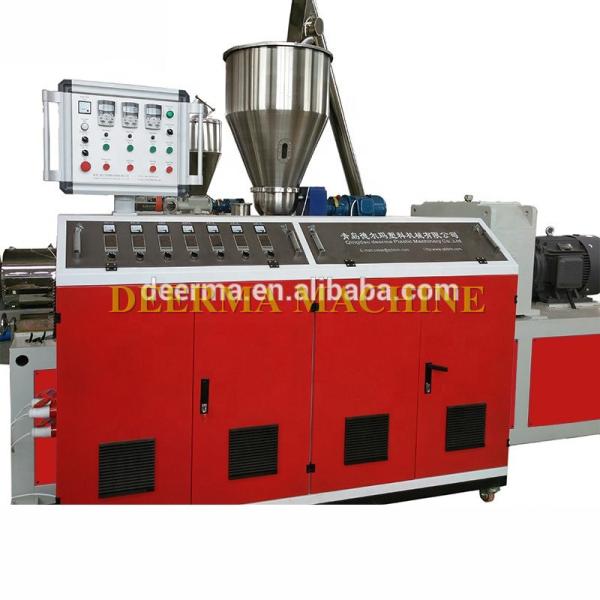

SJZ-XX Twin Screw Extruder


1. Main Motor : S BEIDE

2. Gearbox & Distributor case : GUOMAO

3. Screw & Barrel : ZHOUSHAN

4. Temperature meter : OMRON

5. Inverter: ABB

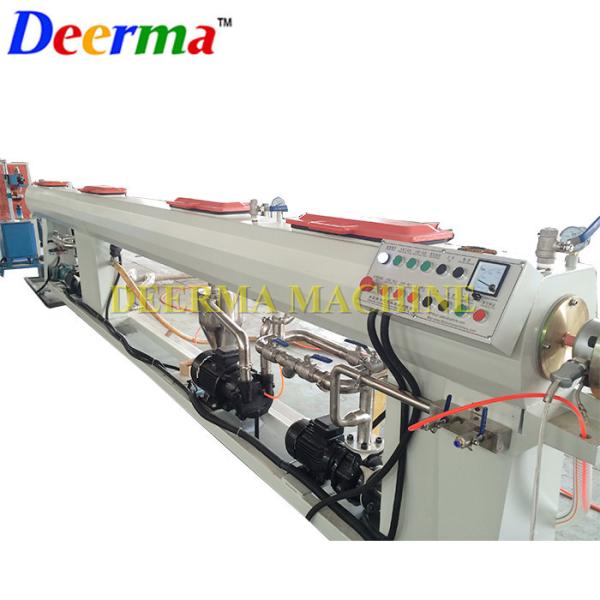

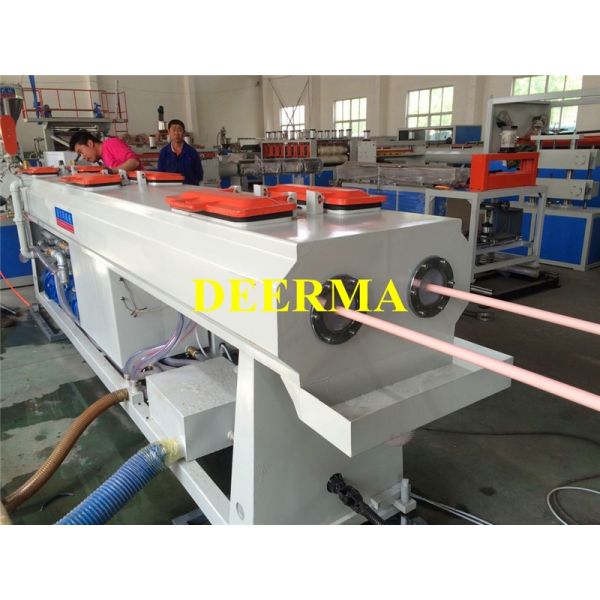

Vacuum Calibration Unit

1.Tank materials: 4mm 304 S. S.Materials
2.Water temperature and level controlling technology;
3.High pressure and stable water jet.
4.Pressure protection design
S BEIDE 22 kw Main Motor 63mm PVC Plastic Pipe Twin Screw Extruder for Precise Manufacturing
S BEIDE 22 kw Main Motor 63mm PVC Plastic Pipe Twin Screw Extruder for Precise Manufacturing

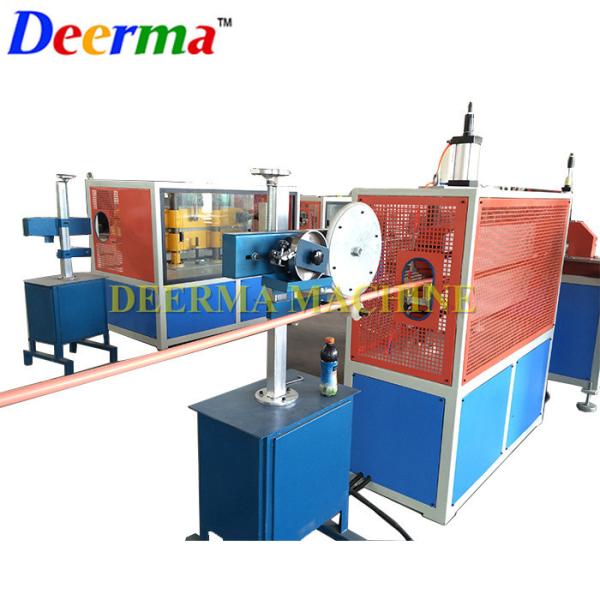

Haul- off unit & Cutter Unit


1.Tractor motor speed control:frequency control

2.Traction speed: 0.5-8m /min

3.Cutting way:Saw cutting

4.Clamping move:Manual operated



Stacker


1. Material : Stainless Steel

2. Air operator turn over

3.Automatically pushes the material, decides long cuts

S BEIDE 22 kw Main Motor 63mm PVC Plastic Pipe Twin Screw Extruder for Precise Manufacturing
Packing & Delivery
Packing Details
1.Mold package: Wooden package.
2.Outside package:Stretch film
3.Loading Qty : 1x40GP for one production line (PVC Pipe Machine)
Delivery Details
30-45 days after received deposit
S BEIDE 22 kw Main Motor 63mm PVC Plastic Pipe Twin Screw Extruder for Precise Manufacturing
S BEIDE 22 kw Main Motor 63mm PVC Plastic Pipe Twin Screw Extruder for Precise Manufacturing
S BEIDE 22 kw Main Motor 63mm PVC Plastic Pipe Twin Screw Extruder for Precise Manufacturing
S BEIDE 22 kw Main Motor 63mm PVC Plastic Pipe Twin Screw Extruder for Precise Manufacturing
S BEIDE 22 kw Main Motor 63mm PVC Plastic Pipe Twin Screw Extruder for Precise Manufacturing
S BEIDE 22 kw Main Motor 63mm PVC Plastic Pipe Twin Screw Extruder for Precise Manufacturing
S BEIDE 22 kw Main Motor 63mm PVC Plastic Pipe Twin Screw Extruder for Precise Manufacturing
S BEIDE 22 kw Main Motor 63mm PVC Plastic Pipe Twin Screw Extruder for Precise Manufacturing
Certifications
S BEIDE 22 kw Main Motor 63mm PVC Plastic Pipe Twin Screw Extruder for Precise Manufacturing
S BEIDE 22 kw Main Motor 63mm PVC Plastic Pipe Twin Screw Extruder for Precise Manufacturing
S BEIDE 22 kw Main Motor 63mm PVC Plastic Pipe Twin Screw Extruder for Precise Manufacturing
S BEIDE 22 kw Main Motor 63mm PVC Plastic Pipe Twin Screw Extruder for Precise Manufacturing
Certification
Certified By
Certificate No.
ISO 9001:2008
Beijing Hangxie Certification Center Co., Ltd.,CNAS
03413Q21640R1M
CE
European Inspection and Certification Company S.A.
CN.CE.0680-10/10
TUV
TÜV Rheinland
7467484_P+T
SGS
SGS-CSTC Standards Technical Services Co.,Ltd
QIP-ASR155278
Main Product Lines Verification
TÜV Rheinland
7467487_P+T
Our Service

Pre-Sales Service

1.Inquiry and consulting support.
2.Sample testing support.
3.View our Factory

After-Sales Service

1.Training how to instal the machine, training how to use the machine.
2.Engineers available to service machinery overseas.

Related Products
S BEIDE 22 kw Main Motor 63mm PVC Plastic Pipe Twin Screw Extruder for Precise Manufacturing

20-63mm PVC Pipe Machine


S BEIDE 22 kw Main Motor 63mm PVC Plastic Pipe Twin Screw Extruder for Precise Manufacturing

20-63mm PVC Double Pipe Machine


S BEIDE 22 kw Main Motor 63mm PVC Plastic Pipe Twin Screw Extruder for Precise Manufacturing

PVC Pipe Machine


PVC pipe machine
S BEIDE 22 kw Main Motor 63mm PVC Plastic Pipe Twin Screw Extruder for Precise Manufacturing
S BEIDE 22 kw Main Motor 63mm PVC Plastic Pipe Twin Screw Extruder for Precise Manufacturing
S BEIDE 22 kw Main Motor 63mm PVC Plastic Pipe Twin Screw Extruder for Precise Manufacturing

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components s, ABB,OMRON.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
