S Motor PVC Pipe Manufacturing Machinery 37kw Plastic Pipe Extruder 380V
S Motor PVC Pipe Manufacturing Machinery 37kw Plastic Pipe Extruder 380V
S Motor PVC Pipe Manufacturing Machinery 37kw Plastic Pipe Extruder 380V
S Motor PVC Pipe Manufacturing Machinery 37kw Plastic Pipe Extruder 380V
S Motor PVC Pipe Manufacturing Machinery 37kw Plastic Pipe Extruder 380V
S Motor PVC Pipe Manufacturing Machinery 37kw Plastic Pipe Extruder 380V
S Motor PVC Pipe Manufacturing Machinery 37kw Plastic Pipe Extruder 380V
S Motor PVC Pipe Manufacturing Machinery 37kw Plastic Pipe Extruder 380V
S Motor PVC Pipe Manufacturing Machinery 37kw Plastic Pipe Extruder 380V
S Motor PVC Pipe Manufacturing Machinery 37kw Plastic Pipe Extruder 380V
Specifications
Name :
pvc pipe making machine
plastic processed :
PVC
application :
PIPE, Profile, Plates
Screw Design :
Double-screw
twin screw type :
Counter-rotating conical Twin-screw
Screw Material :
38CrMoALA
screw diameter (mm) :
65
screw l/d ratio :
30:1
Screw Speed (rpm) :
55 rpm
place of origin :
Shandong, China
brand name :
DEERMA
voltage :
380V 50HZ 3Phase (Customized)
dimension(l*w*h) :
About 26m*2m*2m
power (kw) :
80
warranty :
1 Year
key selling points :
High Productivity
video outgoing-inspection :
Provided
core components :
Bearing, Pump, Gear, Engine
machinery test report :
Provided
Raw Material :
PVC Resin , CACO3, Additive
Production speed :
8-15m/min
Output Capacity :
180-250 kg/ hr
PVC Pipe :
16-63mm & 75-160mm
Total installed /Consumption power :
75.85kw / 60kw
Motor Power :
37 KW S
Inverter :
ABB
Temperature meter :
OMRON
Contactor :
SCHNEIDER
Condition :
New
Showroom Location :
Egypt, Peru, India, Russia, Thailand, Kenya, South Korea, Algeria, Romania, South Africa
Applicable Industries :
hotels, Farms, Food Shop, Construction works
Warranty of core components :
1 Year
Weight :
5 KG
Price :
CN¥180,375.00/sets >=1 sets
Description

37 KW S Motor Power PVC Pipe Making Machine / Production Line for Large-scale Production

Product Description

Production Process for pvc pipe making machine

  1. (PVC Powder +CACO + additive ) → Mixing (300/600 Mixer Machine)
  2. SJZ65/132 PVC Pipe Production Line (Extruder - Vacuum Calibration - Haul off - Printer -Cutter- Stacket - Belling)
  3. Auxiliary Machines (Mixer , Crusher , Printer , Belling ....)

pvc pipe making machine Characteristic

Pipe range

20-63mm single

20-63mm dual

75-160mm

110-315mm

315-630mm

Extruder

SJZ51/105

SJZ65/132

SJZ80/156

SJZ80/156

SJZ92/188

Extruder power

18.5kw

37kw

37kw

55kw

110kw

Extrusion capacity

120kg/h

250kg/h

250kg/h

360kg/h

800kg/h

Max. Production speed

12m/min

10m/min

6 m/min

3 m/min

1.2m/min

PVC PIPE MACHINE PICTURES

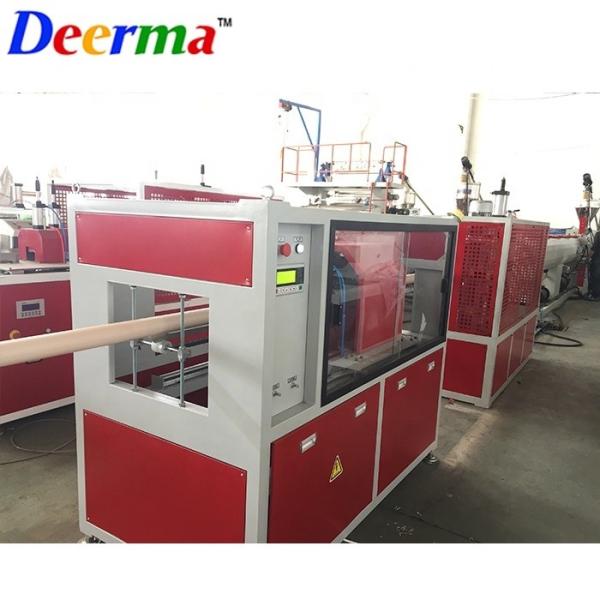

1. SJSZ-65/132 PVC PIPE MACHINE (WHOLE LINE)

S Motor PVC Pipe Manufacturing Machinery 37kw Plastic Pipe Extruder 380V

1. SJSZ-65/132 conical twin screw extruder equipped with Automatic Spring Loader

S Motor PVC Pipe Manufacturing Machinery 37kw Plastic Pipe Extruder 380V

2. Die head and Mould

S Motor PVC Pipe Manufacturing Machinery 37kw Plastic Pipe Extruder 380V

3. Vacuum calibration unit

S Motor PVC Pipe Manufacturing Machinery 37kw Plastic Pipe Extruder 380V

4.Haul- off unit

S Motor PVC Pipe Manufacturing Machinery 37kw Plastic Pipe Extruder 380V

5.Cutter unit

S Motor PVC Pipe Manufacturing Machinery 37kw Plastic Pipe Extruder 380V

Company Information

S Motor PVC Pipe Manufacturing Machinery 37kw Plastic Pipe Extruder 380V

S Motor PVC Pipe Manufacturing Machinery 37kw Plastic Pipe Extruder 380V

S Motor PVC Pipe Manufacturing Machinery 37kw Plastic Pipe Extruder 380V

S Motor PVC Pipe Manufacturing Machinery 37kw Plastic Pipe Extruder 380V

S Motor PVC Pipe Manufacturing Machinery 37kw Plastic Pipe Extruder 380V

FAQ

Q: Your company is an industrial manufacture factory or a transactional company ?

A: Deerma Company is an industry manufacture of Extrusion Machines.

Q:All of your products are made by your self or compacted via purchasing the others?

A: we have independent technical team who focus on design & development & Manufacture extrusion machines. all the products are made by our technical team.

Q:Annual Production Capacity( Previous Year)

A: About 80 lines from 2014.1 to 2014.12 and total revenue is about USD 2500000

Q: Quality Control Management

Q: Is there quality control on all production lines?

Yes, all production lines have adequate quality control

Q:Do the QA/QC inspectors work independently from the production line? Yes

Q:How many QA/QC inspectors in total? 4

Videos For Machine

PVC foam board machine:

https://youtu.be/uWyFwl8FVMw?list=PL5C0xwixgXY9W-LcSXubUgUn3sLc6p5zs

PVC marble board machine:

https://youtu.be/MddMD8Xctb0?list=PL5C0xwixgXY8aZfkkf44luo0ZhvooUaDd

PVC hollow roofing machine:

https://youtu.be/Q7BUViV6bLw

PE sheet machine:

https://youtu.be/NH9ba_RtO1Q

PVC pipe machine:

https://youtu.be/6vYFRSRhejY

https://youtu.be/tvsRtBTDxYQ

HDPE hollow wall winding machine:

https://youtu.be/fvX_9qrsDFw

HDPE pipe machine:

https://youtu.be/0HZ1YsuxlSI

3D printer filament machine:

https://youtu.be/rIVRC8Ej3HI

PVC ceiling machine:

https://youtu.be/K3SaqPFsRTM?list=PL5C0xwixgXY8nL-vTheprR7tEbPUeQOrA

WPC profile machine:

https://youtu.be/cCgP9LRf4BA?list=PL5C0xwixgXY8nL-vTheprR7tEbPUeQOrA

https://youtu.be/D47eDR1XgZ8?list=PL5C0xwixgXY8nL-vTheprR7tEbPUeQOrA

PVC corner bead machine:

https://youtu.be/lZ4Cva6WWRs?list=PL5C0xwixgXY8nL-vTheprR7tEbPUeQOrA

PET strap making machine:

https://youtu.be/7HeM6yMh8Y8?list=PL5C0xwixgXY_vu_As0D2pth05cmSNtze5

We have three this production lines in our showroom for other customer , welcome to visit our factory
