22kw PVC Pipe Machine 20mm - 63mm 20mm - 40mm Counter Rotating Extruder
22kw PVC Pipe Machine 20mm - 63mm 20mm - 40mm Counter Rotating Extruder
22kw PVC Pipe Machine 20mm - 63mm 20mm - 40mm Counter Rotating Extruder
22kw PVC Pipe Machine 20mm - 63mm 20mm - 40mm Counter Rotating Extruder
22kw PVC Pipe Machine 20mm - 63mm 20mm - 40mm Counter Rotating Extruder
22kw PVC Pipe Machine 20mm - 63mm 20mm - 40mm Counter Rotating Extruder
22kw PVC Pipe Machine 20mm - 63mm 20mm - 40mm Counter Rotating Extruder
22kw PVC Pipe Machine 20mm - 63mm 20mm - 40mm Counter Rotating Extruder
22kw PVC Pipe Machine 20mm - 63mm 20mm - 40mm Counter Rotating Extruder
22kw PVC Pipe Machine 20mm - 63mm 20mm - 40mm Counter Rotating Extruder
22kw PVC Pipe Machine 20mm - 63mm 20mm - 40mm Counter Rotating Extruder
22kw PVC Pipe Machine 20mm - 63mm 20mm - 40mm Counter Rotating Extruder
Specifications
Price :
CN¥180,375.00/sets >=1 sets
Name :
PVC Pipe Machine
plastic processed :
PVC
application :
PIPE, Profile, Plates
Screw Design :
Double-screw
twin screw type :
Counter-rotating conical Twin-screw
Screw Material :
38CrMoALA
screw diameter (mm) :
65
screw l/d ratio :
30:1
Screw Speed (rpm) :
60 rpm
place of origin :
Shandong, China
brand name :
Deerma
voltage :
380V/3P/50HZ or as local voltage
dimension(l*w*h) :
L20000*W2100*H2600mm
power (kw) :
160
warranty :
1 Year
key selling points :
High Productivity
video outgoing-inspection :
Provided
core components :
Bearing, Pump, Gear, Engine
machinery test report :
Provided
Plastic Machine :
pvc pipe production line
Product Application :
pvc water pipe , pvc garden pipe , pvc electric pipe
PVC Double Pipe Diameter :
20-63mm or 20-40mm
Haul-off Speed :
0.8-10 m /min
Output Capacity :
80-160kg/h
Drive Motor :
S
Inveter :
S /ABB / DELTA
Temperature Controller :
OMRON
Operator :
1-2 persons per shift
Power :
22kw
Condition :
New
Showroom Location :
Egypt, Peru, India, Russia, Thailand, Kenya, South Korea, Algeria, Romania, South Africa
Applicable Industries :
hotels, Farms, Home Use, Food Shop, Construction works
Warranty of core components :
1 Year
Weight :
8 KG
Description

20-63mm Or 20-40mm PVC Double Pipe Production Line Featuring Counter-Rotating Conical Twin-Screw

Technical Parameters of pvc pipe production line

PVC Pipe Diameter(mm)

16-40mm

dual pipe

20-63mm

dual pipe

20-63mm

75-200mm

160-315 mm

315-630 mm

Extruder

SJZ51/105

SJZ65/132

SJZ51/105

SJZ65/132

SJZ80/156

SJZ92/188

Extruder power (kw)

18.5AC

37AC

18.5AC

37AC

55AC

110DC

linespeed (m/min)

0.5-10

0.5-15

0.5-10

0.5-8

0.5-6

0.5-4

capacity (kg/h)

120

250

80-120

180-250

280-350

500-600

Famous Brand Show

  • S MOTOR
  • ABB/DELTA INVERTER
  • OMORN TEMPERATURE METER
  • S RELAY /CONTACTOR
  • GUOMAO Gear Box....

Testing Videos

PVC PIPE MACHINE

https://youtu.be/6vYFRSRhejY?list=PL5C0xwixgXY8Ldjujy1LsvGPKNjatQ9rs

https://youtu.be/3nOgfKQ46vs?list=PL5C0xwixgXY8Ldjujy1LsvGPKNjatQ9rs

https://youtu.be/P1VGR423OY8

PVC DOUBLE PIPE MACHINE

https://youtu.be/nlb9TqWCKGI?list=PL5C0xwixgXY8Ldjujy1LsvGPKNjatQ9rs

https://youtu.be/P1VGR423OY8

Main Composition & Pictures of pvc pipe production line

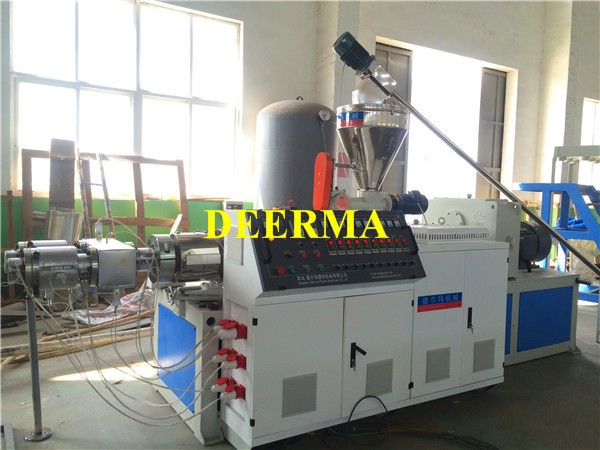

♥ SJZ51/105 or SJZ65/132 Conical Twin Screw Extruder with automation feeding unit

22kw PVC Pipe Machine 20mm - 63mm 20mm - 40mm Counter Rotating Extruder

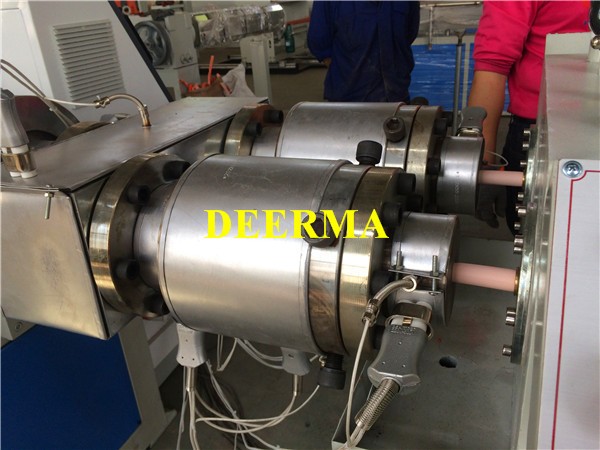

♥ Die head and Mould

22kw PVC Pipe Machine 20mm - 63mm 20mm - 40mm Counter Rotating Extruder

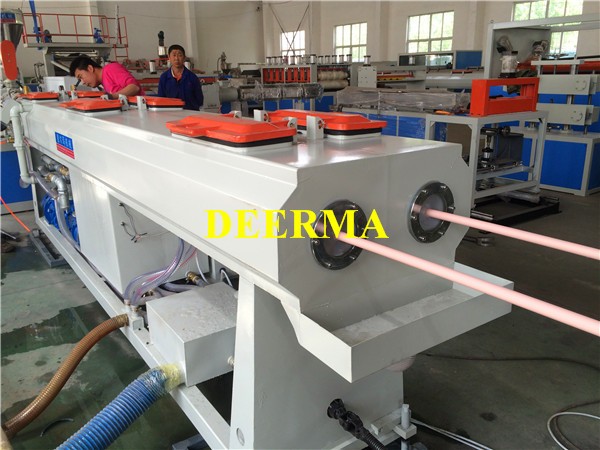

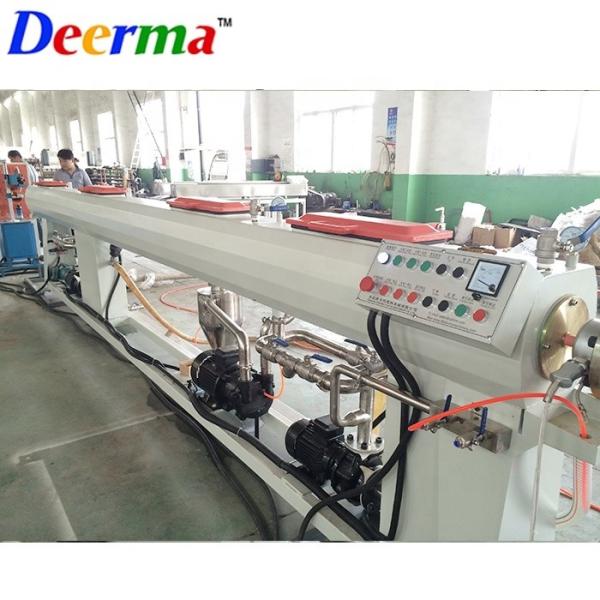

♥ Vacuum Calibration Tank

22kw PVC Pipe Machine 20mm - 63mm 20mm - 40mm Counter Rotating Extruder

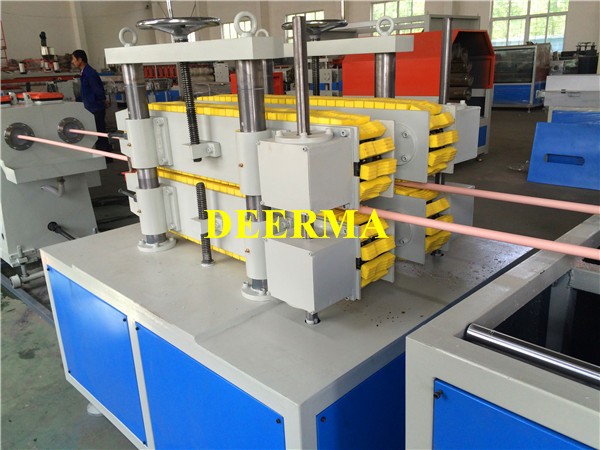

♥ Haul-off Unit

22kw PVC Pipe Machine 20mm - 63mm 20mm - 40mm Counter Rotating Extruder

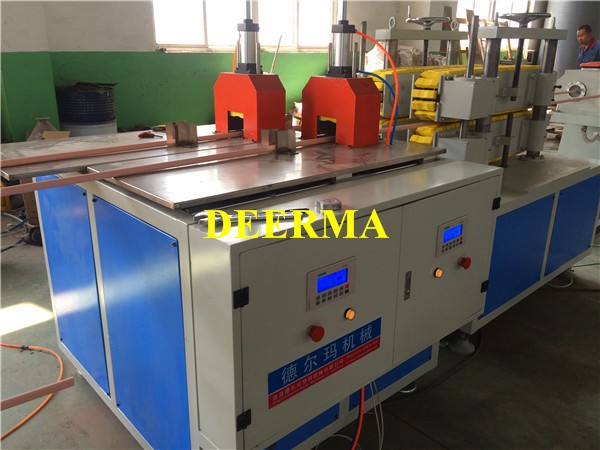

♥ Cutter Unit

22kw PVC Pipe Machine 20mm - 63mm 20mm - 40mm Counter Rotating Extruder

Certifications

Certification

Certified By

Certificate No.

Business Scope Expiry Dat

ISO 9001:2008

Beijing Hangxie Certification
Center Co., Ltd.,
CNAS


03413Q21640R1M

Design and Production of
Single-Screw Plastic Extruders
and Conical Twin-Screw
Plastic Extruders

CE

EuropeanInspection and
Certification
Company S.A.

CN.CE.0680-10/10

Plastic Extrusion Machinery &
SJ-30, SJ-45, SJ-65, SJ-90,
SJ-120, SJ-150, SJ-180,
SJ-200, SJSZ-51/105,
SJSZ-65/132, SJZS-80/156,
SJSZ-92/188

TUV

TÜV Rheinland

7467484_P+T

Production & Trade Assessment

Main Product Lines Verification Report

TÜV Rheinland

7467487_P+T

Main Product Lines Verification

SGS

SGS-CSTC Standards Technical Services Co.,Ltd
Focus Technology Co., Ltd

QIP-ASR155278

Extrusion Machine, Pipe Machine ,profile Machine, Roof Machine…

Our Services

1.Our company will provide relevant information on various technology and business consulted by customers. If clients want to visit our company, we will offer all they need for convenience.

2.After cooperation, our company designs groundsill installation chart for water, electricity and gas of equipment basing on real condition and customers’ requirements and provides detail order list and matching manufacturer for reference for customer.

3.After equipment arrival, our company will arrange professional technicians to buyer's factory for installing machines and train workers till customers can operate independently and manufactures eligible product.

4.Deerma machinery will be responsible for changing broken parts within warranty and then provide parts only with pure cost.

FAQ

QYour company is an industrial manufacture factory or a transactional company

AIndustrial Manufacture of Extrusion Machine

QAll of your products are made by your self or compacted via purchasing the others

AWe have independent technical team who focus on design & development & manufacture extrusion

QAnnual Production Capacity(Previous Year)

AAbout 80 lines from 2015.1 to 2015.12 and total revenue is about USD 2500000

QIs there quality control on all produciton lines?

AYes, all production lines have adequate quality control

QCan I get the pre-production sample ?

AYes, we will send you pp sample, after you confirm, then we will start production.

QDo the AC/QC inspectors work independently from the production line?

A Yes

QHow many AC/QC inspectors in total ?

A 4

QHow about the quality guarantee period?

AOne year
