Specifications
Warranty :
1year, 2 Year
Place of Origin :
China
Brand Name :
Umot
Model Number :
Nema17/Nema23/Nema34
Phase :
2
Type :
Hybrid, Reduction Stepper Motor
Product name :
Worm Gear Reducer Stepper Motor
Brand :
UMot
Material :
Pure copper
Maximum allowable radial load :
200-3490N
Maximum allowable shaft load :
100-698N
Frame Size :
Nema 17 23 34
Output Method :
Hole Output/Single Shaft/Double Shaft
Certification :
CE ROHS
Packaging Details :
Waterproof membrane + foam + carton / wooden box
Port :
Any port
Supply Ability :
10000 Piece/Pieces per Month
MOQ :
10 pieces
Price :
$109.26/pieces 10-199 pieces
Description
Pure Copper Nema 23 Double Shaft High Precision Self-Locking Worm Reducer Stepper Motor
Pure Copper Nema 23 Double Shaft High Precision Self-Locking Worm Reducer Stepper Motor
Motor 42mm Nema17
Worm Gear Materil
Pure cupper
Backlash
15-18 Arc Minutes
Max.Radial Load
1350N
Max.Shaft Axial Load
270N
42x40mm Rated Voltage
1.5V
Current
1.5A
42x48mm Rated Voltage
3.8V
Current
1.2A
Reduction Ratio
5/ 7.5/ 10/ 15/ 20/ 25/ 30/ 40/ 50/ 60 :1
Motor 57mm Nema23
Worm Gear Materil
Pure cupper
Backlash
15-18 Arc Minutes
Max.Radial Load
1830N
Max.Shaft Axial Load
366N
57x55mm Rated Voltage
1.7V
Current
2A
57x76mm Rated Voltage
2.1V
Current
3A
Reduction Ratio
5/ 7.5/ 10/ 15/ 20/ 25/ 30/ 40/ 50/ 60/80 :1

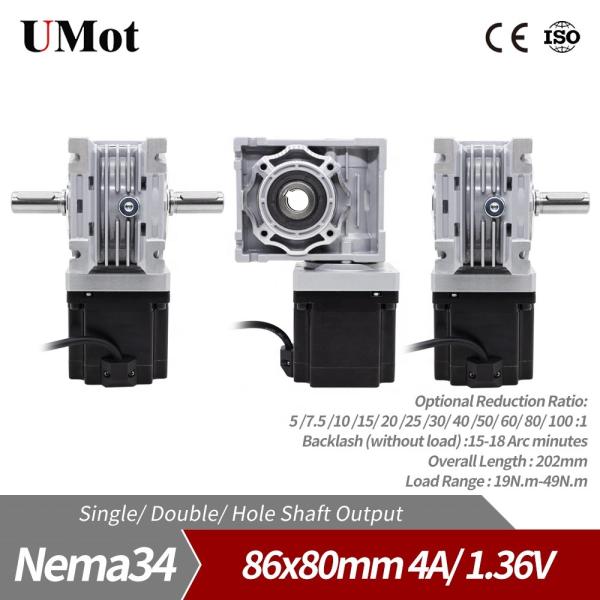

Motor 86mm Nema34
Worm Gear Materil
Pure cupper
Backlash
15-18 Arc Minutes
Max.Radial Load
3490N
Max.Shaft Axial Load
698N
86x80mm Rated Voltage
1.36V
Current
4A
Reduction Ratio
5/ 7.5/ 10/ 15/ 20/ 25/ 30/ 40/ 50/ 60/80/100 :1
Pure Copper Nema 23 Double Shaft High Precision Self-Locking Worm Reducer Stepper Motor
Pure Copper Nema 23 Double Shaft High Precision Self-Locking Worm Reducer Stepper Motor
Pure Copper Nema 23 Double Shaft High Precision Self-Locking Worm Reducer Stepper Motor
Pure Copper Nema 23 Double Shaft High Precision Self-Locking Worm Reducer Stepper Motor
Pure Copper Nema 23 Double Shaft High Precision Self-Locking Worm Reducer Stepper Motor
Pure Copper Nema 23 Double Shaft High Precision Self-Locking Worm Reducer Stepper Motor
Pure Copper Nema 23 Double Shaft High Precision Self-Locking Worm Reducer Stepper Motor
Pure Copper Nema 23 Double Shaft High Precision Self-Locking Worm Reducer Stepper Motor
Pure Copper Nema 23 Double Shaft High Precision Self-Locking Worm Reducer Stepper Motor
