Specifications
Brand Name :
JSHESOL
Certification :
SGS
Place of Origin :
Changzhou, Jiangsu,China
MOQ :
20 Cubic Meters
Price :
Negotiable
Payment Terms :
EXW/FOB/CIF
Supply Ability :
According to products
Delivery Time :
Negotiable
Packaging Details :
Carton packaging/Wooden case packaging/according to the requirements
Operating Temperature Range :
-40°C to 120°C
Thermal Conductivity :
0.02 W/mK
Material :
Polyisocyanurate Foam
Fire Rating :
Class 1
Insulation Type :
Pipe Insulation
Installation Method :
Self-adhesive or mechanical fastening
Density :
30 kg/m3
Uv Resistance :
Excellent
Compressive Strength :
150 kPa
Moisture Absorption :
0.2% by volume
Water Vapor Permeability :
0.03 ng/Pa.s.m2
Length :
6 feet (1.8 meters)
Chemical Resistance :
Resistant to most chemicals
Sound Absorption :
Excellent
Description

Product Overview


Cellular Glass is an inorganic insulation material manufactured by foaming pure glass at high temperatures. Its unique sealed honeycomb structure provides exceptional thermal performance and outstanding durability. This material is non-combustible, non-toxic, and corrosion resistant, maintaining stable performance in extreme temperature conditions from -268°C to +480°C, making it an ideal choice for both cryogenic and high-temperature applications.


Key Features


    • Exceptional Temperature Resistance
      Maintains stable thermal performance across an extensive range from -268°C to +480°C

    • Superior Moisture Protection
      Water absorption ≤0.5% by volume, water vapor permeability ≤0.005 Ng/(pa.m.s)

    • Excellent Mechanical Strength
      Compressive strength ≥0.8 MPa, flexural strength ≥0.4 MPa

    • Safety and Environmental Benefits
      Completely non-combustible, non-toxic, and chemically resistant


Technical Parameters




Test Item Unit Inspection Method Technical Data
Density kg/m³ ASTMC303 120±8%
Thermal Conductivity W/(m·K) ASTM C177 ≤0.045
Compressive Strength MPa ASTM C165 ≥0.8
Flexural Strength MPa ASTM C203 ≥0.4
Water Vapor Permeability Ng/(pa.m.s) ASTM E96 ≤0.005
Water Absorption Vol% ASTM C240 ≤0.5
Service Temperature °C - -268～+480


Applications


    • LNG storage tanks and cryogenic pipelines

    • High-temperature equipment in petrochemical industry

    • Industrial furnaces and thermal equipment

    • Building roofs and fireproof exterior walls

    • Ship cabins and special environment insulation

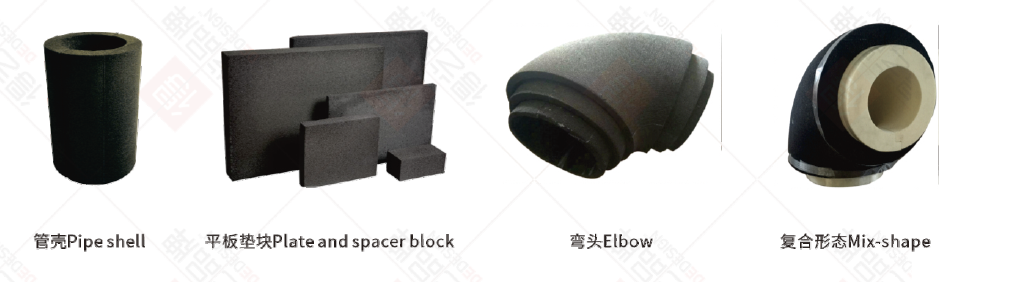

Product form


Cellular Glass Insulation Material



Why Choose Our Product


    1. Extreme Environment Performance
      Ultra-wide temperature range ensures reliability in both cryogenic and high-temperature applications

    2. Long Service Life
      Excellent weather resistance and chemical stability guarantee lasting durability

    3. Superior Safety
      Non-combustible properties provide the highest level of safety in hazardous environments

    4. Professional Support
      Comprehensive technical support from design to installation
