Single Screw Cable Protection Pipe Extrusion Line Polyethylene Tube
Single Screw Cable Protection Pipe Extrusion Line Polyethylene Tube
Single Screw Cable Protection Pipe Extrusion Line Polyethylene Tube
Single Screw Cable Protection Pipe Extrusion Line Polyethylene Tube
Specifications
Brand Name :
QINGDAO HAUSU
Model Number :
SBG50-250
Certification :
CE IOS9001
Place of Origin :
Shangdong , China
MOQ :
1 SET
Price :
USB 150-30000 PER SET
Supply Ability :
2-15 SETS PER MONTH
Delivery Time :
30-100 WORKING DAYS
Packaging Details :
NORMAL PACKAGE
Name :
Single Screw Cable Protection Pipe Extrusion Line
Features :
Disposable Bed Sheets
Voltage :
380V Or Customized
Power(W) :
According To The Model
Application :
Polyethylene Tube
Description

Single Screw Cable Protection Pipe Extrusion Line Polyethylene Tube

HDPE Cable Protection Pipe Extrusion Line:

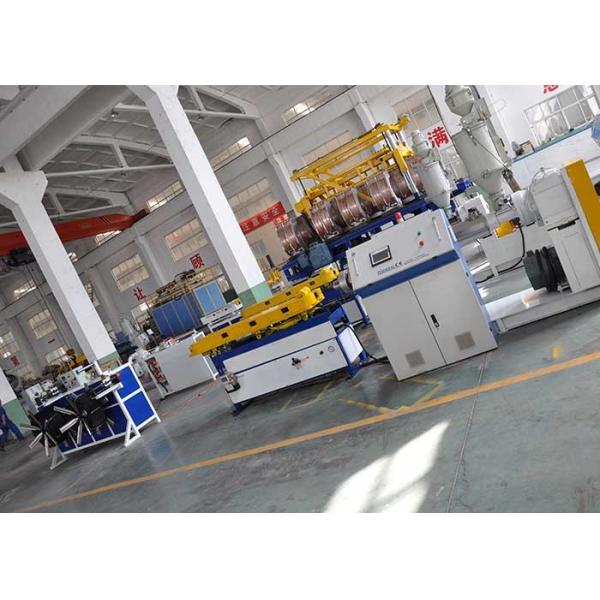

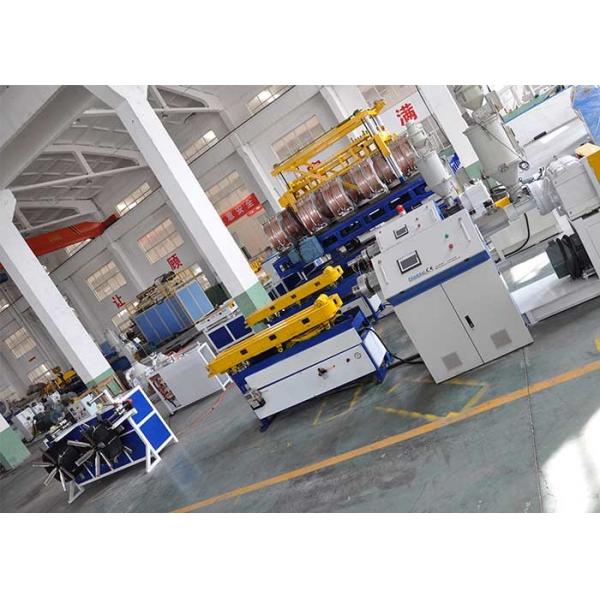

The Cable Protection Pipe Extrusion Line is composed of single screw extruder, quick extrusion die-head, gear moulding machine, nitrided forming modules and automatic winder.

The corrugated pipe forms fast and has the uniform shapes,consistent seams and smooth inner & outer wall by gear driving modules and fan cooling.


HDPE Cable Protection Pipes Extrusion Line/ Communication Cable Pipe Line Process flow:

Raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder → mound and calibrator → vacuum spray cooling tank → haul-off machine → cutting machine → winder.

HDPE Cable Protection Pipes production line design by Huasu Machinery company mainly includes single screw extruder, die, vacuum calibrating water cooling tank, haul-off machine, winding machine and cutting machine.

Single Screw Extruder:

Single screw extruder is especially used for polyethylene material which possesses effective plasticizing and high speed extrusion.


Die:

Standard designed spiral die head and reasonable channel are applicable to produce pipes with smooth inside and outside surface.

Vacuum Calibrating Water Cooling Tank:

Optimum spiral copper calibrator is equipped with pre-cooling entrance and powerful vacuum device for high speed extrusion. Unique sizing and cooling modes and special designed spraying nozzle with efficiency water cooling. It is suitable for all polyethylene material co-extrusion.


Haul-off Machine:

High accuracy, low noise and fixed length cutting.

Winding Machine:

Torque motor and gear reducer.

Main Parameters of HDPE Cable Protection/ Communication Pipe Extrusion Line:

Model Pipe Size Extruder Model Speed Screw Output
PE-2 Hole Ø20-32(mm) SJ-90/30 120(r/min) 260(kg/h)
PE-3 Hole Ø20-40(mm) SJ-90/33 120(r/min) 400(kg/h)
PE-3 Layer Ø20-63(mm) SJ-65/30 *2sets 120(r/min) 260(kg/h)

Single Screw Cable Protection Pipe Extrusion Line Polyethylene Tube
