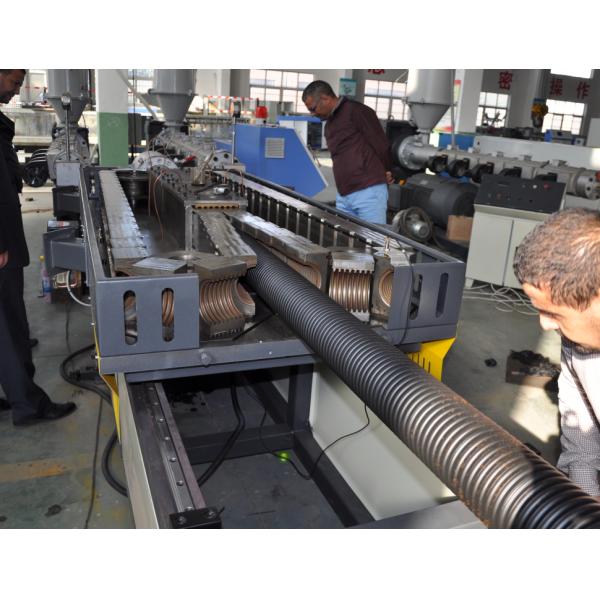

PP PE DWC Corrugated Pipe Making Machine Air Cooling Plastic Pipe Extruder Machine
PP PE DWC Corrugated Pipe Making Machine Air Cooling Plastic Pipe Extruder Machine
PP PE DWC Corrugated Pipe Making Machine Air Cooling Plastic Pipe Extruder Machine
PP PE DWC Corrugated Pipe Making Machine Air Cooling Plastic Pipe Extruder Machine
PP PE DWC Corrugated Pipe Making Machine Air Cooling Plastic Pipe Extruder Machine
PP PE DWC Corrugated Pipe Making Machine Air Cooling Plastic Pipe Extruder Machine
PP PE DWC Corrugated Pipe Making Machine Air Cooling Plastic Pipe Extruder Machine
PP PE DWC Corrugated Pipe Making Machine Air Cooling Plastic Pipe Extruder Machine
Specifications
Brand Name :
SD Huasu Brand
Model Number :
corrugated pipe extrusion machine
Certification :
CE, ISO9001:2008, UL, QS, GMP
Place of Origin :
CHINA
MOQ :
1 SET
Payment Terms :
T/T
Supply Ability :
50 sets/month
Delivery Time :
30 working days
Packaging Details :
standard package or as required
Application :
wire conduct pipes
Screw design :
single screw or conical twin
Warranty :
12 months
Screw material :
38CrMoAla
Advantage :
nitriding treatment for barrel and secrw and die head
Cooling type :
Air cooling
Mould blocks :
48 pairs (Aluminum Molds)
Description

High Speed PP PE Single Wall Double Wall Corrugated Pipe Manufacture Extruder Making Machine DWC Corrugated Pipe Making

plastic single wall corrugated pipe machine
1. plastic single wall corrugated pipe machine can produce PP PE PA PVC EAV corrugated pipe which is widely used as wire harness protective pipe for car and machine tool
2. equipped with vacuum pump, the machine can produce washing machine pipe, air conditioner pipe, hookah pipe, wash basin drain pipe,medical pipe
3.mold transmission by gear
4. water cooling, wind cooling
model
pipe diameter
extruder model
motor powder
production speed
mold pairs
optional vacumm pump
SBG-14
5-14mm
SJ-45
11kw
6-8m/min
42
SBG-32
10-32mm
SJ-50
15kw
5-12m/min
50
1.5kw
SBG-50
16-50mm
SJ-65
30kw
3-10m/min
50
2.2kw
SBG-63
16-63mm
SJ-65
30kw
3-10m/min
50
2.2kw
SBG-110
32-110mm
SJ-75
37kw
3-6m/min
72
5.5kw

Molds

Die Head

--Specification IDΦ150, Φ250mm

--Structure Using spiral split structure design, uniform and stable discharge

--Head heating power 32kw heating zone 6

--Material 40 Cr

--Die adjustment method

Adopt circular bolt adjustment, convenient and quick adjustment

Mould Block

--Specification IDΦ150, Φ250mm

--Material LY12 High quality aluminum alloy

--Quantity 48 pairs (2 pairs additionally)

--Cooling type Water Cooling
