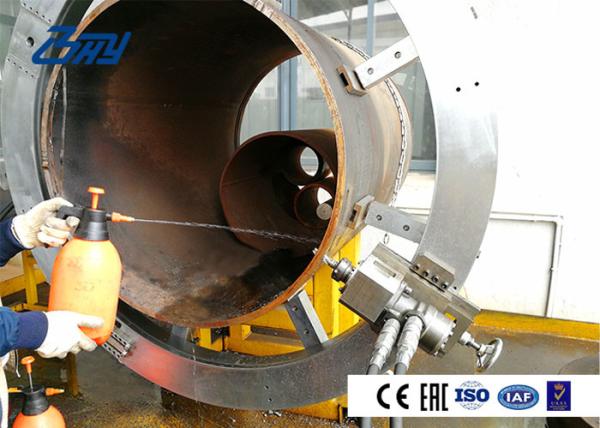

Hydraulic Pipe Cutting Beveling Tools for Process Engineering
Hydraulic Pipe Cutting Beveling Tools for Process Engineering
Hydraulic Pipe Cutting Beveling Tools for Process Engineering
Hydraulic Pipe Cutting Beveling Tools for Process Engineering
Hydraulic Pipe Cutting Beveling Tools for Process Engineering
Hydraulic Pipe Cutting Beveling Tools for Process Engineering
Hydraulic Pipe Cutting Beveling Tools for Process Engineering
Hydraulic Pipe Cutting Beveling Tools for Process Engineering
Specifications
Brand Name :
BHY
Model Number :
SFM1420H
Certification :
ISO 9001:2008, CE, CU-TR, ISO14001:2004,OHSAS 18001:2007
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
Negotiate
Payment Terms :
L/C, T/T,
Supply Ability :
1000 sets/year
Delivery Time :
30-45 work days
Packaging Details :
Aluminum case, wooden case or metal packing case
Model :
SFM1420H
Drive Mode :
hydraulic
Dimension :
1100*720*680mm
Net weight :
76kg
Brand :
Bohyar
Application :
nuclear power, thermal power, chemical plant, natural gas, boiler plant, pharmaceutical factory
Application Range (O.D.) :
14" - 20"(355.6-508mm)
Wall Th. :
≤100mm
Description

Imported Motor Hydraulic Pipe Cutting Beveling Tools for Process Engineering

Product Introduction

SFM series are portable processing equipment for cutting, beveling and end prefabrication of various pipes,

with which cutting and beveling can be conducted at the same time.

Basic Info.

Model SFM1420H
Drive Mode Hydraulic
Hydraulic Requirements 65L/min,10MPA
Application Range (O.D.) 14" - 20"
Wall Thickness ≤100mm
Net Weight 76kg
Feed Method Star wheel system
Feed 0.08mm/r
All standard accessories included

Application

■ Oil and gas field

■ Chemical plant

■ Boiler plant

■ Nuclear power & thermal power

■ Pharmaceutical factory

■ Ship building and repaire

Product Features

■ Split frame structure, can be quickly install

■ Cold Cutting and Beveling, no heat affected zones

■ Aeronautical aluminum material ensure portability

■ Low axial and radial clearance

■ Full closed bearing and driving gear system for operation safety

■ Machining OD of pipe from 2” up to 84”

Specification

■ Drive Options: Pneumatic, Hydraulic, and Electric

■ Air requirements: 2-3m³/min

■ Hydraulic requirements: 65L/min,10MPa (15.8GPM,1500PSI)

■ Electric requirements: 220V/AC 50/60Hz
■ Feed mode: Star wheel, automatically
■ Feed rate: Fixed@0.08mm per circle
■ Used for pipe material: carbon steel, alloy steel, stainless steel, duples stainless steel, nickel alloy

Hydraulic Pipe Cutting Beveling Tools for Process Engineering

Beveling type

Hydraulic Pipe Cutting Beveling Tools for Process Engineering

Models

Model

Processing

range (in)

Max wall

thickness (mm)

 Weight(kg) Drive mode
SFM0206 2"~ 6" 30 35

Pneumatic

Hydraulic

Electric
SFM0408 4"~ 8" 40 40
SFM0612 6"~12" 80 45
SFM0814 8"~14" 100 55
SFM1218 12"~18" 100 70
SFM1420 14"~20" 100 76

Electric

Hydraulic
SFM1824 18"~24" 100 123
SFM2026 20"~26" 100 130
SFM2430 24"~30" 100 142
SFM2632 26"~32" 100 150
SFM3036 30"~36" 100 159
SFM3642 36"~42" 100 179
SFM4248 42"~48" 100 198
SFM4860 48"~60" 100 642
SFM6072 60"~72" 100 730
SFM7284 72"~84" 100 820

* Processing range can be customized according to the pipe diameter.

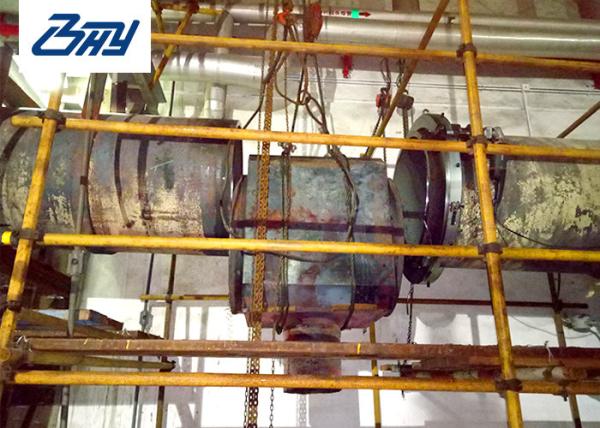

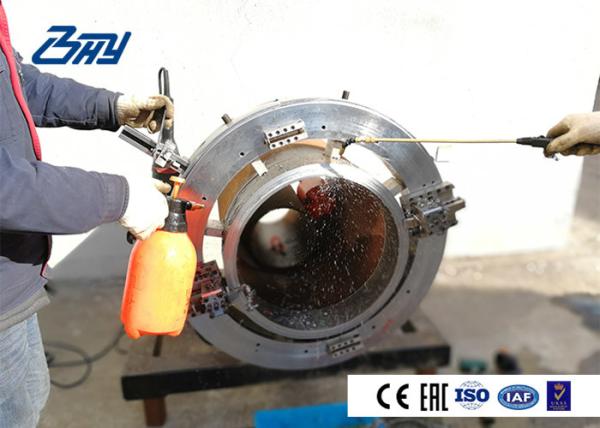

Working On Site

Hydraulic Pipe Cutting Beveling Tools for Process EngineeringHydraulic Pipe Cutting Beveling Tools for Process Engineering
