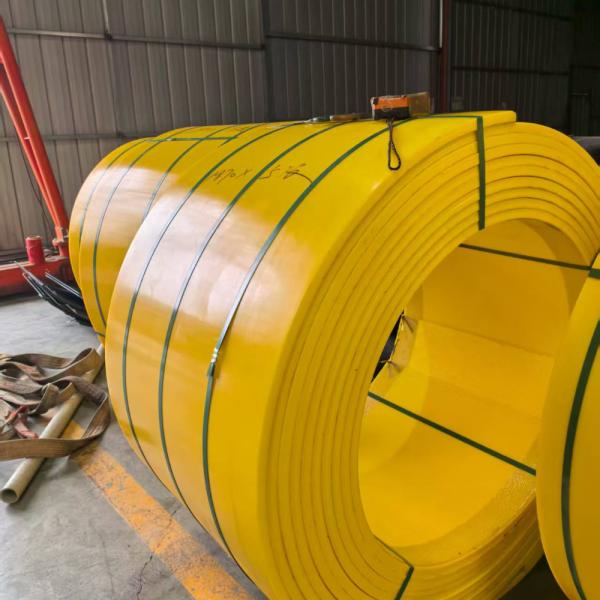

HDPE Electro Fusion Tape 60mm to 80mm for Corrugated Pipe Joints
HDPE Electro Fusion Tape 60mm to 80mm for Corrugated Pipe Joints
HDPE Electro Fusion Tape 60mm to 80mm for Corrugated Pipe Joints
HDPE Electro Fusion Tape 60mm to 80mm for Corrugated Pipe Joints
Specifications
Brand Name :
huashida
Model Number :
EN253, EN448, EN728, ISO1133, ISO8501-1. ISO9001
Certification :
CE, ISO9001:2008
Place of Origin :
qingdao,China
MOQ :
1 ton
Price :
US$1.00 - 5.00
Payment Terms :
L/C,D/A,D/P,T/T
Supply Ability :
30sets/year
Delivery Time :
60days
Application :
Pipeline Joint Closure
Transport Package :
Standard Package
HS Code :
3921909090
Connection :
Welding
Customized :
Customized
Description
Product Description

Polyethylene Electro Heating Fusion Tape is a specialized pipe connection fitting designed for reliable jointing of metal reinforced polyethylene spirally corrugated pipes, hollow wall structured HDPE pipes, and directly buried PUF pre-insulated pipes.
It is manufactured from HDPE sheets embedded with electro-fusion wires, ensuring strong bonding performance, excellent sealing, and long-term durability in underground pipeline applications, especially in anti-corrosion and pre-insulated pipe field joints.
HDPE Electro Fusion Tape 60mm to 80mm for Corrugated Pipe JointsHDPE Electro Fusion Tape 60mm to 80mm for Corrugated Pipe Joints

Features


Tailored for corrugated pipe structure with valley width from 60mm to 80mm; the narrow tape welds the pipe joint along the cutting edges.

Due to structure limitations, air-tightness may not be fully guaranteed after single-step welding.

Recommended welding method:

First, use a hand extruder to weld the cutting edges inside of the pipe.

Then, apply the narrow electro fusion tape to reinforce the joint from outside.

Our Advantages

Waterproof & Leak-Proof jointing solution.

Resists axial forces caused by ground movements.

Withstands radial forces and bending moments.

High resistance to temperature changes and thermal stress.

Matches the thickness of the main pipe insulation layer, ensuring seamless integration.

Applications

Metal reinforced polyethylene spirally corrugated pipes

Hollow wall structured HDPE pipes

Buried PUF pre-insulated pipes

Pipeline anti-corrosion and thermal insulation projects

HDPE Electro Fusion Tape 60mm to 80mm for Corrugated Pipe Joints

Product Parameters
Specification
Metal reinforced polyethylene spirally corrugated pipe diameter Size Length× Width× Thickness
DN600 2184× 50× 7
DN700 2197× 50× 7
DN800 2850× 60× 7
DN900 3200× 60× 7
DN1000 3500× 60× 7
DN1100 3650× 60× 9
DN1200 4030× 70× 9
DN1300 4432× 70× 9
DN1400 4750× 70× 9
DN1500 5000× 70× 9
DN1600 5287× 70× 9
DN1800 5915× 70× 9
DN2000 6542× 70× 9
Company Profile

Qingdao Huashida Machinery Co., Ltd is one of the top manufacturers of plastic extrusion machines in China, specialized in dealing with Steel pipe in terms of anticorrosion and insulation technology, R&D of the coating technique, design and manufacture of the equipment for coating, products and materials, researching and development of plastic extrusion equipments, especially of Vacuum Calibrating method PE insulation jacket pipe extrusion line, and PE hollow wall spiral pipe production line, PE PP sheet extrusion line, and pipe joints and welding tools such as heat shrinkable sleeve, Electro fusion sleeve etc.

Up to now, We have successfully entered the oversea markets of Russia, Iran, UAE, India, Belarus, Kazakhstan and son on. Our pipeline production line is nearly 50sets at home and abroad.
HUASHIDA Factory located in Qingdao High & New Technology Industrial Area- Qingdao Huashida industrial Park, covers an area of about 4000 square meters. We have obtained more than 10patents and many industry certifications at home and abroad. HUASHIDA company has high qualified and experienced teams for reaching& designing, manufacturing and site operation.
We have reliable products of different models because of our powerful making capacity. We can satisfy our customer's special need because of our outstanding R&D and design capacity. We can offer our user with timely and convenient techniqual support because of our perfect after-sales service.
