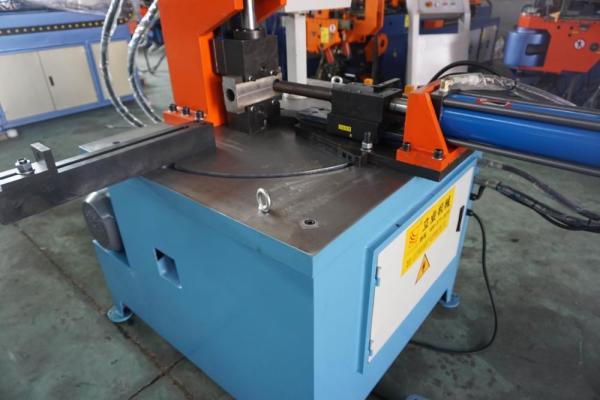

CH50 Pipe Notching Machine High-Speed Metal Tube Arc Punching Machine End Mill
CH50 Pipe Notching Machine High-Speed Metal Tube Arc Punching Machine End Mill
CH50 Pipe Notching Machine High-Speed Metal Tube Arc Punching Machine End Mill
CH50 Pipe Notching Machine High-Speed Metal Tube Arc Punching Machine End Mill
CH50 Pipe Notching Machine High-Speed Metal Tube Arc Punching Machine End Mill
CH50 Pipe Notching Machine High-Speed Metal Tube Arc Punching Machine End Mill
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
LYM-Liye Machinery
Model Number :
CH50 arc punching machine
Certification :
CE&ISO&BV
Packaging Details :
Plywood box for CH50 High-speed arc punching machine.It depends on requirement.
Supply Ability :
100 Set/Sets per Month CH50 High-speed arc punching machine
Price :
$5,500.00 - $9,000.00/sets
CNC or Not :
Normal
Condition :
New
Machine Type :
Punching Machine
Power Source :
Mechanical
Voltage :
380V 50HZ
Dimension(L*W*H) :
820*935*1630mm
Weight (T) :
0.9
Key Selling Points :
Easy to Operate
Warranty :
1 Year
Applicable Industries :
metal pipe machining enterprise
Showroom Location :
None
Marketing Type :
Ordinary Product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Bearing, Pump, Gear, Motor, Gearbox, PLC, Pressure vessel, Engine
Product name :
CH50 High-speed arc punching machine
Color :
Blue or Support customized
Motor power :
4.4kw
Adjustable angle :
20°--90°
System pressure :
12Mpa
Period of changing mould :
5-6 Minutes
Ability to punching tube (steel pipe) mm :
50*2
Type :
Punching Machines
Power supply :
Three-phase power 380V 50HZ (customizable)
OEM & ODM :
Available
After Warranty Service :
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location :
Russia
Nominal Force (kN) :
20
Port :
Shanghai
Description

CH50 High-speed metal tube arc punching machine pipe notching machine

Metal tube arc punching machine can be processed from various shapes of metal tubes, including round tubes, square tubes, rectangular tubes, elliptical tubes and so on. It can complete the metal pipe punching, cutting, marking and other processing technology, widely used in the following fields:

Construction industry: Metal pipe arc punching machine can be used for processing construction pipes and components, such as stair handrails, railings, doors and Windows.

Furniture industry: The machine can be used to process various metal pipe furniture components, such as sofa base, chair frame, etc.

Automobile industry: Metal tube arc punching machine can be used for automobile chassis, body components, exhaust pipe processing.

Machinery manufacturing industry: The machine can be used to process pipes and components of machinery manufacturing industry, such as fan impeller, compressor pipe, etc.

Product Description

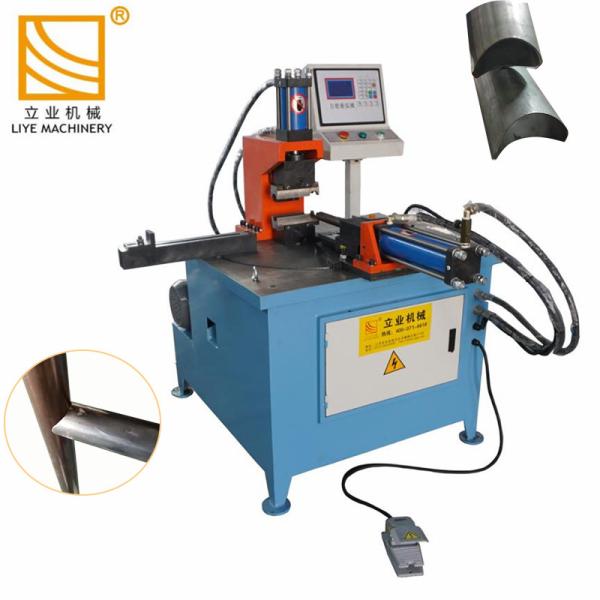

CH50 High-speed arc punching machine

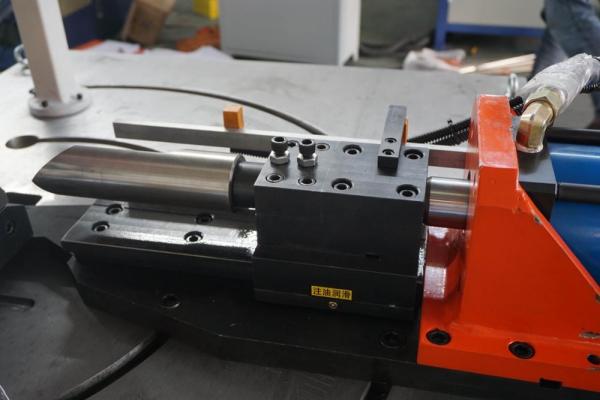

Detail:

Sample:


Specification:

Specification/model CH50 Arc punching machine
Ability to punching tube (steel pipe) mm Φ50*2
Adjustable Angle 20°—90°
Change mold time 5-6 Minutes
Motor power 4.4kw
System pressure 12Mpa
Measurement size of machine 820*935*1630mm
Weight of machine 900KG
Power supply Three-phase power 380V 50HZ (customizable)

Feature:

High-speed arc punching machine

Features

1. 20°-90° arc can be made.

2. Positive punching and reverse punching are all available.

3. Both straight tubes and elbows can be processed.

4. Compared with punching machine, it has wider processing range, safer operation, simpler mode change and lower noise.

Similar product

Company Information

Zhangjiagang Liye Machinery Co., Ltd. (hereinafter referred to as the “Company”) is specialized in manufacture of machining equipment for metal pipes. The Company covers an area of more than 10,000 m2 with total assets of over CNY 20 million. The main products include 9 series and over 100 models, i.e. pipe machining line, pipe cutter, pipe bender, pipe end forming machine, chamfering machine, gear grinding machine, riveting machine, arc machine and bending press.

Our company is an entity factory.The company has a mature team about production, product research and development, and product inspection.Our products update faster .We can design or improve new type of machine to meet different customer needs.
