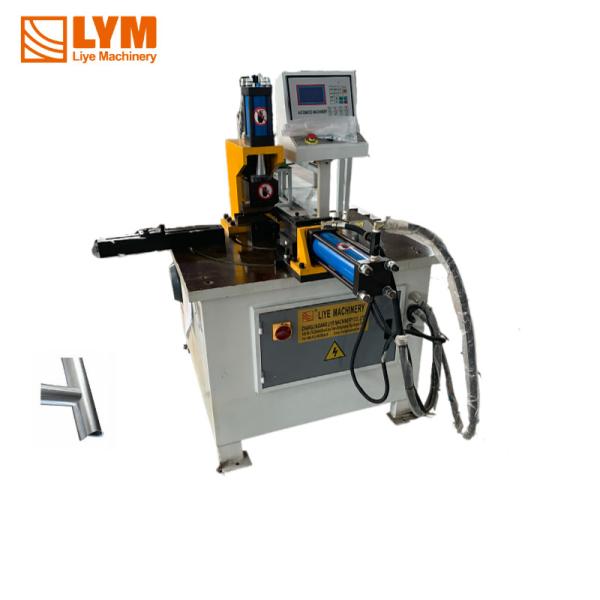

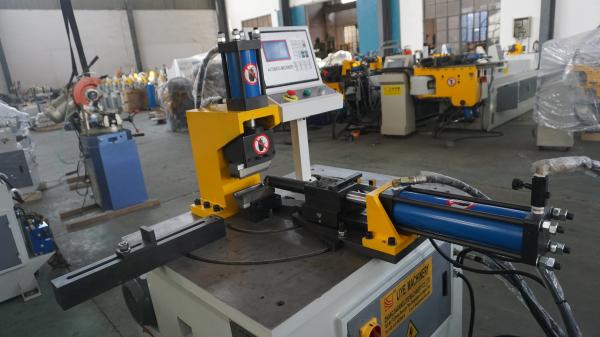

60mm Pipe Notching Machine End Mill Notcher Machine For Abrasive Metal
60mm Pipe Notching Machine End Mill Notcher Machine For Abrasive Metal
60mm Pipe Notching Machine End Mill Notcher Machine For Abrasive Metal
60mm Pipe Notching Machine End Mill Notcher Machine For Abrasive Metal
60mm Pipe Notching Machine End Mill Notcher Machine For Abrasive Metal
60mm Pipe Notching Machine End Mill Notcher Machine For Abrasive Metal
Specifications
Brand Name :
LYM
Model Number :
CH60-2
Certification :
CE,ISO,BV,TUV,SGS
Place of Origin :
CHINA
MOQ :
1 set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
50 Sets per month
Delivery Time :
20-35 work days
Packaging Details :
plywood 3400*1120*2170 mm
Max Process Capacity :
Tube Φ60 mm
Adjustable angle :
20°--90°
System pressure :
12Mpa
Period of changing mould :
5-6 Minutes
Weight :
1530KG
Measurement :
3400*920*1860 mm
Description

End mill notcher machine Abrasive metal pipe notcher machine Pipe notching machine

High-speed tube arc punching machine Features

  • 20°-90° arc can be made.
  • Positive punching and reverse punching are all available.
  • Both straight tubes and elbows can be processed.
  • Compared with punching machine, it has wider processing range, safer operation, simpler mode change and lower noise.

Metal tube arc punching machine can be processed from various shapes of metal tubes, including round tubes, square tubes, rectangular tubes, elliptical tubes and so on. It can complete the metal pipe punching, cutting, marking and other processing technology,

Because the metal tube arc punching machine has the advantages of high processing precision, high degree of automation, strong adaptability, so it is widely used in various fields of metal tube processing, in order to meet the processing needs of different industries.

Description

Brand Name: LYM
Model Number: CH40/CH50/CH80/CH100/CH120
Type AUTOMATIC DOUBLE END PUNCHING
Certification: CE/SGS/TUV/ISO
Place of Origin: China
Application Pipes,various materials such as steel, stainless
Packaging Details Packed in stretch film firstly,and then reinforced with plywood for outer packing

Capacity up to 120mm for Tube

​

Notching Part

  • Positive punching and reverse punching are all available.
  • Both straight tubes and elbows can be processed.

·20°-90° arc can be made.

Some Samples

METAL CIRCULAR SAWING MACHINE CUTTING MILD STEEL CAPACITY ( AUTOMATIC HYDRAULIC FEEDING+CUTTING SERIES)

Model Punching Capacity (mm) Adjustable Angle(°)
CH40 70 20~90
CH60 Φ60 20~90
CH80 Φ80 20~90
CH100 Φ100 20~90
CH120 Φ120 20~90
