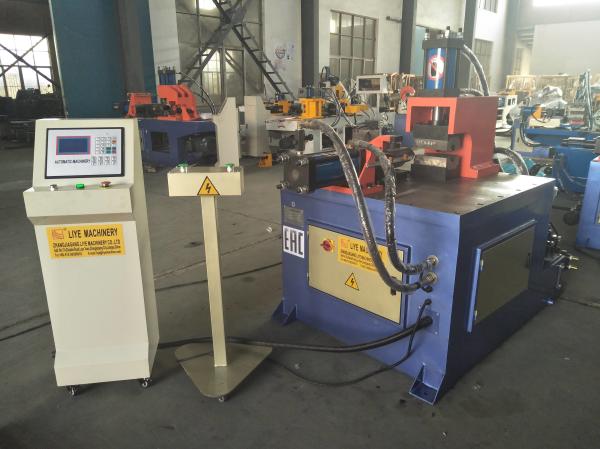

Ch50 Manual Hydraulic Steel Pipe Notching Machine For Welding Pipe
Ch50 Manual Hydraulic Steel Pipe Notching Machine For Welding Pipe
Ch50 Manual Hydraulic Steel Pipe Notching Machine For Welding Pipe
Ch50 Manual Hydraulic Steel Pipe Notching Machine For Welding Pipe
Ch50 Manual Hydraulic Steel Pipe Notching Machine For Welding Pipe
Ch50 Manual Hydraulic Steel Pipe Notching Machine For Welding Pipe
Ch50 Manual Hydraulic Steel Pipe Notching Machine For Welding Pipe
Ch50 Manual Hydraulic Steel Pipe Notching Machine For Welding Pipe
Specifications
Brand Name :
LYM-Liye Machinery
Model Number :
CH50 arc punching machine
Certification :
CE&ISO&BV
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
$5,500.00 - $9,000.00/sets
Supply Ability :
100 Set/Sets per Month CH50 High-speed arc punching machine
Delivery Time :
20-35 work days
Packaging Details :
Plywood box for CH50 High-speed arc punching machine.It depends on requirement.
CNC or Not :
Normal
Condition :
New
Machine Type :
Punching Machine
Power Source :
Mechanical
Voltage :
380V 50HZ
Dimension(L*W*H) :
820*935*1630mm
Weight (T) :
0.9
Key Selling Points :
Easy to Operate
Warranty :
1 Year
Applicable Industries :
metal pipe machining enterprise
Showroom Location :
None
Marketing Type :
Ordinary Product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Bearing, Pump, Gear, Motor, Gearbox, PLC, Pressure vessel, Engine
Product name :
CH50 High-speed arc punching machine
Color :
Blue or Support customized
Motor power :
4.4kw
Adjustable angle :
20°--90°
System pressure :
12Mpa
Period of changing mould :
5-6 Minutes
Ability to punching tube (steel pipe) mm :
50*2
Type :
Punching Machines
Power supply :
Three-phase power 380V 50HZ (customizable)
OEM & ODM :
Available
After Warranty Service :
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location :
Russia
Nominal Force (kN) :
20
Port :
Shanghai
Description

CH50 Hydraulic steel pipe notching machine for welding pipe notching machine notching tube manual pipe notcher machine

Metal tube arc punching machine can be processed from various shapes of metal tubes, including round tubes, square tubes, rectangular tubes, elliptical tubes and so on. It can complete the metal pipe punching, cutting, marking and other processing technology.

Because the metal tube arc punching machine has the advantages of high processing precision, high degree of automation, strong adaptability, so it is widely used in various fields of metal tube processing, in order to meet the processing needs of different industries.

Programmable: The machine can be programmed to achieve automatic production, reduce manual intervention, improve production efficiency;

Widely used: metal pipe arc punching machine can be widely used in construction, furniture, automobile, machinery manufacturing and other industries, to meet the processing needs of different industries for metal pipe.

Product Description

CH50 High-speed arc punching machine

Detail:

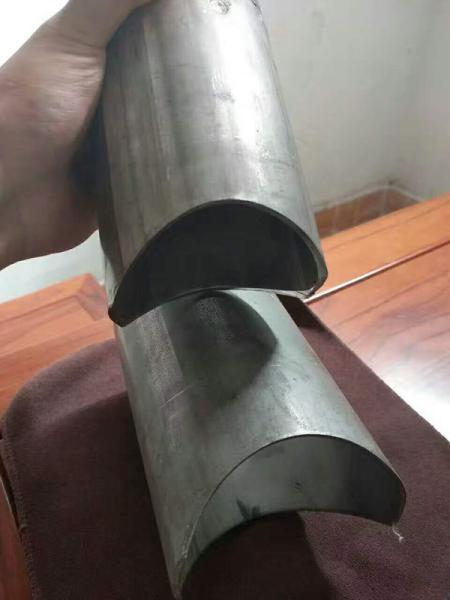

Sample:


Specification:

Specification/model CH50 Arc punching machine
Ability to punching tube (steel pipe) mm Φ50*2
Adjustable Angle 20°—90°
Change mold time 5-6 Minutes
Motor power 4.4kw
System pressure 12Mpa
Measurement size of machine 820*935*1630mm
Weight of machine 900KG
Power supply Three-phase power 380V 50HZ (customizable)

Feature:

High-speed arc punching machine

Features

1. 20°-90° arc can be made.

2. Positive punching and reverse punching are all available.

3. Both straight tubes and elbows can be processed.

4. Compared with punching machine, it has wider processing range, safer operation, simpler mode change and lower noise.

Similar product

Company Information

Zhangjiagang Liye Machinery Co., Ltd. (hereinafter referred to as the “Company”) is specialized in manufacture of machining equipment for metal pipes. The Company covers an area of more than 10,000 m2 with total assets of over CNY 20 million. The main products include 9 series and over 100 models, i.e. pipe machining line, pipe cutter, pipe bender, pipe end forming machine, chamfering machine, gear grinding machine, riveting machine, arc machine and bending press.

Our company is an entity factory.The company has a mature team about production, product research and development, and product inspection.Our products update faster .We can design or improve new type of machine to meet different customer needs.
