3km High-Precision Portable Integrated Detection Countermeasure Drone Jamming Device
3km High-Precision Portable Integrated Detection Countermeasure Drone Jamming Device
3km High-Precision Portable Integrated Detection Countermeasure Drone Jamming Device
3km High-Precision Portable Integrated Detection Countermeasure Drone Jamming Device
3km High-Precision Portable Integrated Detection Countermeasure Drone Jamming Device
3km High-Precision Portable Integrated Detection Countermeasure Drone Jamming Device
Specifications
Brand Name :
LeiKan
Model Number :
LKST-UDAM7100
MOQ :
1
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Detect and Suppress Instantly :
Achieve 360° detection, identification, and directional jamming
Comprehensive Coverage :
Covers the full mainstream frequency bands from 433 MHz to 5.8 GHz, compatible with ≥98% of commercial and DIY drones.
Precision Targeting :
30° directional beam ensures zero collateral damage to surrounding electronics.
Jamming distance :
3km
Lightweight deployment :
3.9 kg (sight included), IP66-rated, hot-swappable battery.
Ultra-long endurance :
1 hour active runtime, 60 days standby.
Description

Ⅰ. Product Presentation

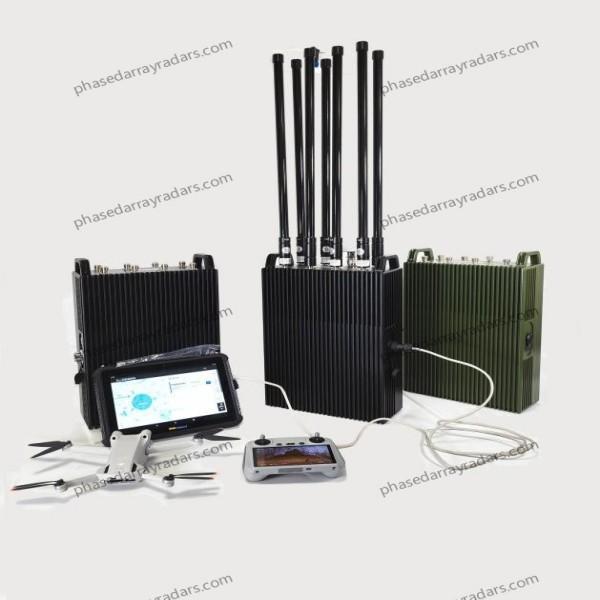

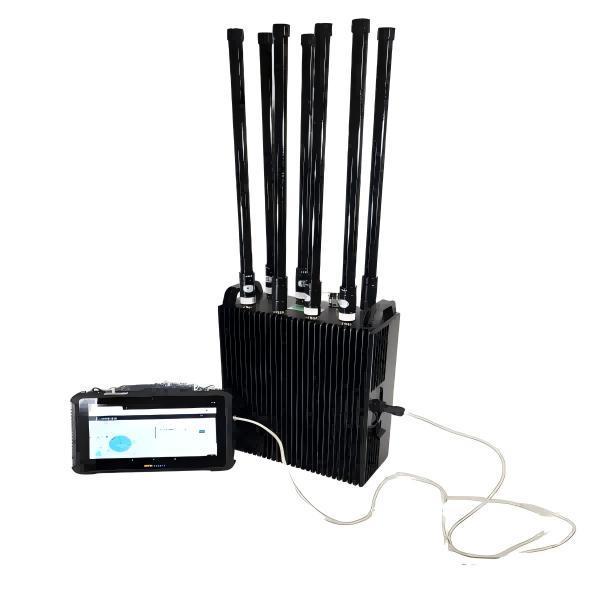

The portable UAV detection and countermeasure integrated system combines detection positioning, jamming countermeasures, and terminal control in a unified design. Powered by built-in batteries, it delivers optimal performance when deployed at elevated positions according to technical characteristics. The device is highly adaptable – portable for on-the-go use, flexible enough for temporary high-point setups, and mountable on vehicle roofs. With 10-meter remote control capabilities.

Ⅱ. Equipment Features

1. Passive Detection


Passively receives signals without emitting electromagnetic waves, detecting unauthorized drone signals including brand, model, and frequency information. Unaffected by rain, snow, or fog, providing 360° all-weather detection.


2. Drone & Pilot Tracking


Locates DJI series drones and remote control devices, identifies unique serial numbers, and displays real-time coordinates (latitude, longitude), orientation, distance, speed, and altitude.


3. Comprehensive Database


Recognizes most other models available on the market,DIY drones and WiFi-enabled models.


4. Unattended Monitoring


Enables automated drone defense management. The control platform initiates interference upon detecting unauthorized drones, allowing customizable duration settings.


5. Long-range Alert


Detects up to 3km in unobstructed environments, covering over 95% of commercial drone models.


6. Broadband Strike:


Utilizes high-speed digital scanning technology and high-power RF amplification with omnidirectional antennas to simultaneously jam multiple drones from various directions, forcing them to return or land.


Ⅲ. Product Specifications

Parameter Name

Parameter Value

Detect and identify drone types

most other models available on the market, including DIY racing drones and WiFi drones Positionable

Drone Models

DJI Mavic, Air, Mini, FPV, Avata, and other series

Detection Frequency Bands

70MHz~6GHz

Detection range

Up to 3km, depending on the environment

Number of targets detectable simultaneously

≥20 targets

Continuous detection time

≥8h

Azimuth error

≤3°(RMS)

Positioning accuracy

≤10m

Detection success rate

≥99%

Response time

≤3s

Countermeasure Mode

Radio Frequency Interference

Countermeasure Target

Drone video transmission, flight control link, navigation signal Countermeasure

Countermeasure Frequency Bands

900MHz, 1.5GHz, 2.4GHz, 5.8GHz

Countermeasure Distance

1 km (varies depending on the drone model)

Countermeasure Range

Omnidirectional 360°

Size

280mm*380mm*120mm

Weight

≤13kg

Battery

Built-in replaceable battery

Endurance time

Detection ≥8h, interference ≥1h

Charging time

≤6h

Total power consumption

Detection on: 55W, interference on: 500W

Telecontrol

10 meters remote control

Working temperature

-40~65℃

Relative humidity

5%-100%

Atmospheric pressure

70kPa-106kPa

Protection level

IP56
