Specifications
Brand Name :
Lei Kan
Model Number :
LKXW-SR132
Maximum Detectable Range :
≥ 20km (fishing boat or speedboat)
Beam Width :
Horizontal: 1.2° Vertical: 25°
Azimuth Coverage :
360°
Weight :
≤36kg
Description

Ⅰ. Product Functions

The navigation radar is designed to detect both moving and stationary targets at sea. By utilizing the electromagnetic wave reflection characteristics of surface objects, the radar suppresses sea clutter and processes the reflected signals to obtain accurate information such as target distance, bearing, speed, echo intensity, and tracking trajectory.

360 ° All Solid State Low-Power High-Precision 20km Coastal Surveillance Radar All-Weather




Ⅱ. Main Technical Specifications

Item

Performance Parameter

Operating Mode

Solid-state pulse compression (azimuth mechanical scan)

Operating Frequency Band

X-band

Maximum Detection Range

≥ 20 km (for fishing boats or speedboats)

Minimum Detection Range

≤ 100 m

Azimuth Coverage

360°

Beamwidth

Horizontal: 1.2°Elevation: 25°

Range Accuracy

≤ 10 m or 1% of range whichever is greater

Azimuth Accuracy

≤ 1°

Data Update Rate

≥ 0.4 Hz

Power Consumption & Tx Power

Power consumption: ≤ 200 W Transmit power: 25 W ±10% (under any transmit condition) – max 10% duty cycle

Target Capacity

100 targets

Data Interface

RJ45 / 1×100 Mbps Ethernet (UDP protocol)

Operating Environment

Operating temperature: –25°C to +55°C Relative humidity: 93% RH at +40°C

Protection rating: IP66

Includes protection against rain dust sand moisture salt mist and mold

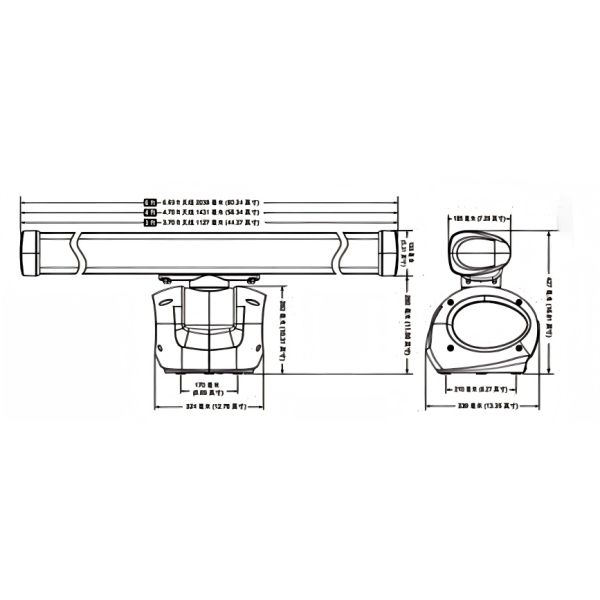

Dimensions

Antenna: 2100 × 135 mm

Rotator: 324 × 339 × 262 mm

Control box: 385 × 230 × 114 mm

Weight

System (after unpacking): ≤ 36 kg




Ⅲ. Project Demonstration



360 ° All Solid State Low-Power High-Precision 20km Coastal Surveillance Radar All-Weather360 ° All Solid State Low-Power High-Precision 20km Coastal Surveillance Radar All-Weather360 ° All Solid State Low-Power High-Precision 20km Coastal Surveillance Radar All-Weather360 ° All Solid State Low-Power High-Precision 20km Coastal Surveillance Radar All-Weather



Ⅳ. Company Presentation

360 ° All Solid State Low-Power High-Precision 20km Coastal Surveillance Radar All-Weather




Ⅴ. Service Support

360 ° All Solid State Low-Power High-Precision 20km Coastal Surveillance Radar All-Weather
