20KM Solid-State Navigation Coastal Surveillance Radar Tracking Object
20KM Solid-State Navigation Coastal Surveillance Radar Tracking Object
Specifications
Brand Name :
Lei Kan
Model Number :
LKXW-SR132
Work system :
Solid-state implementation of pulse compression technology (azimuthal scanning)
Maximum Detectable Range :
≥ 20km (fishing boat or speedboat)
Range Accuracy :
≤ 10m or 1% range, whichever is greater
Obtain Information :
Distance, azimuth, speed, reflection intensity
Description

Ⅰ. Product Functions and Applications

The radar is capable of detecting both moving and stationary targets at sea. By utilizing the electromagnetic wave reflection characteristics of surface targets and filtering out sea clutter and other interference, the radar processes the reflected signals to obtain accurate information on target range, bearing, speed, and reflection intensity, as well as to track the target's movement trajectory.

Ⅱ. Main Technical Specifications

Item

Performance Parameter

Operating Mode

Solid-state pulse compression (azimuth mechanical scan)

Operating Frequency Band

X-band

Maximum Detection Range

≥ 20 km (for fishing boats or speedboats)

Minimum Detection Range

≤ 100 m

Azimuth Coverage

360°

Beamwidth

Horizontal: 1.2°Elevation: 25°

Range Accuracy

≤ 10 m or 1% of range whichever is greater

Azimuth Accuracy

≤ 1°

Data Update Rate

≥ 0.4 Hz

Power Consumption & Tx Power

Power consumption: ≤ 200 W Transmit power: 25 W ±10% (under any transmit condition) – max 10% duty cycle

Target Capacity

100 targets

Data Interface

RJ45 / 1×100 Mbps Ethernet (UDP protocol)

Operating Environment

Operating temperature: –25°C to +55°C Relative humidity: 93% RH at +40°C

Protection rating: IP66

Includes protection against rain dust sand moisture salt mist and mold

Dimensions

Antenna: 2100 × 135 mm

Rotator: 324 × 339 × 262 mm

Control box: 385 × 230 × 114 mm

Weight

System (after unpacking): ≤ 36 kg

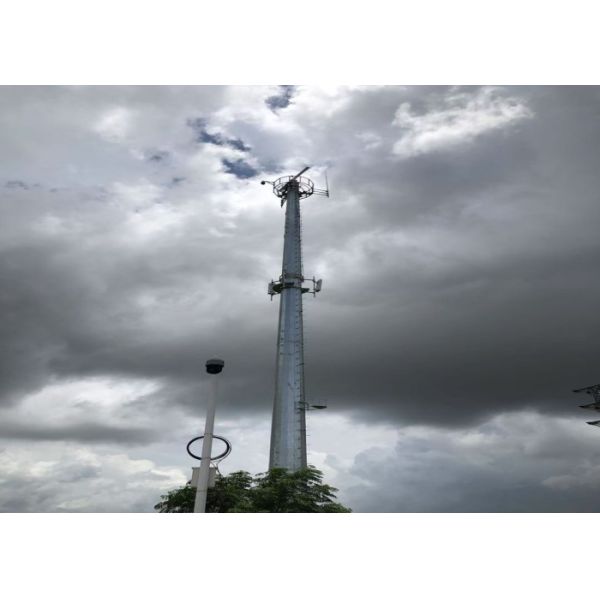

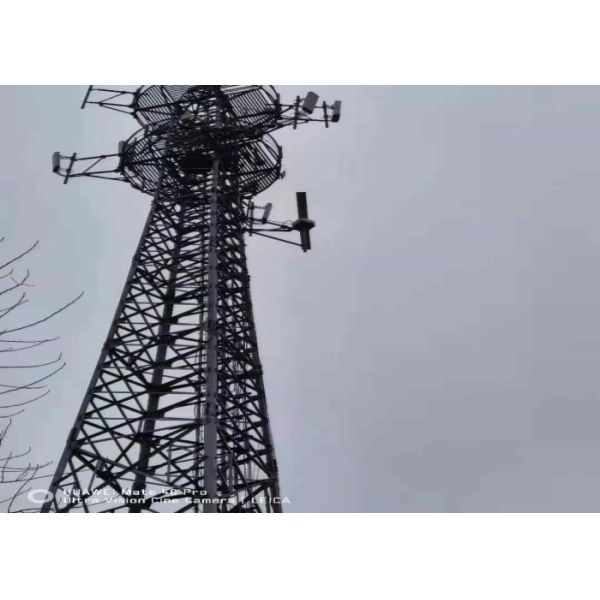

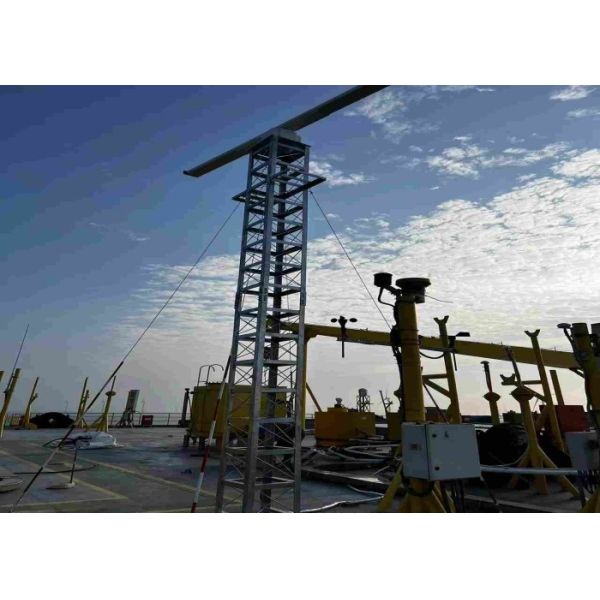

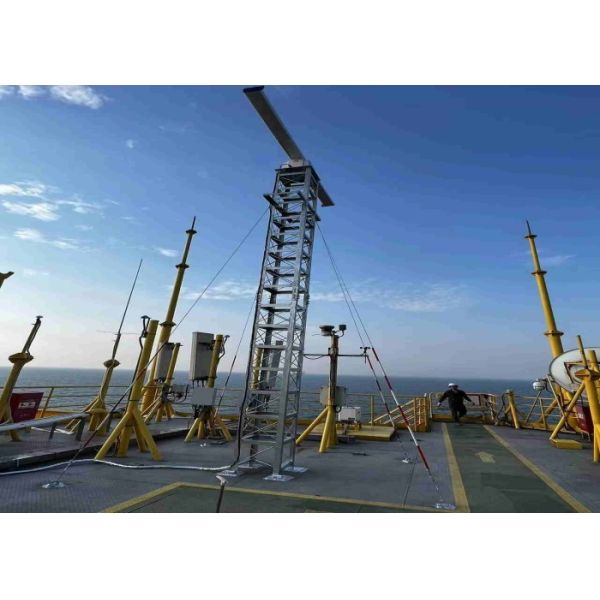

Ⅲ. Project Demonstration



20KM Solid-State Navigation Coastal Surveillance Radar Tracking Object20KM Solid-State Navigation Coastal Surveillance Radar Tracking Object20KM Solid-State Navigation Coastal Surveillance Radar Tracking Object20KM Solid-State Navigation Coastal Surveillance Radar Tracking Object
