Automatic Tablet Manufacturing Machine Overwrapping Tablet Packing Line 50pcs/Minute
Automatic Tablet Manufacturing Machine Overwrapping Tablet Packing Line 50pcs/Minute
Specifications
Wrapping Module :
PVA/PVC film
Supply Ability :
15 Sets per Month
Film Roll Diameter :
350mm
Userinterface :
Touchscreen HMI
Maintenance :
Easy maintenance with modular design
Afrer sale service :
24hours in 7 days online support
Delivery Time :
20 business days
Packaging Details :
Sea-worthy fumigation-free plywood cases with steel frame reinforcement, individual module crating, vacuum-sealed components, and climate indicators
Voltage :
380V/3P 50Hz
Place of Origin :
Shanghai,China
Payment Terms :
T/T
Customizationoptions :
Available based on product and packaging requirements
Powersupply :
220V/380V, 50Hz/60Hz
MOQ :
1 Set
Certification :
CE
Counting Module :
Multi-channel electronic counting
Brand Name :
TIWIN INDUSTRY
Model Number :
TWP-300
Cartoning Module :
Automatic side-load cartoner with leaflet insertion
Industry :
Pharmaceutical,food,nutrition
Line Speed :
50-300pcs/minute
Description

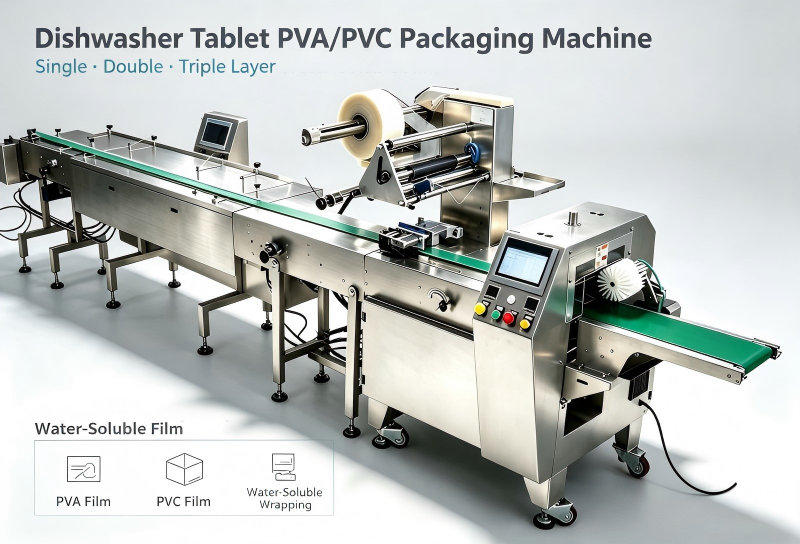

TWP-300 Fully Automatic Dishwasher Tablet Overwrapping Packing Production Line
TWP-300 Fully Automatic Dishwasher Tablet Overwrapping Packing Production Line 50-300 pcs/minute

The TWP-300 is a fully integrated production line that combines dishwasher tablet feeding, PVA/PVC overwrapping, multi-channel electronic counting, and automatic cartoning into a single synchronized system. With a central PLC controlling all four modules at up to 300 packs per minute, this line delivers end-to-end automation from bulk tablet infeed to finished retail cartons.

Technical Specifications
Model TWP-300
Line Speed 50-300 BPM synchronized
Wrapping Module PVA/PVC film, back seal
Counting Module Multi-channel electronic counting
Cartoning Module Automatic side-load with leaflet/booklet insertion
Voltage 380V/3P 50Hz
Key Features
  • Full Line Integration: Four synchronized modules (feeding, wrapping, counting, cartoning) controlled by a single central PLC with unified HMI, eliminating integration complexity and inter-module communication issues.
  • Synchronized Speed Control: Central motion controller coordinates all servo axes across modules, automatically adjusting individual station speeds to maintain balanced throughput and prevent bottlenecks.
  • Module Isolation Design: Individual modules can be bypassed or isolated for maintenance while remaining modules continue production, maximizing line availability and reducing scheduled downtime impact.
  • Unified Recipe Management: Single HMI stores complete line recipes covering all module parameters, enabling product
Frequently Asked Questions
What is included in the TWP-300 production line?
The standard TWP-300 includes a tablet conveying and sorting system, PVA/PVC dual-mode overwrapping module, multi-channel electronic counting station with reject, and an automatic side-load cartoning machine with leaflet insertion. Optional modules include checkweigher, case packer, and palletizer.
Can we integrate the TWP-300 with our existing tablet press machines?
Yes, the TWP-300 feeding module includes a standard infeed conveyor interface compatible with all major tablet press manufacturers. We provide custom interface engineering and buffer accumulation solutions to ensure seamless upstream integration.
What is the installation and commissioning process?
We provide full turnkey installation including on-site supervision by our engineering team, mechanical installation, electrical connection, PLC programming and parameter setup, production trial runs, and operator training. Typical installation and commissioning takes 5-7 working days on-site.
