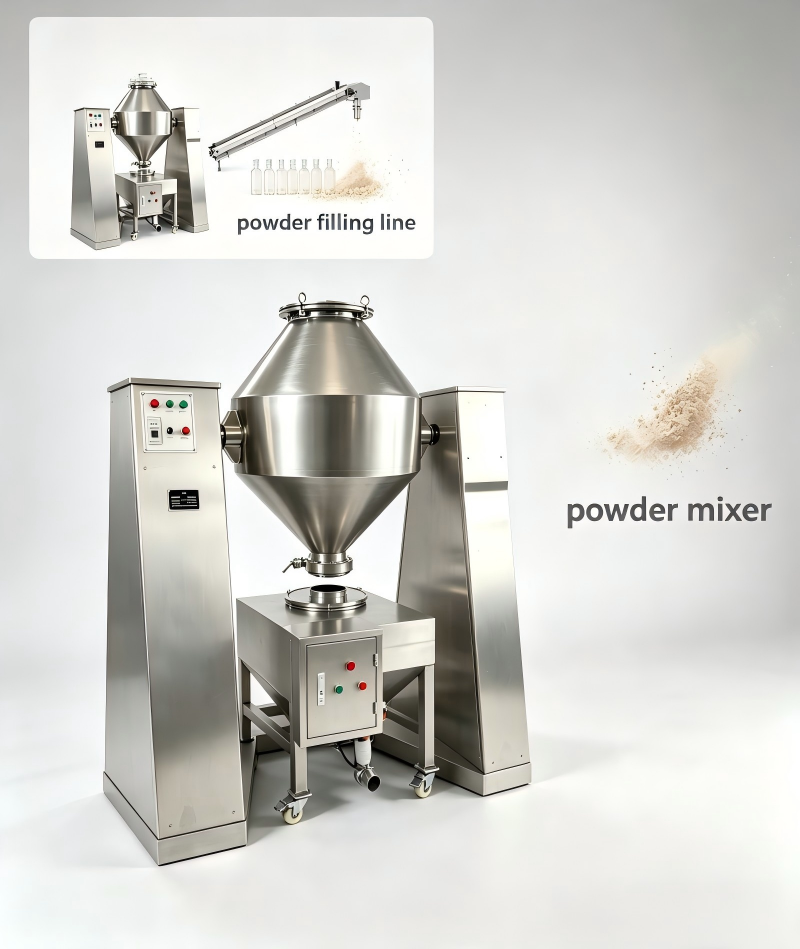

Double Cone Powder Mixer W-300 Pharmaceutical Dry Granule Blender 300L 150kg Batch CE Certified
Double Cone Powder Mixer W-300 Pharmaceutical Dry Granule Blender 300L 150kg Batch CE Certified
Specifications
Cylinder Rotation Speed :
12rpm
MOQ :
1 Set
Packaging Details :
Fumigation-free plywood export packaging
Model Number :
W-300
Full Volume :
300L
Brand Name :
TIWIN INDUSTRY
Certification :
CE
Feature :
Double Cone Powder Mixer
Capacity :
120-150kg per batch
Industry :
Pharmaceutical,food,nutrition
Payment Terms :
T/T
Supply Ability :
30 Sets per Month
Powersupply :
220V/380V, 50Hz/60Hz
Place of Origin :
Shanghai,China
Delivery Time :
20 business days
Material :
SUS304 stainless steel
Machine Dimension :
1800x850x1750mm
Userinterface :
Touchscreen HMI
Afrer sale service :
24hours in 7 days online support
Customizationoptions :
Available based on product and packaging requirements
Maintenance :
Easy maintenance with modular design
Main Motor Power :
3kw
Description
Double Cone Powder Mixer
Product Overview

The double cone powder mixer W-300 is engineered for pharmaceutical-grade dry powder and granule blending. With 300L capacity, 120-150kg batch size, and 99% mixing uniformity, it provides consistent and homogeneous powder mixing critical for tablet compression and capsule filling processes in GMP-compliant manufacturing.

Working Principle

Powders and granules are loaded into the W-300 double-cone chamber which rotates at 12rpm around its axis. The continuous tumbling, splitting, and recombining action creates three-dimensional powder movement throughout the entire volume. With no internal agitators, the process is gentle on fragile granules while achieving rapid and complete blending uniformity.

Technical Specifications
ModelW-300
Full Volume300L
Max. Capacity per Batch120-150kg (based on material)
Cylinder Rotation Speed12rpm
Main Motor Power3kw
Machine Dimension1800x850x1750mm
MaterialSUS304 stainless steel
Key Features
  • Double cone vessel with two symmetrical cylinders for longitudinal and transverse material flow
  • Achieves mixing uniformity of over 99% for dry powders and granules
  • Configurable for vacuum feeding and sealed state operation
  • No internal transmission mechanism ensures cleanliness and hygiene
  • No dead corners design meets GMP requirements for pharmaceutical production
  • Gentle tumbling action minimizes particle breakage and material segregation
  • Optimized for pharmaceutical powder blending with 99% mixing uniformity
  • 300L capacity ideal for pilot and medium-scale pharmaceutical production batches
  • SUS304 stainless steel construction meets pharmaceutical GMP requirements
