380V PVA Package Wrapping Machine PVC Wrapping Machine OEM
380V PVA Package Wrapping Machine PVC Wrapping Machine OEM
Specifications
Model Number :
TWP-300
Capacity :
40-300 bags/minute
Payment Terms :
T/T
Bag cutting type :
Zigzag or straight cutter, with replacement cutter and cutter seat
Powersupply :
220V/380V, 50Hz/60Hz
Afrer sale service :
24hours in 7 days online support
MOQ :
1 Set
Machine dimension :
5,250x920x1,500mm
Maintenance :
Easy maintenance with modular design
Delivery Time :
20 business days
Power :
7.1 kw
Industry :
Pharmaceutical,food,nutrition
Packaging Details :
Fumigation-free plywood
Feature :
Dishwasher Tablet PVA And PVC Wrapping Machine
Userinterface :
Touchscreen HMI
Certification :
CE
Bag type :
Back sealing
Place of Origin :
Shanghai,China
Specification :
1 pcs per bag
Customizationoptions :
Available based on product and packaging requirements
Brand Name :
TIWIN INDUSTRY
Suitable for packing type :
PVA/PVC tablet wrapping
Description

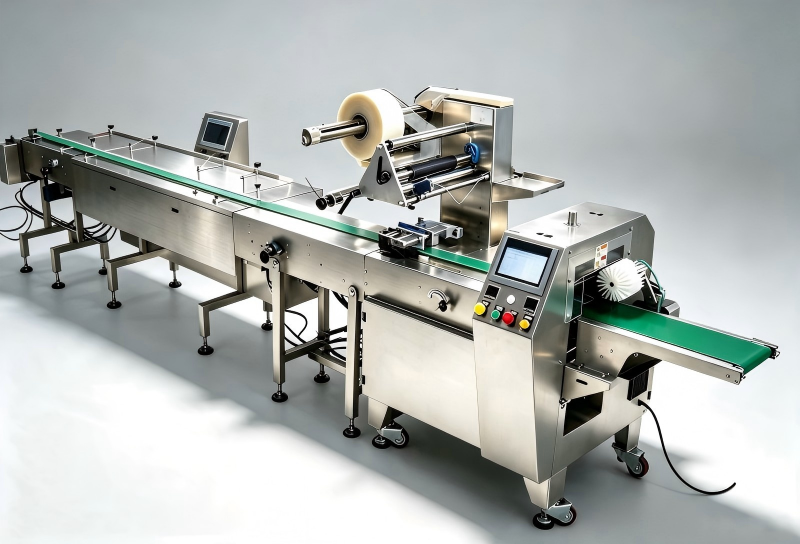

Dishwasher Tablet PVA And PVC Wrapping Machine

This automatic pillow packing machine is designed for dishwasher tablets using pillow bag packaging. With a speed range of 40-300 pieces per minute, it can integrate with tablet press machines to create fully automatic production lines.

The machine features comprehensive systems for tablet arranging, feeding, wrapping, sealing, and cutting. It handles complex film materials with back sealing capability and can be customized to accommodate specific product sizes and specifications.

Technical Specifications
Model TWP-300
Packing Speed 40-300 bags/minute
Product Dimensions Length: 45-50mm, Width: 20-50mm, Height: 5-20mm
Film Roll Diameter 320mm
Bag Type Back sealing with zigzag cutter
Voltage 220V/1P 50Hz
Motor Power 7.1 kW
Machine Weight 330kg
Machine Dimensions 5,250 × 920 × 1,500mm
Key Features
  • Automatic Film Change System: Advanced module that switches film rolls without stopping production, significantly improving efficiency and ensuring continuous operation.
  • Servo-Technology System: Enables quick and easy adjustments for packaging different product sizes with precision.
  • User-Friendly Touch Panel: Easy operation with multiple temperature control stations ensuring excellent packaging quality and strong, aesthetically pleasing seals.
  • Integrated Production Line: Works seamlessly with feeding conveyor systems for continuous automatic production, arrangement, feeding, and sealing without interruptions, reducing labor costs and improving efficiency.
  • Precision Control: High-sensitivity optical electric color mark tracking with digital input cut position for accurate sealing and cutting operations.
Frequently Asked Questions
What products can this pillow packing machine package?
This machine is designed for packaging dishwasher detergent blocks, tablets, and similar solid cleaning products in pillow-style bags. It is also suitable for products with similar shapes and sizes.
What packaging film is compatible with the machine?
The machine supports various heat-sealable films, including BOPP, CPP, laminated films, and other composite packaging materials, depending on your product and sealing requirements.
What is the packaging speed of the machine?
Packaging speed typically ranges from 40 to 300 packs per minute, depending on the size of the detergent block, film type, and machine configuration.
Can the machine be customized for different product sizes?
Yes. The machine can be customized to accommodate different detergent block dimensions, bag sizes, and special packaging requirements. Adjustable settings also allow quick changeovers between products.
Does the machine ensure accurate sealing and product protection?
Yes. The machine features precise temperature control and stable sealing technology to produce strong, airtight seals that help protect the detergent blocks from moisture and contamination.
What after-sales support do you provide?
We provide installation guidance, operation training, technical support, spare parts supply, and online troubleshooting. Customized maintenance services are also available to ensure long-term, reliable machine performance.
