Ribbon Blender
Ribbon Blender
Ribbon Blender
Ribbon Blender
Ribbon Blender
Ribbon Blender
Specifications
Effective Volume :
2000L
Total Power :
22kw
(R) :
534
Brand Name :
TIWIN INDUSTRY
Userinterface :
Touchscreen HMI
Total Weight :
1300kg
Height(TH) :
2453
Length(TL) :
3080
Height(BH) :
1274
Payment Terms :
T/T
Width(TW) :
1625
Width(BW) :
1068
Industry :
Pharmaceutical,food,nutrition
Place of Origin :
Shanghai,China
Certification :
CE
Power Supply :
3P AC208-415V 50/60Hz
Turning Speed :
46rpm
Customizationoptions :
Available based on product and packaging requirements
Length(BL) :
2000
Fully Volume :
2475L
Powersupply :
220V/380V, 50Hz/60Hz
Afrer sale service :
24hours in 7 days online support
Maintenance :
Easy maintenance with modular design
Model :
TW-JD-2000
Delivery Time :
20 business days
Description

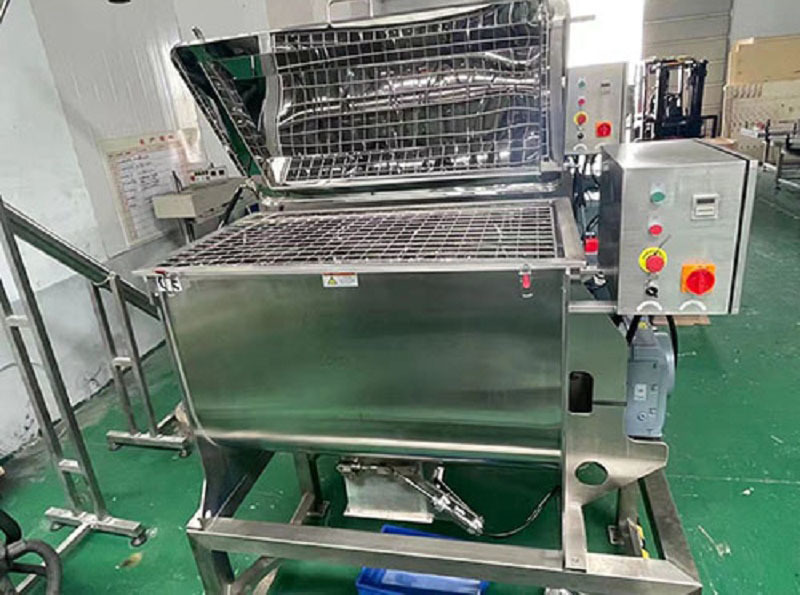

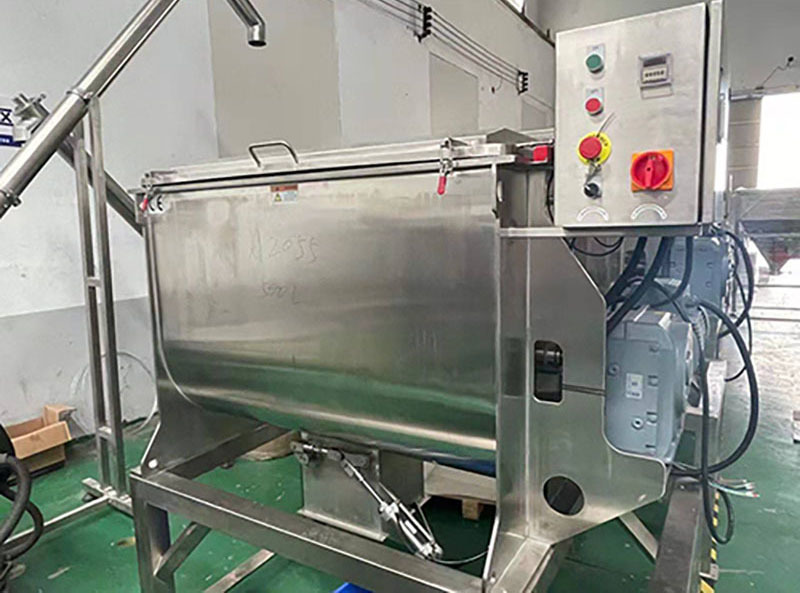

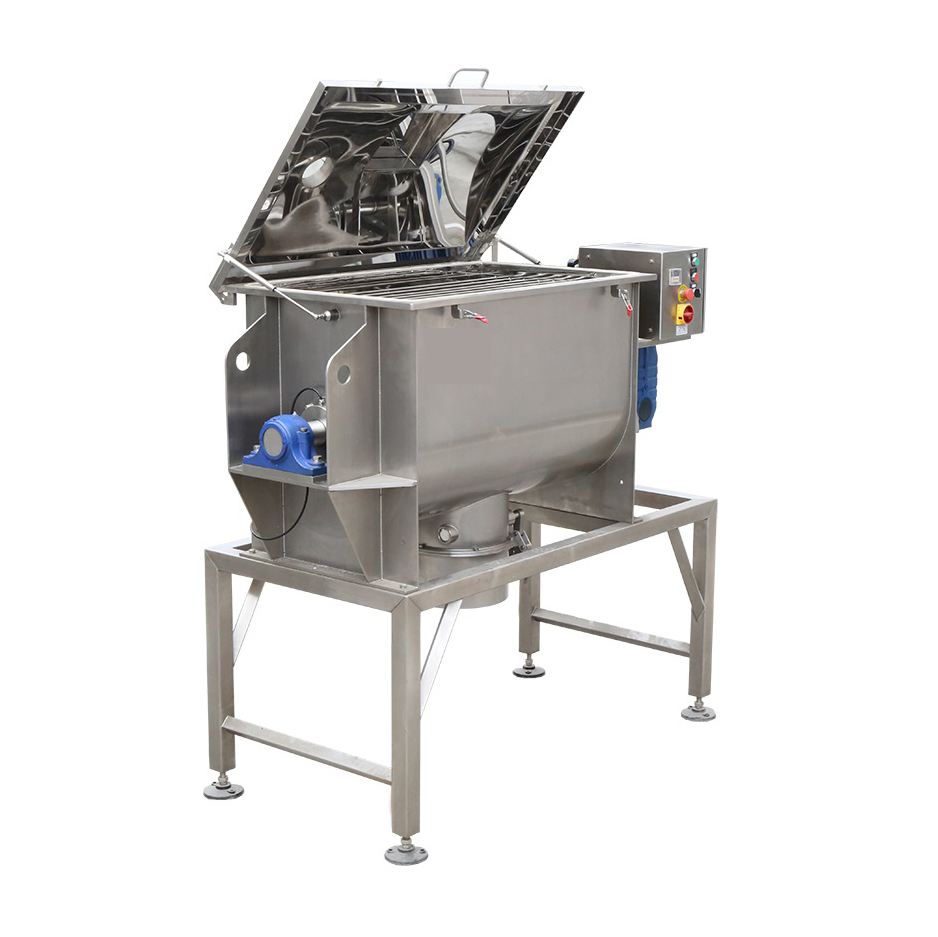

Ribbon Blender
The Ribbon Blender is a highly efficient horizontal mixing machine designed for the uniform blending of powders, granules, and low-viscosity materials. Equipped with a double helical ribbon agitator, the machine provides fast and homogeneous mixing while ensuring gentle material handling. It is widely used in the food, chemical, nutraceutical, feed, and cosmetic industries.
Working Principle
The Ribbon Blender features a U-shaped horizontal mixing trough fitted with an inner and outer double helical ribbon. During operation, the outer ribbon conveys the material from both ends toward the center, while the inner ribbon moves the material from the center toward both ends. This three-dimensional convective mixing action ensures rapid, uniform blending with excellent mixing efficiency.
Key Features
  • Double helical ribbon design for fast and uniform mixing
  • Suitable for powders, granules, and low-viscosity pastes
  • High mixing efficiency with short batch times
  • Gentle mixing with minimal material degradation
  • Large loading capacity and high production efficiency
  • Easy cleaning and maintenance
  • Stainless steel contact parts meeting GMP requirements
  • Stable operation with low noise and low energy consumption
Technical Specifications
Model Effective Volume Total Power Total Weight
TW-JD-200 200L 4kw 250kg
TW-JD-300 300L 5.5kw 350kg
TW-JD-500 500L 7.5kw 500kg
TW-JD-1000 1000L 11kw 700kg
TW-JD-1500 1500L 15kw 1000kg
TW-JD-2000 2000L 22kw 1300kg
