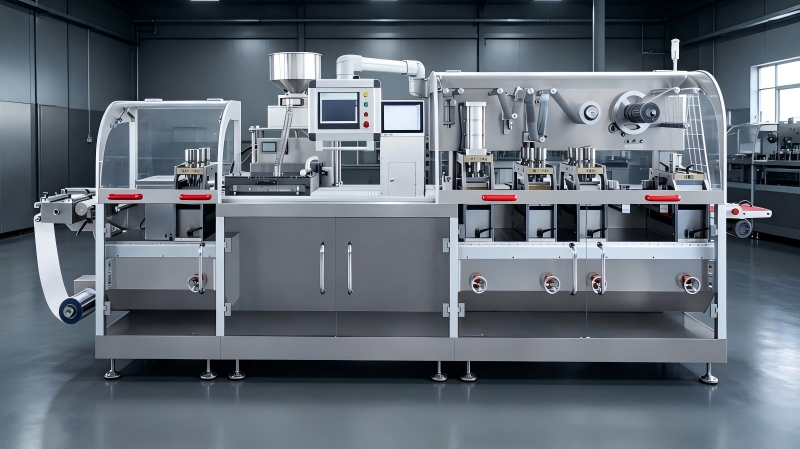

High Speed Capsule Blister Packaging Machine 260mm Capsule Tablet CE ABB Servo
High Speed Capsule Blister Packaging Machine 260mm Capsule Tablet CE ABB Servo
Specifications
Features :
High Speed Blister Packing Machine
Certification :
CE
Power :
2.2KW
Userinterface :
Touchscreen HMI
Maintenance :
Easy maintenance with modular design
Afrer sale service :
24hours in 7 days online support
Traction Stroke :
Standard 20-120mm
Customizationoptions :
Available based on product and packaging requirements
Powersupply :
220V/380V, 50Hz/60Hz
Place of Origin :
Shanghai,China
Payment Terms :
T/T
Packaging Details :
Fumigation-free plywood export packaging
MOQ :
1 Set
Capacity :
About 120 blisters/minute
Brand Name :
TIWIN INDUSTRY
Material :
SUS304 stainless steel
Model Number :
DPP260
Industry :
Pharmaceutical,food,nutrition
Supply Ability :
30 Sets per Month
Delivery Time :
20 business days
Packing Material :
ALU-PVC/ALU-ALU
Description
High Speed Blister Packing Machine
High Speed Blister Packing Machine DPP260 120 Blisters Per Minute Capsule Tablet CE ABB Servo

High speed blister packing machine delivering up to 120 blisters per minute at 35 strokes per minute. DPP260 with ABB servo-driven indexing, German PLC, and 4-piece simultaneous output for maximum blister packaging throughput in pharmaceutical production.

Working Process
  1. PVC/PVDC/PET/PS/cold-forming aluminum foil unwinding
  2. Material preheating station
  3. Blister forming
  4. Vibration rail-type feeder
  5. Missing-material detection (vision system) - optional
  6. Heat sealing mechanism (with print registration function)
  7. Batch number embossing mechanism (independent)
  8. Tear-line perforation/creasing station (independent)
  9. Servo-driven web indexing (with aluminum alloy guide rails)
  10. Punching/cutting
  11. Finished product conveyor
  12. Waste packing material collection
Technical Specifications
Model DPP260
Blanking Frequency 10-35 times/minute
Max. Capacity 4 pcs each time
Capacity Approximately 120 blisters/minute
Forming Area Max. 260x120mm
Traction Stroke Standard 20-120mm (Customized up to 160mm)
Blister Size 58x110mm
Each Blister Product Quantity Customized
Packing Material PVC: 0.15-0.5mm x 280mm
ALU Foil: 0.02-0.035mm x 280mm
Dialysis paper: 50-100g x 280mm
Inner Diameter of Roll 70 to 76mm
Heating Consumption Forming heating: 1.5KW / Sealing heating: 1.5KW
Main Motor Power 2.2KW
Air Pump Capacity >0.2m³ (Self-provided) pressure: 0.4-0.6Mpa
Mold Cooling Tap water or circulating water: 30L/h
Countertop Length 1500mm
Machine Dimension 4500x850x1800mm (LxWxH)
Net Weight 3000kg
Key Features
  • PLC with HMI interface for easy operation and monitoring
  • Equipped with safety guarding device with upward-opening safety covers
  • German-brand PLC system with durable splined main shaft design (8-groove, 45mm diameter)
  • ABB servo motor for smooth, precise material feeding with intelligent stroke adjustment
  • PVC and aluminum foil conveying systems controlled by proximity sensors
  • Aluminum foil supply shaft with air-expanding design for convenient operation
  • Precision-machined cantilevered worktable from single block of aluminum alloy
  • SUS304 stainless steel exterior compliant with GMP standards
  • Quick-release guide-rail mounting mechanism for fast mold changes
  • Rear-mounted main motor and drive components for reduced noise and clean appearance
  • Independent batch number embossing mechanism
  • Tear-line perforation and creasing station
  • Optional vision system for missing-material detection
  • Servo-driven web indexing with aluminum alloy guide rails
  • 35 strokes per minute with 4 pieces per stroke for maximum throughput
  • ABB servo-driven indexing for high-speed precision material advancement
  • Optimized heating and cooling for consistent blister forming at high speeds
Frequently Asked Questions
Q: What is the maximum output speed?
The DPP260 achieves up to 120 blisters per minute at 35 strokes per minute with 4 pieces output per stroke, making it ideal for high-volume pharmaceutical packaging operations.
Q: Does speed affect blister quality?
No. The ABB servo-driven indexing and precise temperature control for forming and sealing stations ensure consistent blister quality even at maximum operating speed.
Q: What factors affect the actual output speed?
Output depends on blister size, cavity depth, material type, and number of cavities per stroke. The machine operates between 10-35 strokes per minute based on these parameters.
